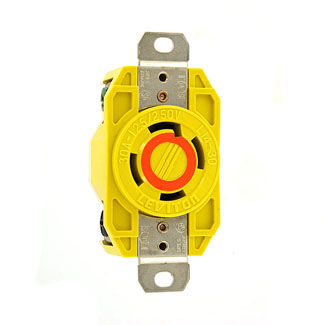

Leviton® V-0-Max™ 27CM-20 Single Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Custom_Product_Images_Illustration
Leviton® V-0-Max™ 27CM-20 Single Locking Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
SKU702703
MFGR #27CM-20
Your Cost: $85.14/ea
List: Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 27CM-20 Connection Back Wired;Side Wired Country of Origin MX Currency USD Depth 1.31 in Dielectric Strength 2000 (Min.) V Environmental Conditions Flammability (Rated V-0 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 9.7500 in Height [Metric] 10.4775 cm Length 13.3750 in Length [Metric] 4.6050 cm Material PBT Mounting Box NEMA Rating L15-30R Number Of Poles 3 Phase 3 ° C Size 3.63 H x 1.69 W x 1.31 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42;UL Fed Spec WC-596;UL Listed 498 Standards ANSI C-73, NEMA WD-1, WD-6, NOM 057 Certified, CSA C22.2 No. 42, UL Federal Specification WC-596, UL Listed 498 , RoHS Complaint Temperature Rating -40 to +60 °C Type Flush Mount Locking Receptacle UNSPSC 39121406 UPC 11 07847710819 UPC 12 078477108192 Width 1.88 in Width [Metric] 4.7625 cm Wire Size 14-8 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Color Yellow Number of Wires 4 Voltage Rating 250 V Commercial UL 94 V0 flammability Box mounting Back and side wire connection 2000 VAC minimum dielectric strength Flush mounting Single-piece contacts for superior conductivity Nickel-plated solid brass strap for a lower resistance grounding path and superior corrosion resistance Valox® construction for endurance and resistance to impact and abuse Triple head brass #10 terminal screws for faster, more secure installation Corrosion resistant 14 to 8 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 27CM-20 |
| Connection | Back Wired;Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.31 in |
| Dielectric Strength | 2000 (Min.) V |
| Environmental Conditions | Flammability (Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 9.7500 in |
| Height [Metric] | 10.4775 cm |
| Length | 13.3750 in |
| Length [Metric] | 4.6050 cm |
| Material | PBT |
| Mounting | Box |
| NEMA Rating | L15-30R |
| Number Of Poles | 3 |
| Phase | 3 ° C |
| Size | 3.63 H x 1.69 W x 1.31 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42;UL Fed Spec WC-596;UL Listed 498 |
| Standards | ANSI C-73, NEMA WD-1, WD-6, NOM 057 Certified, CSA C22.2 No. 42, UL Federal Specification WC-596, UL Listed 498 , RoHS Complaint |
| Temperature Rating | -40 to +60 °C |
| Type | Flush Mount Locking Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847710819 |
| UPC 12 | 078477108192 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 14-8 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 4 |
| Voltage Rating | 250 V |
| Commercial |
| UL 94 V0 flammability |
| Box mounting |
| Back and side wire connection |
| 2000 VAC minimum dielectric strength |
| Flush mounting |
| Single-piece contacts for superior conductivity |
| Nickel-plated solid brass strap for a lower resistance grounding path and superior corrosion resistance |
| Valox® construction for endurance and resistance to impact and abuse |
| Triple head brass #10 terminal screws for faster, more secure installation |
| Corrosion resistant |
| 14 to 8 AWG |
