Leviton®

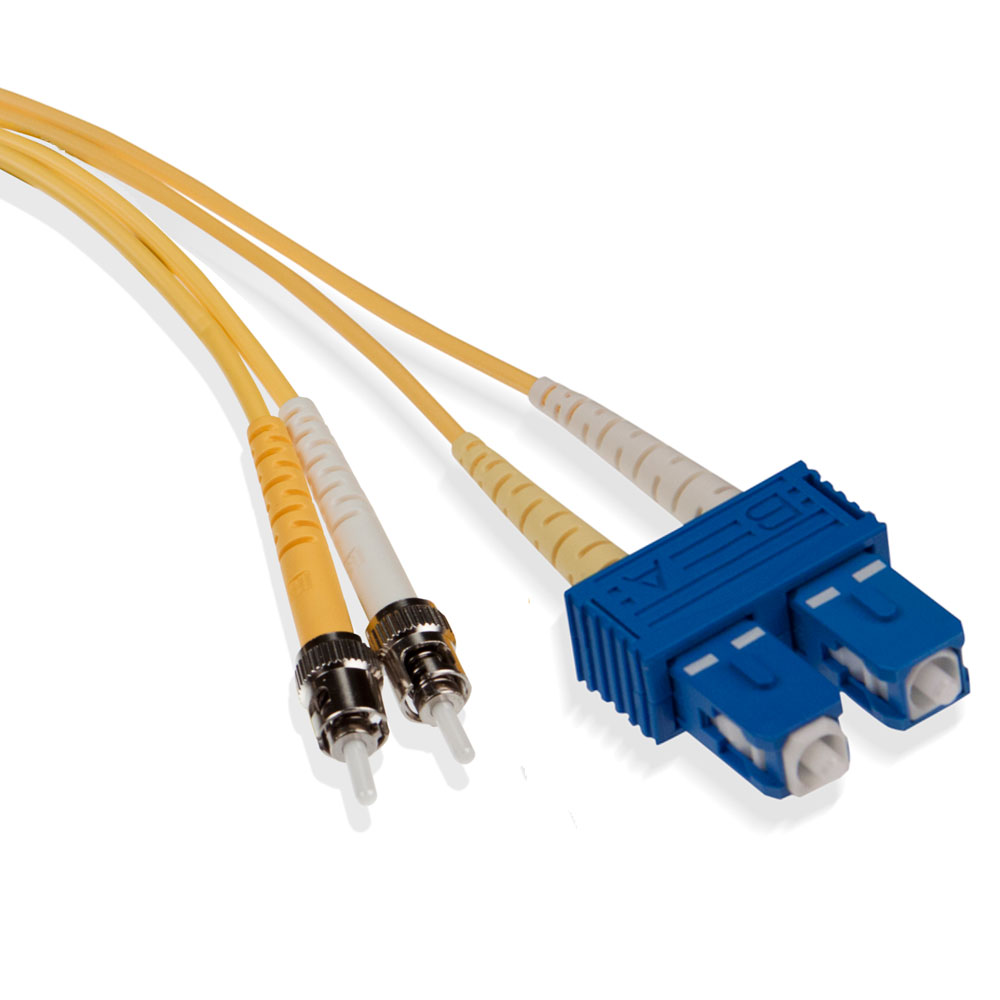

Leviton® UPDCT-S02 Economy Duplex Singlemode Fiber Optic Patch Cord, 2 Fiber, 9 um Core, 2 m L, Blue/Yellow/White
Custom_Product_Images_Illustration
Leviton®
Leviton® UPDCT-S02 Economy Duplex Singlemode Fiber Optic Patch Cord, 2 Fiber, 9 um Core, 2 m L, Blue/Yellow/White
SKU679327
MFGR #UPDCT-S02
Your Cost: $28.95/ea
Multi-mode patch cords shall meet an optical return loss equal to or better than -25 dB per mated pair and single mode equal to or better than -50 dB for UPC polish or -55 dB for APC polish. Insertion loss shall not exceed 0.4 dB per mated pair for multi-mode and 0.35 dB for single mode. The patch cords shall be compliant with ANSI/ TIA-568 C.3.
Multi-mode patch cords shall meet an optical return loss equal to or better than -25 dB per mated pair and single mode equal to or better than -50 dB for UPC polish or -55 dB for APC polish. Insertion loss shall not exceed 0.4 dB per mated pair for multi-mode and 0.35 dB for single mode. The patch cords shall be compliant with ANSI/ TIA-568 C.3.
Amperage Rating Yellow (Cable Jacket);Blue (Connectors and Adapters);Yellow and White (Boots) Application Structured Cabling Systems, Industrial ARRA Compliant C Attenuation 0.4 @ 1310 NM;0.3 @ 1550 NM DB Attenuation Rating 0.4 dB at 1310 N-M/0.3 dB at 1550 N-M ° C Buy American Compliant C Catalog Number UPDCT-S02 Clad Dimension 125 µm Connection SC-ST Connector Type SC to ST Construction Duplex Configuration Country of Origin CN Currency USD EU RoHS Indicator C Fiber Type Single Mode Gross Weight Per Pack 0.1200 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 10.2400 in Height [Metric] 2.5400 cm Jacket Color Yellow Length [Metric] 12.7000 cm Series Economy Standard TIA-568-C.3;RoHS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantTIA-568-C.3 Strands SC-ST Sub Brand Economy Series Temperature Rating -40 to +75 °C Transmission Distance >5, 000 1310 NM (100Mb, 1GbE);>10, 000 1310 NM (10GbE) m Type Fiber Optic Patch Cord UNSPSC 26121607 UPC 11 07847758874 UPC 12 078477588741 Width 7.00 in Width [Metric] 17.7800 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Color Yellow (Cable Jacket);Blue (Connectors and Adapters);Yellow and White (Boots) Conductor Type Structured Cabling Systems, Industrial Core Dimension 9 µm Fiber Count 2 Length 15.7500 in Voltage Rating Duplex Configuration Structured Cabling Systems, Industrial Available in Duplex Configurations, Industry Standard Connector Options, Industry Standard Connector and Test Requirements, All Cables 100 % Optically Tested, Many Fiber Options Om1/Om2/Om3/Os2, All Cables are Pre Labeled and individually Bagged, Made in China Industry standard connector options All cables 100% optically tested All cables are pre-labeled and individually bagged Industry standard connector and test requirements Blue connectors/adapters, yellow and white boots Blue connectors/adapters, yellow and white boots >20 lb/89 N cable retention 9/125 um (OS2) OFNR duplex fiber All cables 100% optically tested 0.4 dB/km at 1310 nm, 0.3 dB/km at 1550 nm
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | Yellow (Cable Jacket);Blue (Connectors and Adapters);Yellow and White (Boots) |
| Application | Structured Cabling Systems, Industrial |
| ARRA Compliant | C |
| Attenuation | 0.4 @ 1310 NM;0.3 @ 1550 NM DB |
| Attenuation Rating | 0.4 dB at 1310 N-M/0.3 dB at 1550 N-M ° C |
| Buy American Compliant | C |
| Catalog Number | UPDCT-S02 |
| Clad Dimension | 125 µm |
| Connection | SC-ST |
| Connector Type | SC to ST |
| Construction | Duplex Configuration |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | C |
| Fiber Type | Single Mode |
| Gross Weight Per Pack | 0.1200 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 10.2400 in |
| Height [Metric] | 2.5400 cm |
| Jacket Color | Yellow |
| Length [Metric] | 12.7000 cm |
| Series | Economy |
| Standard | TIA-568-C.3;RoHS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantTIA-568-C.3 |
| Strands | SC-ST |
| Sub Brand | Economy Series |
| Temperature Rating | -40 to +75 °C |
| Transmission Distance | >5, 000 1310 NM (100Mb, 1GbE);>10, 000 1310 NM (10GbE) m |
| Type | Fiber Optic Patch Cord |
| UNSPSC | 26121607 |
| UPC 11 | 07847758874 |
| UPC 12 | 078477588741 |
| Width | 7.00 in |
| Width [Metric] | 17.7800 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Color | Yellow (Cable Jacket);Blue (Connectors and Adapters);Yellow and White (Boots) |
| Conductor Type | Structured Cabling Systems, Industrial |
| Core Dimension | 9 µm |
| Fiber Count | 2 |
| Length | 15.7500 in |
| Voltage Rating | Duplex Configuration |
| Structured Cabling Systems, Industrial |
| Available in Duplex Configurations, Industry Standard Connector Options, Industry Standard Connector and Test Requirements, All Cables 100 % Optically Tested, Many Fiber Options Om1/Om2/Om3/Os2, All Cables are Pre Labeled and individually Bagged, Made in China |
| Industry standard connector options |
| All cables 100% optically tested |
| All cables are pre-labeled and individually bagged |
| Industry standard connector and test requirements |
| Blue connectors/adapters, yellow and white boots |
| Blue connectors/adapters, yellow and white boots |
| >20 lb/89 N cable retention |
| 9/125 um (OS2) OFNR duplex fiber |
| All cables 100% optically tested |
| 0.4 dB/km at 1310 nm, 0.3 dB/km at 1550 nm |
