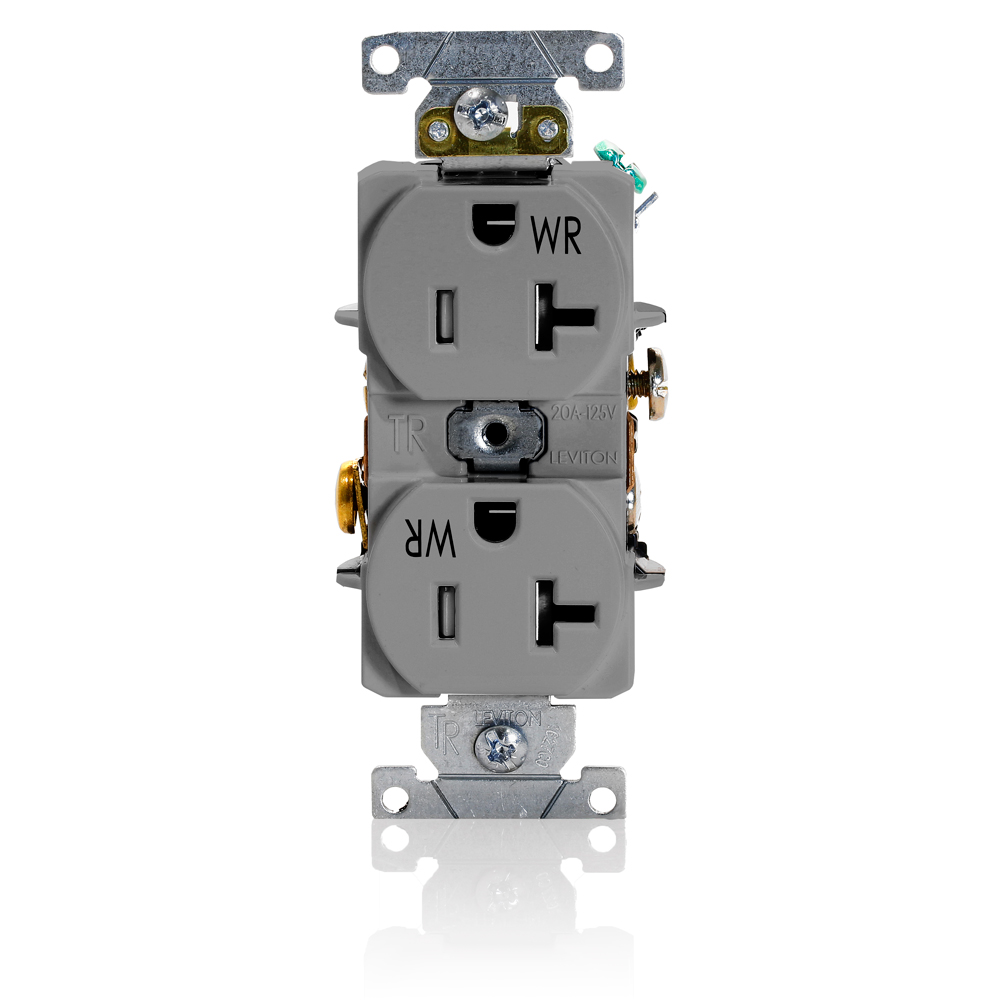

Leviton® TWR20-GY Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Leviton® TWR20-GY Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU929841
MFGR #TWR20-GY
$/ea
Plug into safety with Leviton® line of tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades. Leviton® Weather Resistant devices are ruggedly constructed to seal out moisture to meet all your outdoor needs.
Plug into safety with Leviton® line of tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades. Leviton® Weather Resistant devices are ruggedly constructed to seal out moisture to meet all your outdoor needs.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number TWR20-GY Country of Origin MX Currency USD EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 10.6400 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.0000 in Horsepower 1 hp Length 13.0000 in Material Nylon (Body) NEMA Rating NEMA 5-20R Number Of Poles 2 Standard NEMA (WD 1, WD 6);ANSI C 73;UL943 Class A (E48380);UL498HG (E13399);CSA C22.2 No 42 (LR-57811);NOM (057);Flammability (Rated V-2 per UL94) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73UL943 Class A File No. E48380UL 498HG File No. E13399CSA C22.2 No. 42 File No. LR57811NOM 057UL94 V-2 Flammability Rating Temperature Rating -40 to 60 °C Terminal Type Side Wired Type Duplex Receptacle UNSPSC 39111503 UPC 11 07847750630 UPC 12 078477506301 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Commercial Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc. will be locked out TR symbol on residential receptacles assures they meet the 2008 NEC requirement TR selection includes Residential and Commercial Grade receptacles Heavy duty construction offers long, trouble-free service life Screw mounting Self grounding Tamper resistant 2000 V (min) dielectric strength UL 94 V-2 flammability rating Industrial grade Nickel plated brass strap 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TWR20-GY |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 10.6400 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.0000 in |
| Horsepower | 1 hp |
| Length | 13.0000 in |
| Material | Nylon (Body) |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standard | NEMA (WD 1, WD 6);ANSI C 73;UL943 Class A (E48380);UL498HG (E13399);CSA C22.2 No 42 (LR-57811);NOM (057);Flammability (Rated V-2 per UL94) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73UL943 Class A File No. E48380UL 498HG File No. E13399CSA C22.2 No. 42 File No. LR57811NOM 057UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39111503 |
| UPC 11 | 07847750630 |
| UPC 12 | 078477506301 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc. will be locked out |
| TR symbol on residential receptacles assures they meet the 2008 NEC requirement |
| TR selection includes Residential and Commercial Grade receptacles |
| Heavy duty construction offers long, trouble-free service life |
| Screw mounting |
| Self grounding |
| Tamper resistant |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Industrial grade |
| Nickel plated brass strap |
| 14 - 10 AWG |
