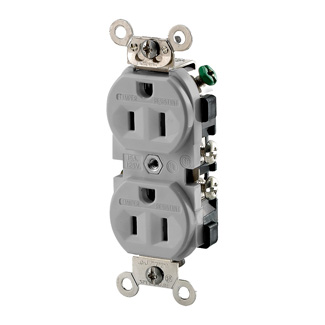

Leviton® TWR15-GY Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Leviton® TWR15-GY Traditional Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
SKU993583
MFGR #TWR15-GY
Your Cost: $11.77/ea
List: Leviton offers a large selection of 15 and 20 Amp commercial spec grade receptacles, including Decora® devices* available in a wide variety of colours, wiring options and other features. Leviton's commercial receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long-lasting service life and are a cost-saving alternative to the industrial devices.
Leviton offers a large selection of 15 and 20 Amp commercial spec grade receptacles, including Decora® devices* available in a wide variety of colours, wiring options and other features. Leviton's commercial receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long-lasting service life and are a cost-saving alternative to the industrial devices.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number TWR15-GY Connection Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) V Dimensions 4.06 in H x 1.53 in W x 1.1 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 11.1100 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.5000 in Horsepower 1/2 hp Length 12.7500 in Material Nylon Mounting Wall Box NEMA Rating 5-15R Number Of Poles 2 Phase 1 Size 46 H x 1.53 W x 1.11 D in Standard NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73CSA C22.2 No. 42 152105NOM 057UL 498 E13399UL 94 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847739203 UPC 12 078477392034 Width 1.53 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Gray Number of Wires 3 Voltage Rating 125 V Commercial Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box Self grounding Brass triple wipe 0.04 thick line contacts material Brass 10-32 terminal screws Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 100 cycles OL at 150 percent rated current Duplex, tamper and weather resistant 14 - 10 AWG wire size Delrin® acetal shutter mechanism
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TWR15-GY |
| Connection | Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 4.06 in H x 1.53 in W x 1.1 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 11.1100 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.5000 in |
| Horsepower | 1/2 hp |
| Length | 12.7500 in |
| Material | Nylon |
| Mounting | Wall Box |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.53 W x 1.11 D in |
| Standard | NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73CSA C22.2 No. 42 152105NOM 057UL 498 E13399UL 94 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847739203 |
| UPC 12 | 078477392034 |
| Width | 1.53 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
| Self grounding |
| Brass triple wipe 0.04 thick line contacts material |
| Brass 10-32 terminal screws |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 100 cycles OL at 150 percent rated current |
| Duplex, tamper and weather resistant |
| 14 - 10 AWG wire size |
| Delrin® acetal shutter mechanism |
