Leviton®

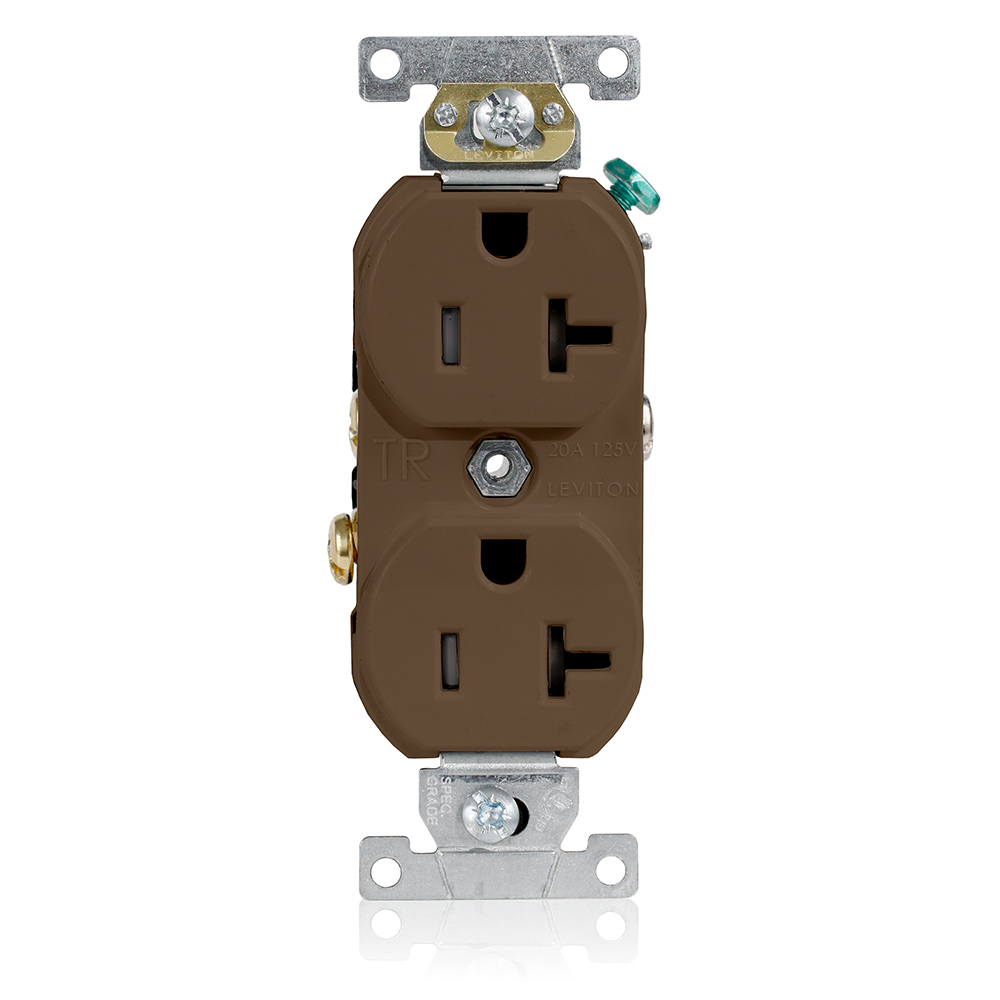

Leviton® TCR20 Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton®
Leviton® TCR20 Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU812905
MFGR #TCR20
Your Cost: $4.38/ea
List: Plug into safety with Leviton® tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential, Commercial, Industrial and Hospital Grades.
Plug into safety with Leviton® tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential, Commercial, Industrial and Hospital Grades.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number TCR20 Country of Origin MX Currency USD Dimensions 1.36 in L x 1.2 in W x 46 in H EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Height 8.7500 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 12.2500 in Length [Metric] 4.7625 cm Material Thermoplastic NEMA Rating NEMA 5-20R Number Of Poles 2 Standard NEMA (WD 1, WD 6);ANSI (C73);NOM Certified (057);cULus (E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057cULus File No. E13399 Style Straight Blade Temperature Rating -40 to 60 °C Terminal Type Side Wired Type Duplex Receptacle UNSPSC 39111503 UPC 11 07847765532 UPC 12 078477655320 Width 1.38 in Width [Metric] 3.4925 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 V Commercial 10-Year Limited Warranty, Country of Origin Mexico, Self Grounding, Tamper-Resistant, Self Grounding Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box 2000 V (min) dielectric strength UL 94 V-2 flammability rating Zinc plated steel strap Thermoplastic base 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TCR20 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.36 in L x 1.2 in W x 46 in H |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 12.2500 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standard | NEMA (WD 1, WD 6);ANSI (C73);NOM Certified (057);cULus (E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD-1/WD-6ANSI C-73NOM 057cULus File No. E13399 |
| Style | Straight Blade |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39111503 |
| UPC 11 | 07847765532 |
| UPC 12 | 078477655320 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| 10-Year Limited Warranty, Country of Origin Mexico, Self Grounding, Tamper-Resistant, Self Grounding |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Zinc plated steel strap |
| Thermoplastic base |
| 14 - 10 AWG |
