Leviton®

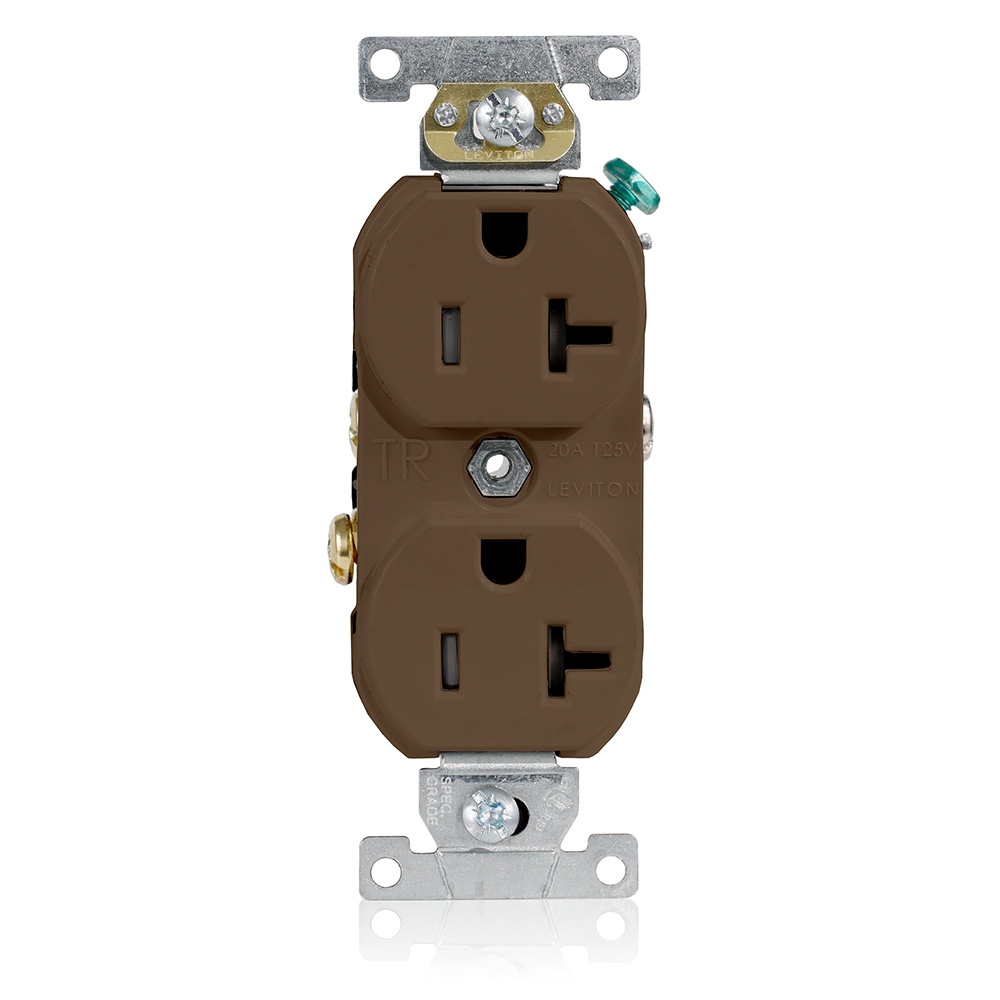

Leviton® TBR20 Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton®
Leviton® TBR20 Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU461000
MFGR #TBR20
Your Cost: $5.53/ea
List: Plug into safety with Leviton® line of tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades.
Plug into safety with Leviton® line of tamper resistant receptacles. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number TBR20 Country of Origin MX Currency USD Dimensions 1.56 in L x 19 in W x 46 in H EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 8.7500 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 12.2500 in Length [Metric] 4.7625 cm Material Nylon (Body) NEMA Rating NEMA 5-20R Number Of Poles 2 Standard NEMA (WD-1, WD-6);ANSI (C-73);UL 498 (E13399);CSA Certified (152105);NOM Certified (057) Standards ANSI (C-73), CSA Certified (152105), NEMA (WD-1, WD-6), NOM Certified (057), UL 498 (E13399) Temperature Rating -40 to 60 °C Terminal Type Back/Side Wired Type Duplex Receptacle UNSPSC 39111503 UPC 11 07847739208 UPC 12 078477392089 Width 1.38 in Width [Metric] 3.4925 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 V Commercial Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc. will be locked out TR symbol on residential receptacles assures they meet the 2008 NEC requirement TR selection includes Residential and Commercial Grade receptacles Heavy duty construction offers long, trouble-free service life Self grounding Tamper resistant 2000 V (min) dielectric strength UL 94 V-2 flammability rating Zinc-plated steel strap 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TBR20 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.56 in L x 19 in W x 46 in H |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 12.2500 in |
| Length [Metric] | 4.7625 cm |
| Material | Nylon (Body) |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);UL 498 (E13399);CSA Certified (152105);NOM Certified (057) |
| Standards | ANSI (C-73), CSA Certified (152105), NEMA (WD-1, WD-6), NOM Certified (057), UL 498 (E13399) |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39111503 |
| UPC 11 | 07847739208 |
| UPC 12 | 078477392089 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc. will be locked out |
| TR symbol on residential receptacles assures they meet the 2008 NEC requirement |
| TR selection includes Residential and Commercial Grade receptacles |
| Heavy duty construction offers long, trouble-free service life |
| Self grounding |
| Tamper resistant |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Zinc-plated steel strap |
| 14 - 10 AWG |
