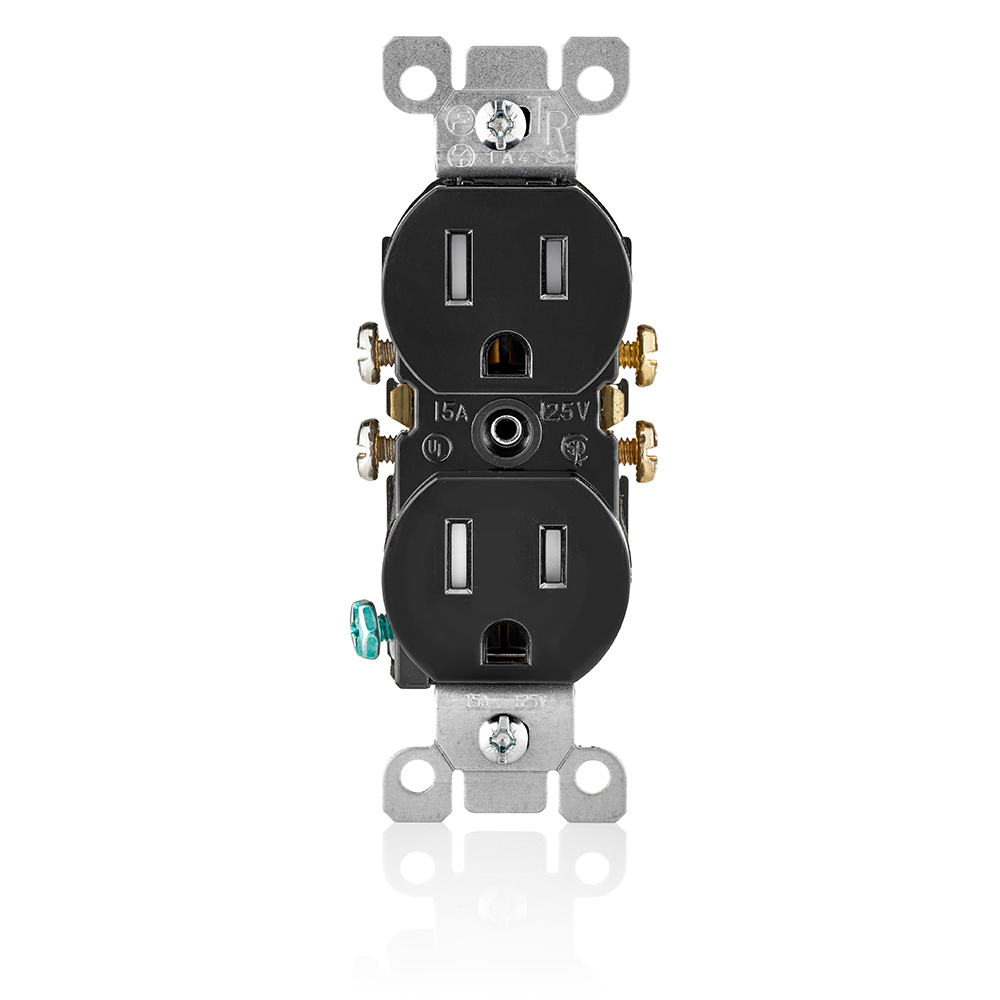

Leviton® T5320-E Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton® T5320-E Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
SKU491061
MFGR #T5320-E
Your Cost: $1.87/ea
List: Leviton® makes it easy for you to comply with the 2008 NEC mandate for TR receptacles in all new residential housing. This requirement resulted from a Consumer product safety Commission study that reported alleged injuries in the home caused each year by children attempting to insert foreign objects into receptacles. TR receptacles have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries.
Leviton® makes it easy for you to comply with the 2008 NEC mandate for TR receptacles in all new residential housing. This requirement resulted from a Consumer product safety Commission study that reported alleged injuries in the home caused each year by children attempting to insert foreign objects into receptacles. TR receptacles have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries.
Application Residential ARRA Compliant C Buy American Compliant C Catalog Number T5320-E Compatibility Straight Blade Device Country of Origin US Currency USD Dimensions 1.31 in L x 0.98 in W x 4.2 in H EU RoHS Indicator C Grade Residential Gross Weight Per Pack 0.1400 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 11.5630 in Length 19.0000 in Material Thermoplastic Mounting SCREW NEMA Rating NEMA 5-15R Number Of Poles 2 Socket Type 3 Pin 15 A Standard UL\CSA Certified;2008 NEC Compliant;NEMA: 5-15R Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCSA 152105cCSAus 152105UL ListedNEC Certified Style Straight Blade Terminal Type Quick-Wire® Push-In/Side Wired Type Duplex Receptacle UNSPSC 39111503 UPC 11 07847738190 UPC 12 078477381908 Width 0.98 in Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Black Number of Wires 3 Voltage Rating 125 V Residential Straight Blade, Tamper-Resistant, 2-Year Limited Warranty Shutter mechanism inside the receptacle blocks access to the contacts unless a 2 or 3-prong plug is inserted, helping ensure hairpins, keys, etc, will be locked out Heavy duty construction offers long, trouble-free service life TR symbol on the strap or body of device meets NEC® requirement
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Residential |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T5320-E |
| Compatibility | Straight Blade Device |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1.31 in L x 0.98 in W x 4.2 in H |
| EU RoHS Indicator | C |
| Grade | Residential |
| Gross Weight Per Pack | 0.1400 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 11.5630 in |
| Length | 19.0000 in |
| Material | Thermoplastic |
| Mounting | SCREW |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Socket Type | 3 Pin 15 A |
| Standard | UL\CSA Certified;2008 NEC Compliant;NEMA: 5-15R |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCSA 152105cCSAus 152105UL ListedNEC Certified |
| Style | Straight Blade |
| Terminal Type | Quick-Wire® Push-In/Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39111503 |
| UPC 11 | 07847738190 |
| UPC 12 | 078477381908 |
| Width | 0.98 in |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Residential |
| Straight Blade, Tamper-Resistant, 2-Year Limited Warranty |
| Shutter mechanism inside the receptacle blocks access to the contacts unless a 2 or 3-prong plug is inserted, helping ensure hairpins, keys, etc, will be locked out |
| Heavy duty construction offers long, trouble-free service life |
| TR symbol on the strap or body of device meets NEC® requirement |
