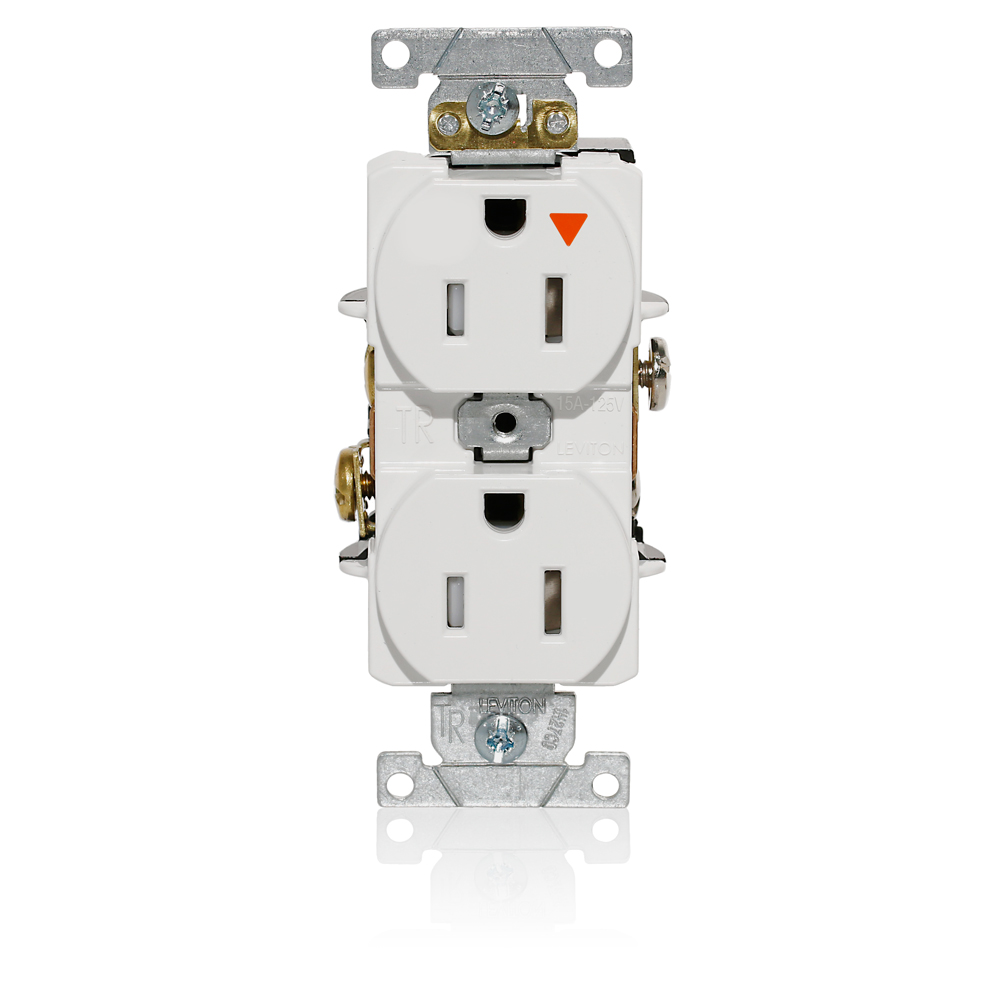

Leviton® T5262-IGW T5262-IG Duplex Flat Face Heavy Duty Isolated Self-Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton® T5262-IGW T5262-IG Duplex Flat Face Heavy Duty Isolated Self-Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU1284652
MFGR #T5262-IGW
Your Cost: $30.11/ea
Leviton® Straight Blade Receptacle, Duplex Flat Face Heavy Duty Isolated Self-Grounding Standard Tamper-Resistant, Series: T5262-IG, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, White, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
Leviton® Straight Blade Receptacle, Duplex Flat Face Heavy Duty Isolated Self-Grounding Standard Tamper-Resistant, Series: T5262-IG, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, White, 4.06 in H x 1.71 in W x 1.17 in D Dimensions
Application Industrial, Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitali ARRA Compliant C Buy American Compliant C Catalog Number T5262-IGW Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 11.6400 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Hazard Class N Height 8.5000 in Length 12.7500 in NEMA Rating 515R Number Of Poles 2 Standard UL 498 Type Receptacle UNSPSC 39121406 UPC 11 07847767523 UPC 12 078477675236 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Industrial, Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitali Isolated Ground Brass self-grounding clip is permanently staked on for secure and reliable performance Wide receptacle face shelf provides exceptional support to the wallplate or box cover Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provide Body and face made of impact-resistant advanced engineering polymer for extreme durability Universal strap design provides ample support for electrical box installations and in Ground and contact terminal isolated from mounting strap to prevent system noise interference Oversized brass terminal screw heads provide superior clamping force and electrical conductivit External wiring clamps allow for back or side wiring and provide visual verification of termi Molded in ribs prevent terminal screws from making contact with wall box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial, Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitali |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T5262-IGW |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 11.6400 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.5000 in |
| Length | 12.7500 in |
| NEMA Rating | 515R |
| Number Of Poles | 2 |
| Standard | UL 498 |
| Type | Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847767523 |
| UPC 12 | 078477675236 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial, Educational Facilities, Office Environments, Hospitals/Medical Buildings, Hospitali |
| Isolated Ground |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Patented tamper-resistant safety shutter mechanism prevents insertion of foreign objects, provide |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and in |
| Ground and contact terminal isolated from mounting strap to prevent system noise interference |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivit |
| External wiring clamps allow for back or side wiring and provide visual verification of termi |
| Molded in ribs prevent terminal screws from making contact with wall box |
