Leviton®

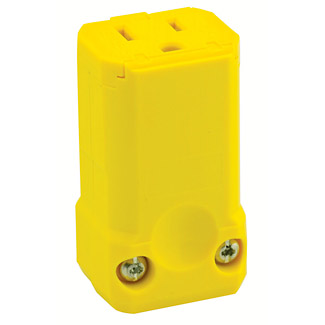

Leviton® Python® 5259-VY Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Custom_Product_Images_Illustration
Leviton®
Leviton® Python® 5259-VY Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU72179
MFGR #5259-VY
Your Cost: $8.82/ea
List: When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton®'s Python® straight Blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton®'s Python® straight Blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python's exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced-paced world where lost minutes on a job can translate into lost profits.
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 5259-VY Conductor Range 18-10 AWG Cord Diameter 0.245 to 0.7 in Country of Origin MX Currency USD Dimensions 1.41 in L x 1.23 in W x 2.5 in H Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Height 9.0000 in Height [Metric] 3.0988 cm Length 9.3750 in Length [Metric] 10.1600 cm Material Nylon NEMA Rating 5-15R Number Of Conductors 3 Number Of Poles 2 Size 1.41 L x 1.23 W x 2.50 H in Standard NEMA (WD-1, WD-6);NOM Certified (057);ANSI (C-73);CSA C22 2 No.42 (File LR-406);UL Listed 498 (E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73NOM 057NEMA WD-1/WD-6CSA C22.2 No. 42 File No. LR406UL 498 File No. E13399UL94 V-2 Flammability Rating Sub Brand Python Temperature Rating -40 to 60 °C Terminal Type Threaded Type Hinged Connector UNSPSC 39121421 UPC 11 07847705518 UPC 12 078477055182 Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Yellow Number of Wires 3 Voltage Rating 125 V Industrial Tough high impact body Hinged design delivers fast, easy installation and assembly Triple drive screws for easy wiring standard, Philips® and Robertson 18-3 SVT to 10-3 ST (0.245 to 0.7 in) wide cord clamp range 2000 VAC dielectric strength Certified for current interrupting at full rated current Thermoplastic back cover Nylon cord clamp, wire module and clamp insert Solid brass blades/contacts Brass screws Zinc plated steel assembly screws 18 to 10 AWG terminal accommodation Brass screws Steel zinc plated assembly screws
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5259-VY |
| Conductor Range | 18-10 AWG |
| Cord Diameter | 0.245 to 0.7 in |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.41 in L x 1.23 in W x 2.5 in H |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Height | 9.0000 in |
| Height [Metric] | 3.0988 cm |
| Length | 9.3750 in |
| Length [Metric] | 10.1600 cm |
| Material | Nylon |
| NEMA Rating | 5-15R |
| Number Of Conductors | 3 |
| Number Of Poles | 2 |
| Size | 1.41 L x 1.23 W x 2.50 H in |
| Standard | NEMA (WD-1, WD-6);NOM Certified (057);ANSI (C-73);CSA C22 2 No.42 (File LR-406);UL Listed 498 (E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73NOM 057NEMA WD-1/WD-6CSA C22.2 No. 42 File No. LR406UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Sub Brand | Python |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Threaded |
| Type | Hinged Connector |
| UNSPSC | 39121421 |
| UPC 11 | 07847705518 |
| UPC 12 | 078477055182 |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Yellow |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial |
| Tough high impact body |
| Hinged design delivers fast, easy installation and assembly |
| Triple drive screws for easy wiring standard, Philips® and Robertson |
| 18-3 SVT to 10-3 ST (0.245 to 0.7 in) wide cord clamp range |
| 2000 VAC dielectric strength |
| Certified for current interrupting at full rated current |
| Thermoplastic back cover |
| Nylon cord clamp, wire module and clamp insert |
| Solid brass blades/contacts |
| Brass screws |
| Zinc plated steel assembly screws |
| 18 to 10 AWG terminal accommodation |
| Brass screws |
| Steel zinc plated assembly screws |
