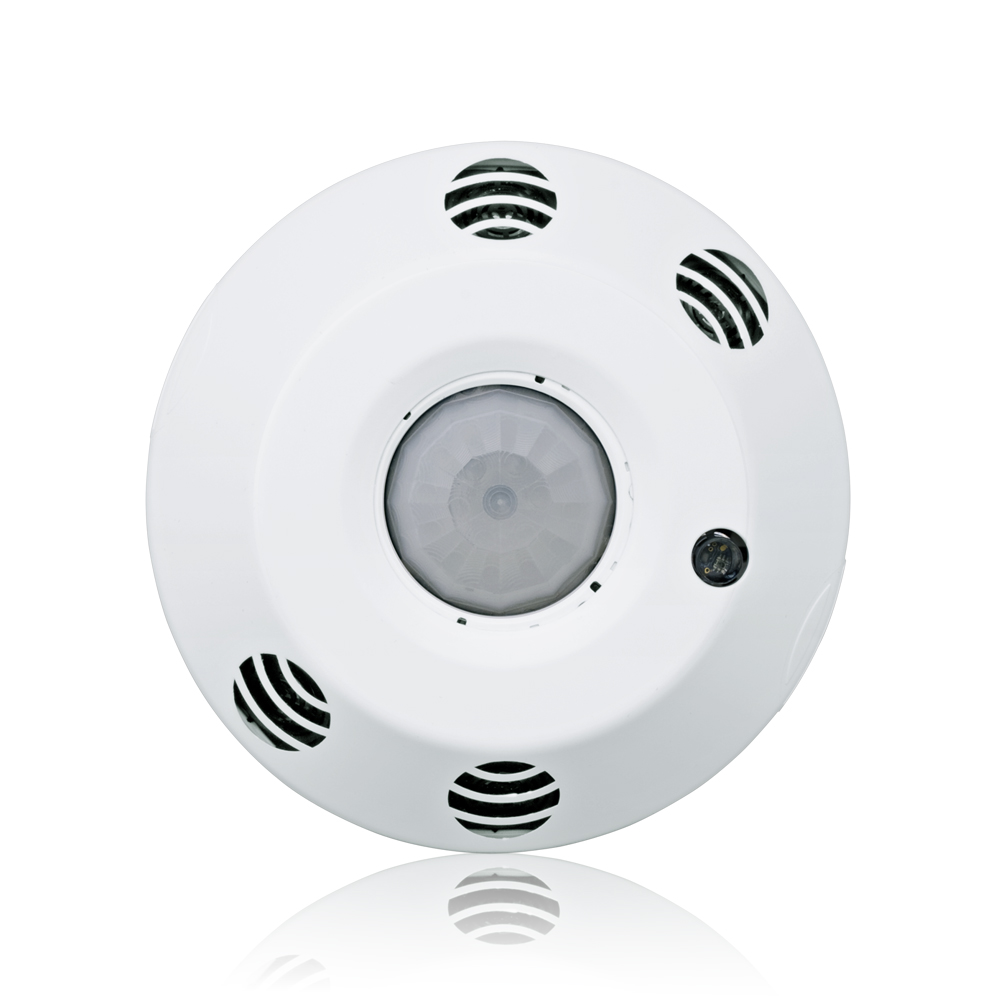

Leviton® Provolt™ O4C10-MDW Dual Relay Line Voltage Vacancy Sensor, 120/230/277 VAC, Passive Infrared/Ultrasonic Sensor
Ceiling Mount Vacancy Sensors
996163
MFG #: O4C10-MDW
Leviton®
270.99000
/ ea
The Leviton Provolt™ dual relay vacancy sensors combine line voltage vacancy sensors into a self-contained unit. The integrated design alleviates the need for separate power pack and vacancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor-based technology to optimize performance.
- Full Eng Drawing URL - C-IDR100X075X1J--ENG.pdf(Full Eng Drawing URL)
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - Leviton_O4C10_MDW_Installation_Sheet.pdf(Install Instructions URL)
- Owners Manual URL - Leviton_O4C15_IDW_Manual.pdf(Owners Manual URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 10962_AHBGFXEPUWTC0V67.pdf(Spec Sheet URL)
- Tech Bulletin URL - Leviton_O2C04_IDW_Technical_Bulletin.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/sVwYl9dLEgw(Video)
- Applications
- Features
| Commercial |
| Auto-Adapting |
| Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use |
| Vacancy sensing timeouts delayed OFF timer, exclusive Walk-through feature, false detection timer (M/T) PIR scans for movement and shuts lights OFF after 31 min of vacancy preventing false triggers from HVAC systems (U/S) |
| Time delay and saved settings are protected during power outages and will return to the last known state |
| Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported |
| Adjustable time delay 30 sec, 5 min, 10 min, 20 min and 30 min |
| Test mode for simplified commissioning |
| Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility |
| Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns |
| Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
| Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays |
| Lenses on PIR models are easily replaceable and color coded red (mid range) for contractors and end users to easily identify lenses from the ground |
| Red blinks when infrared is detecting motion and solid during device malfunction, yellow blinks during test mode, solid with emergency/BMS input, blue blinks when knob settings are changed and green blinks when U/S is detected |
| Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays |
| Red - blinks when infrared is detecting motion and solid during device malfunction, yellow - blinks during test mode, solid with emergency/BMS input, blue - blinks when knob settings are changed, and green - blinks when U/S is detected |
| -26 to 71 deg C storage temperature |
| 0 to 90% non-condensing relative humidity |
