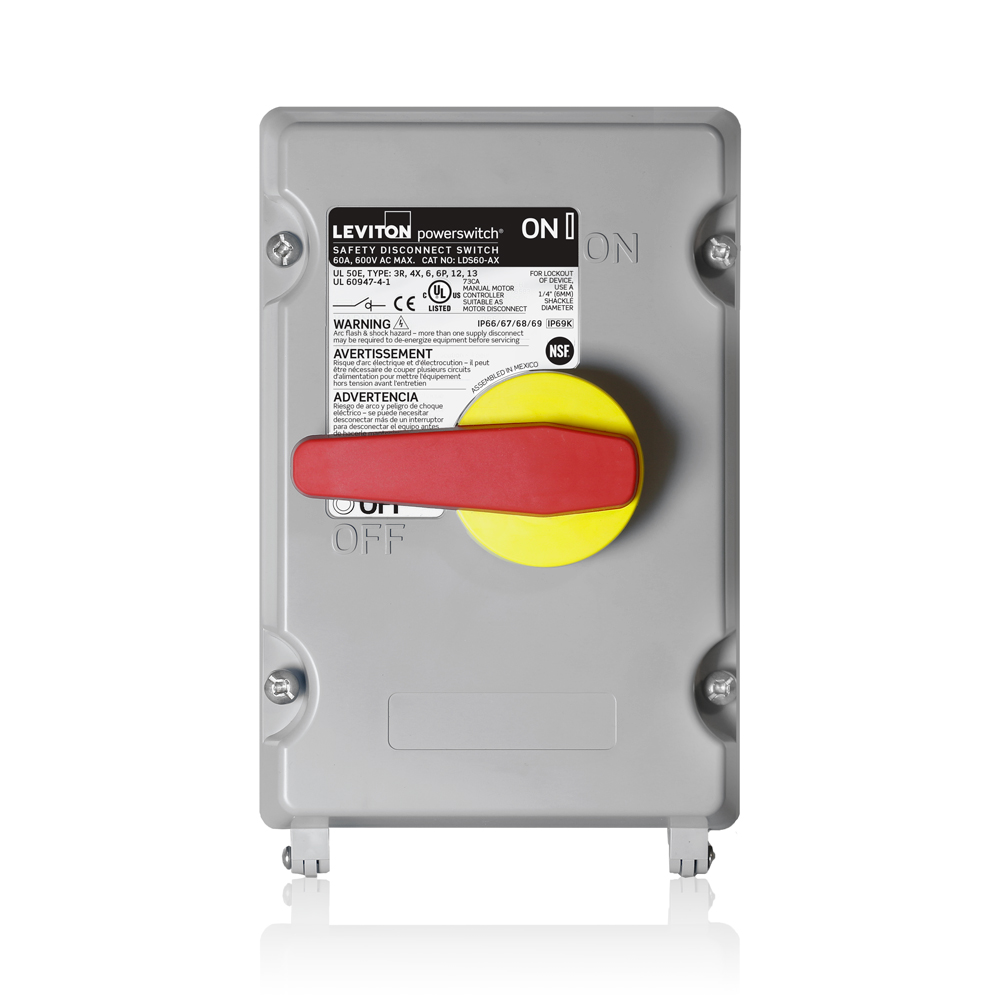

Leviton® Powerswitch® LDS60-AC Non-Metallic Non-Fused Safety Disconnect Switch With Factory Installed Auxiliary Contact, 600 VAC, 60 A, 10 hp, 40 hp
Enclosed Rotary Disconnects
1194435
MFG #: LDS60-AC
Leviton®
429.09000
/ ea
Leviton® Powerswitch® Safety Disconnect Switch, Non-Metallic Non-Fused, 600 VAC, 60 A, 10 hp, 40 hp, 1/3 Phase, 100 kA Short Circuit, Front Handle Actuator, NEMA 3R/4/4X/6/6P/12/13/250/IP66/IP67/IP68/IP69/IP69K Enclosure, -40 to 75 deg C, 10.46 in H x 6.5 in W x 6.82 in D Dimensions, PBT/Polycarbonate, Gray
- Applications
- Features
| For superior performance in food and beverage processing, manufacturing, marinas and shipyards |
| PBT enclosure resists impact, abuse and corrosion |
| Watertight, dust tight, submersible and suitable for high pressure and high temperature w |
| NSF certified for hygiene requirements in food and beverage processing |
| Overmold handle provides firm grip, durability and withstands washdown |
| Handle accommodates 3-padlocks for OSHA compliant lockout/tagout |
| 200 kA SCCR when protected by type J fuse |
| Captive, triple head cover screws constructed of stainless steel |
