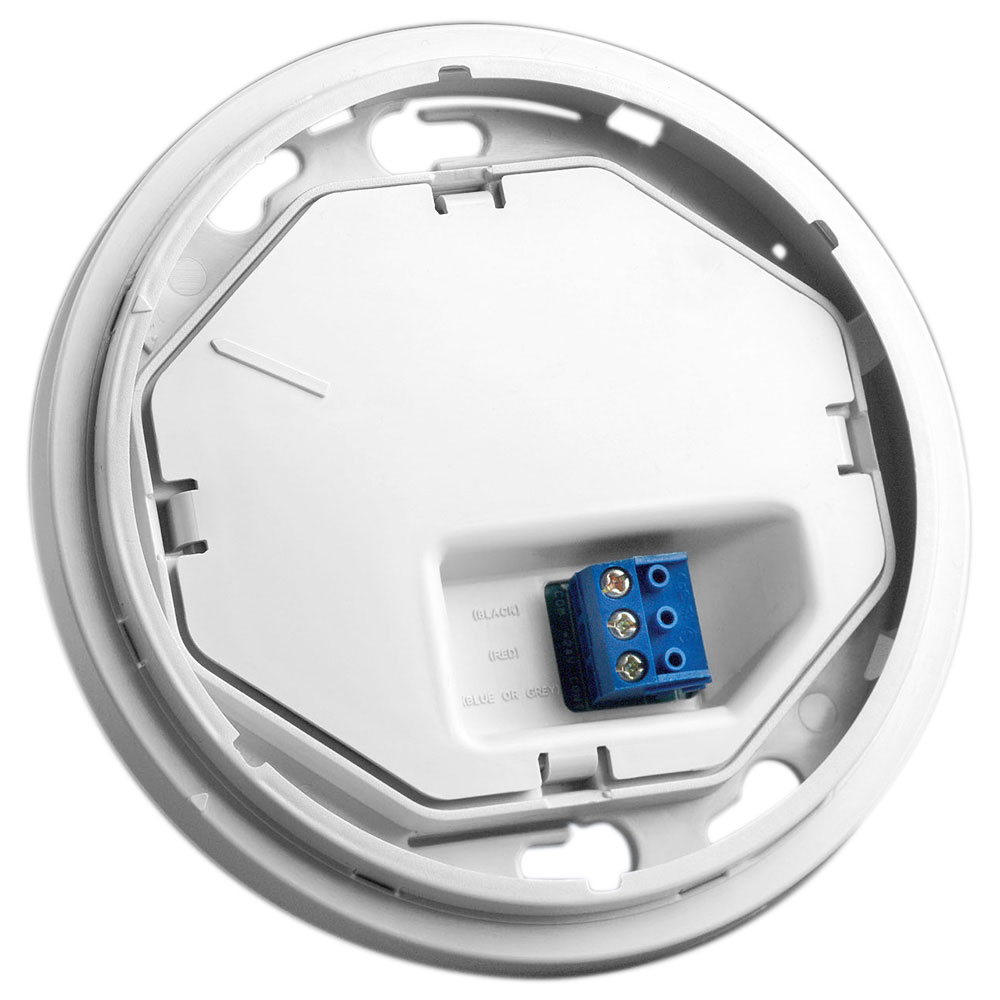

Leviton® Power Base™ OPB15-DW Occupancy Sensor, For Use With Occupancy and Vacancy Sensors, Plastic, White
Leviton®
Leviton® Power Base™ OPB15-DW Occupancy Sensor, For Use With Occupancy and Vacancy Sensors, Plastic, White
SKU320669
MFGR #OPB15-DW
Your Cost: $69.55/ea
The OPB15 Power Base™ is a unique, patent pending, 15 amp power pack for low voltage occupancy sensors packaged in a housing that forms the mounting base of these products. This allows for installations where only line voltage circuitry is available while providing the full line of Leviton® low voltage ceiling sensors to meet every application. The OPB15 Power Base™ provides all of the same features as the standard OSP power pack series with a full rated 15 amp, zero cross relay with 24 VDC supply. The Power Base™ adapter converts any Leviton® low voltage ceiling occupancy sensor to a self-contained, line voltage unit, with 15 amp, 120-277V load capacity. Converts any Leviton® low voltage ceiling sensor to line voltage (patent pending), mounts to standard 2.125 in deep X 4 in octagon or 2.125 in deep X 4 in foursquare electrical boxes (foursquare box requires a two-gang mud ring), simple installation, ideal for retrofit or new construction applications, zero crossing circuitry provides increased durability.
The OPB15 Power Base™ is a unique, patent pending, 15 amp power pack for low voltage occupancy sensors packaged in a housing that forms the mounting base of these products. This allows for installations where only line voltage circuitry is available while providing the full line of Leviton® low voltage ceiling sensors to meet every application. The OPB15 Power Base™ provides all of the same features as the standard OSP power pack series with a full rated 15 amp, zero cross relay with 24 VDC supply. The Power Base™ adapter converts any Leviton® low voltage ceiling occupancy sensor to a self-contained, line voltage unit, with 15 amp, 120-277V load capacity. Converts any Leviton® low voltage ceiling sensor to line voltage (patent pending), mounts to standard 2.125 in deep X 4 in octagon or 2.125 in deep X 4 in foursquare electrical boxes (foursquare box requires a two-gang mud ring), simple installation, ideal for retrofit or new construction applications, zero crossing circuitry provides increased durability.
Application Commercial ARRA Compliant C Body High Impact Plastic Buy American Compliant C Catalog Number OPB15-DW Country of Origin MX Currency USD Dimensions 4-1/2 in Dia x 1-3/4 in D Environmental Conditions Humidity (0 to 90% Non Condensing) EU RoHS Indicator C Gross Weight Per Pack 0.5700 lb Gross Weight per Pack Metric 0.26 Gross Weight UOM Metric kg Height 9.5000 in Height [Metric] 6.6675 cm Length 11.7500 in Length [Metric] 11.2725 cm Operating Temperature 0 to +40 °C Standard ANCE Compliant;ASHRAE Standard (90.1) Compliant;California Title 24 CEC Listed;CSA Certified;CUL\US Listed 9034;FCC Compliant;NOM Certified (057) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1 CompliantCSA CertifiedCEC CompliantcULus 9034FCC ApprovedNOM 057UL ListedcUL ListedNAFTA Approved Sub Brand Power Base Supply Voltage 24 VDC Type Occupancy Sensor UNSPSC 39122236 UPC 11 07847729967 UPC 12 078477299678 Width 4.44 in Width [Metric] 11.2725 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Color White Material High Impact Plastic Specifications 15 A, 120/230/277 VAC, 50/60 Hz, 40 mA, 5 mA 24 VDC Control Input, 40 mA 24 VDC Power Supply Output, 15 A FL/INC Load Rating, Silver Alloy Contact Material, 4 AWG 6 in Power 22 AWG 7 in Control Wire Leads Suitable For Use With Leviton® 24 VDC Low Voltage Ceiling Mount and Wall Mount Occupancy Sensors Commercial 5 Year Limited Warranty, Made in Mexico Converts any Leviton low voltage ceiling sensor to line voltage Mounts to standard 2-1/8 in D x 4 in octagon or 2-1/8 in D x 4 in 4-square electrical boxes Simple installation Zero crossing circuitry provides increased durability 0 to 90% relative non-condensing operating humidity, 32 to 104 deg F operating temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Body | High Impact Plastic |
| Buy American Compliant | C |
| Catalog Number | OPB15-DW |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4-1/2 in Dia x 1-3/4 in D |
| Environmental Conditions | Humidity (0 to 90% Non Condensing) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5700 lb |
| Gross Weight per Pack Metric | 0.26 |
| Gross Weight UOM Metric | kg |
| Height | 9.5000 in |
| Height [Metric] | 6.6675 cm |
| Length | 11.7500 in |
| Length [Metric] | 11.2725 cm |
| Operating Temperature | 0 to +40 °C |
| Standard | ANCE Compliant;ASHRAE Standard (90.1) Compliant;California Title 24 CEC Listed;CSA Certified;CUL\US Listed 9034;FCC Compliant;NOM Certified (057) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1 CompliantCSA CertifiedCEC CompliantcULus 9034FCC ApprovedNOM 057UL ListedcUL ListedNAFTA Approved |
| Sub Brand | Power Base |
| Supply Voltage | 24 VDC |
| Type | Occupancy Sensor |
| UNSPSC | 39122236 |
| UPC 11 | 07847729967 |
| UPC 12 | 078477299678 |
| Width | 4.44 in |
| Width [Metric] | 11.2725 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Color | White |
| Material | High Impact Plastic |
| Specifications | 15 A, 120/230/277 VAC, 50/60 Hz, 40 mA, 5 mA 24 VDC Control Input, 40 mA 24 VDC Power Supply Output, 15 A FL/INC Load Rating, Silver Alloy Contact Material, 4 AWG 6 in Power 22 AWG 7 in Control Wire Leads |
| Suitable For Use With | Leviton® 24 VDC Low Voltage Ceiling Mount and Wall Mount Occupancy Sensors |
| Commercial |
| 5 Year Limited Warranty, Made in Mexico |
| Converts any Leviton low voltage ceiling sensor to line voltage |
| Mounts to standard 2-1/8 in D x 4 in octagon or 2-1/8 in D x 4 in 4-square electrical boxes |
| Simple installation |
| Zero crossing circuitry provides increased durability |
| 0 to 90% relative non-condensing operating humidity, 32 to 104 deg F operating temperature |
