Leviton® OSW12-RMW Occupancy Sensor With Isolated Relay, 24 VDC, PIR/Ultrasonic Sensor, 1200 sq-ft Coverage, 110 deg

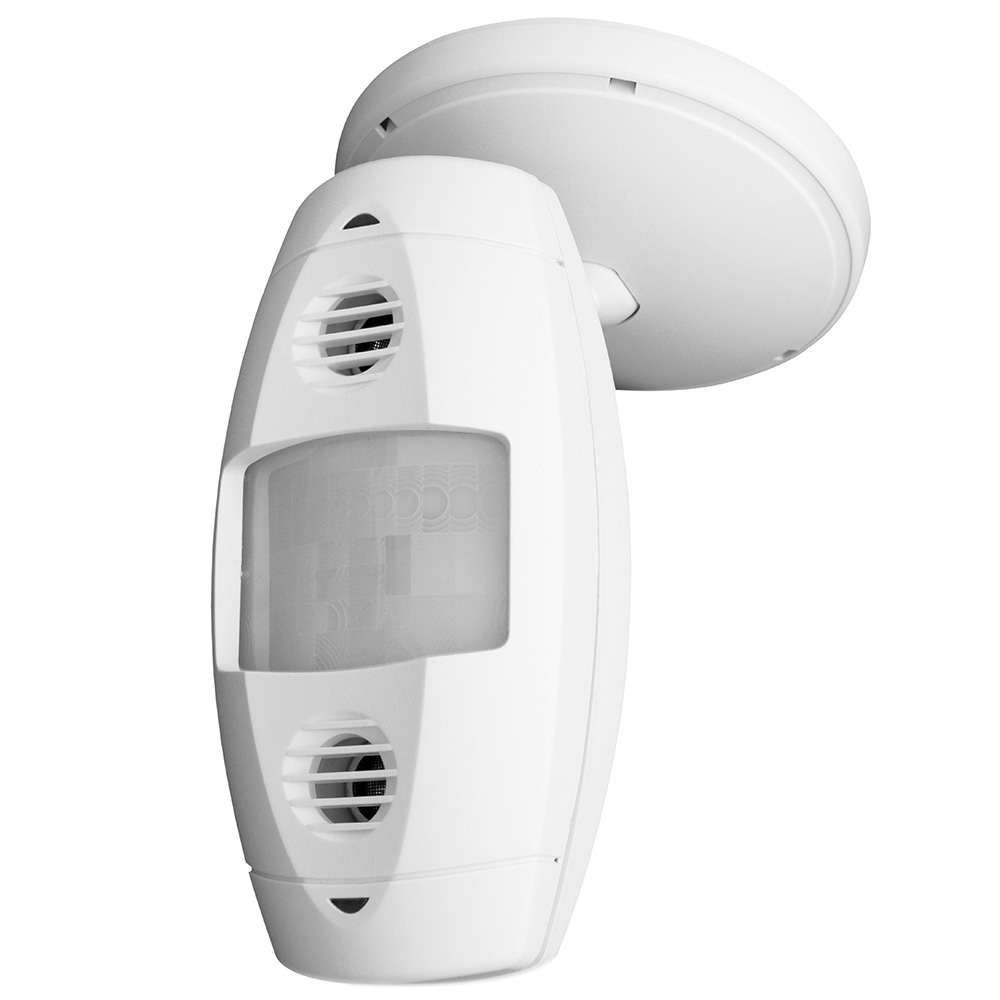

Custom_Product_Images_Illustration
Leviton® OSW12-RMW Occupancy Sensor With Isolated Relay, 24 VDC, PIR/Ultrasonic Sensor, 1200 sq-ft Coverage, 110 deg
SKU924715
MFGR #OSW12-RMW
Your Cost: $237.87/ea
Leviton® OSW12-RMW sensor combines the benefits of both PIR and U/S technologies for unrivaled performance and reliability. Additionally, the sensor is designed with an isolated relay contact, enabling the sensor to interface with other systems (example: BAS, HVAC or any dry contact capable device or system).
Leviton® OSW12-RMW sensor combines the benefits of both PIR and U/S technologies for unrivaled performance and reliability. Additionally, the sensor is designed with an isolated relay contact, enabling the sensor to interface with other systems (example: BAS, HVAC or any dry contact capable device or system).
Application Residential / Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSW12-RMW Country of Origin CN Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.8700 lb Gross Weight per Pack Metric 0.40 Gross Weight UOM Metric kg Height 12.6250 in Height [Metric] 7.4625 cm Length 14.8750 in Length [Metric] 15.5575 cm Mounting Wall Standard CUL/US Cert Standards ARRA, ASHRAE 90.1, ANCE, Buy American Compliant, cULus 9034, FCC, NAFTA Compliant, NOM 057, Title-24 Compliant Type Occupancy Sensor UNSPSC 41111961 UPC 11 07847755371 UPC 12 078477553718 Width 5.75 in Width [Metric] 14.6050 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Residential / Commercial Isolated Relay Multi-technology by using both PIR and U/S signals, the sensor minimizes false triggering for high-reliability Isolated relay supports HVAC or other class 2 low voltage signals Supports both 24 VAC/VDC power supplies Flexible base mounting supplied twist-and-lock base mount permits fast alignment Supplied cover hides mounting hardware and wires Can be used with raceways for hard surface installations Adjustable canopy for wall or ceiling mount Wide coverage over 1200 sq-ft of coverage Fast, simple installation a single mounting post and color-coded wires make installation easy Self-adjusting internal microprocessor continually analyzes, evaluates and adjusts sensitivity and time delay settings Performance is kept at a maximum and user complaints are eliminated Non-volatile memory learned and adjusted settings saved in protected memory are not lost during power outages Timer setting feature automatic 30 sec to 30 min, test mode 4 sec with auto exit programming Walk-through provides increased energy savings by decreasing the time delay to 2.5 min when someone momentarily walks through the monitored space Custom white color matched for most common daylight harvesting architecture Uses OSPxx series power pack uses class 2, 24 VAC wiring, three wire connection (low voltage) High motion sensitivity the large lens area and multi-element lens design give excellent range and sensitivity Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service Device high-impact housing and injection molded plastic, color-coded wire leads are 6 in long Lens 110 deg aperture, lens opening 2.2 x 1.47 in, 36 elements (72-zones) small motion range 31 ft, large motion 68 ft
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Residential / Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSW12-RMW |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.8700 lb |
| Gross Weight per Pack Metric | 0.40 |
| Gross Weight UOM Metric | kg |
| Height | 12.6250 in |
| Height [Metric] | 7.4625 cm |
| Length | 14.8750 in |
| Length [Metric] | 15.5575 cm |
| Mounting | Wall |
| Standard | CUL/US Cert |
| Standards | ARRA, ASHRAE 90.1, ANCE, Buy American Compliant, cULus 9034, FCC, NAFTA Compliant, NOM 057, Title-24 Compliant |
| Type | Occupancy Sensor |
| UNSPSC | 41111961 |
| UPC 11 | 07847755371 |
| UPC 12 | 078477553718 |
| Width | 5.75 in |
| Width [Metric] | 14.6050 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Residential / Commercial |
| Isolated Relay |
| Multi-technology by using both PIR and U/S signals, the sensor minimizes false triggering for high-reliability |
| Isolated relay supports HVAC or other class 2 low voltage signals |
| Supports both 24 VAC/VDC power supplies |
| Flexible base mounting supplied twist-and-lock base mount permits fast alignment |
| Supplied cover hides mounting hardware and wires |
| Can be used with raceways for hard surface installations |
| Adjustable canopy for wall or ceiling mount |
| Wide coverage over 1200 sq-ft of coverage |
| Fast, simple installation a single mounting post and color-coded wires make installation easy |
| Self-adjusting internal microprocessor continually analyzes, evaluates and adjusts sensitivity and time delay settings |
| Performance is kept at a maximum and user complaints are eliminated |
| Non-volatile memory learned and adjusted settings saved in protected memory are not lost during power outages |
| Timer setting feature automatic 30 sec to 30 min, test mode 4 sec with auto exit programming |
| Walk-through provides increased energy savings by decreasing the time delay to 2.5 min when someone momentarily walks through the monitored space |
| Custom white color matched for most common daylight harvesting architecture |
| Uses OSPxx series power pack uses class 2, 24 VAC wiring, three wire connection (low voltage) |
| High motion sensitivity the large lens area and multi-element lens design give excellent range and sensitivity |
| Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
| Device high-impact housing and injection molded plastic, color-coded wire leads are 6 in long |
| Lens 110 deg aperture, lens opening 2.2 x 1.47 in, 36 elements (72-zones) small motion range 31 ft, large motion 68 ft |
