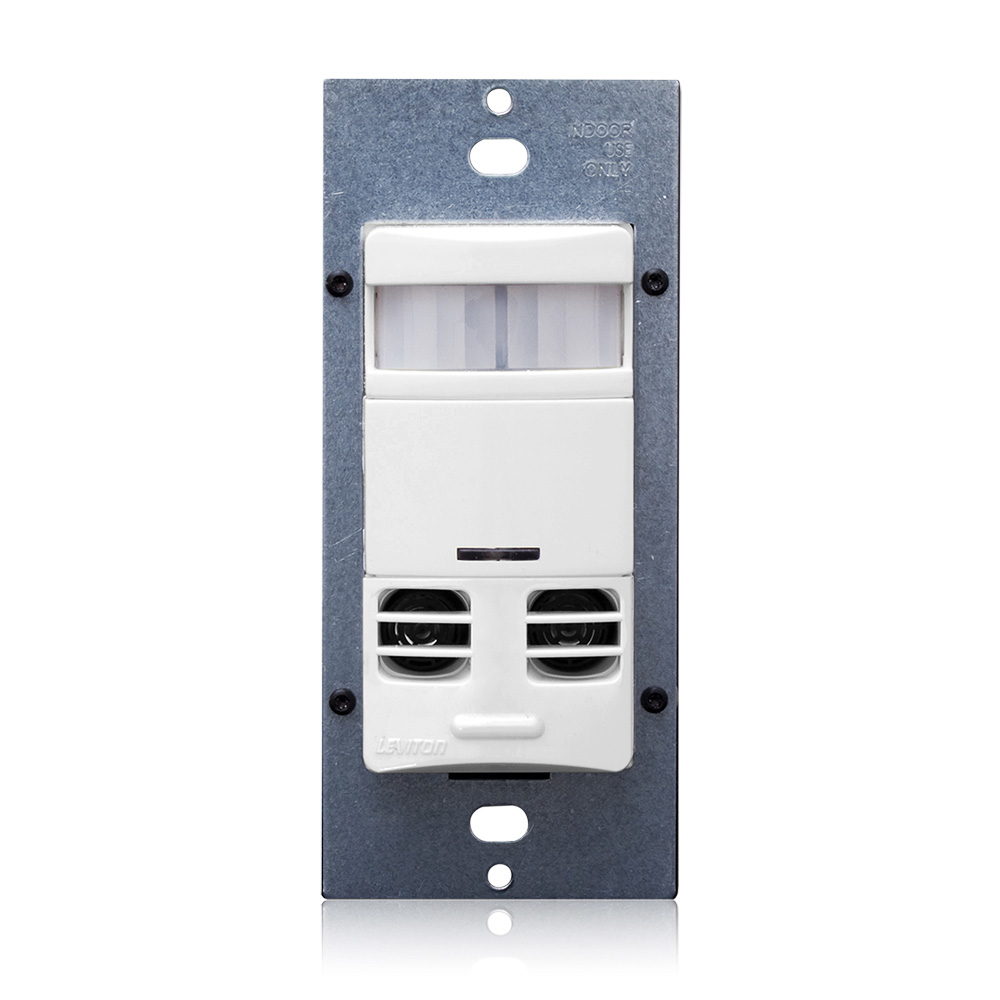

Leviton® OSSMT-MAI 1-Pole Occupancy Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 2400 sq-ft Coverage
Custom_Product_Images_Illustration
Leviton® OSSMT-MAI 1-Pole Occupancy Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 2400 sq-ft Coverage
SKU834272
MFGR #OSSMT-MAI
Your Cost: $118.87/ea
Leviton® Occupancy Sensor, 1-Pole, 120/277 VAC, 1 hp, Passive Infrared/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 sec to 30 min Delay, Incandescent/Fluorescent Lamp, 50/60 Hz Response, Wire Lead, Manual ON/Automatic OFF Control Output, Wall Mount, 0 to 50 deg C, Ivory, 4.06 in H x 1.75 in W x 1.85 in D
Leviton® Occupancy Sensor, 1-Pole, 120/277 VAC, 1 hp, Passive Infrared/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 sec to 30 min Delay, Incandescent/Fluorescent Lamp, 50/60 Hz Response, Wire Lead, Manual ON/Automatic OFF Control Output, Wall Mount, 0 to 50 deg C, Ivory, 4.06 in H x 1.75 in W x 1.85 in D
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSSMT-MAI Color Ivory Control Output Manual On/Automatic Off Country of Origin US Currency USD Dimensions 46 in H x 1.75 in W x 1.85 in D Environmental Conditions Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing) EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.19 Gross Weight UOM Metric kg Height 6.0000 in Lamp Type Fluorescent/Incandescent/Tungsten Length 11.7500 in Mounting Wall Power Consumption 390 @ 120V (U/S & PIR);190 @ 120V (PIR only);480 @ 277V (U/S & PIR);270 @ 277V (PIR only);500 @ 347V (U/S & PIR);350 @ 347V (PIR only) MILWTT Power Rating 190/270/350/390 mW Response Frequency 50/60 Hz Size 46 H x 1.75 W x 1.85 D in Standard UL Listed;cUL Listed;CSA Certified;CEC Title 24 Compliant;FCC Compliant;NAFTA (CF434) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL ListedCSA CertifiedCEC Title 24 CompliantFCC ApprovedNAFTA CF434 Sub Brand Decora Supply Voltage 120/230/277/347 VAC Temperature Rating 0 to 40 °C Time Delay 30 s to 30 min Type Occupancy Sensor;Single-Pole Switch UNSPSC 45111808 UPC 11 07847750924 UPC 12 078477509241 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 2400 ft² Mounting Type Wall Sensor Type Multi-Technology/PIR/Ultrasonic Viewing Angle 180 ° Voltage Rating 120/230/277/347 VAC Commercial Fast, Simple Installation Fits in a Standard Wall Box and Replaces a Single-Pole Wall-Switch, Neutral and No Neutral Options Available, Convenient Pushbutton Provides Manual-ON/OFF Light Switching at any Time, Segmented Fresnel Lens Provides Optimum Sensi Fast, simple Installation fits in a standard wall box and replaces a single pole wall switch Low profile design eliminates obtrusive "scanning-device" look, elegant decora wallplates complement any interior for sleek aesthetics, uses decora wallplates and coordinates with Leviton's popular line of decora wiring devices Convenient pushbutton provides Manual-ON/OFF light switching at any time Segmented fresnel lens provides optimum sensitivity and performance Designed with an extensive minor motion area where even slight body movements will be detected Vandal resistant PIR lens Manual-ON/Auto-OFF mode for installations where Manual-ON switching is required but Auto-OFF switching is still desired for CEC Title 24 energy savings To comply with CED Title 24, LED indicator light flashes when sensor detects motion to verify detection is active, green flashes for ultrasonic, red flashes for PIR Ambient light recognition Integrated light sensor prevents lights from turning on when the room is adequately illuminated by natural light Self-adaptive technology call backs for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy For slide or film presentations, allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts Green and red LED color The delayed-OFF time is preset at 30 minutes in the auto adapting mode 800 W at 120VAC, 1200 VA at 120 VAC, 2700 VA at 277 VAC load rating, external power pack not required 20 to 90% non-condensing relative humidity 1 hp at 120 VAC power rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSSMT-MAI |
| Color | Ivory |
| Control Output | Manual On/Automatic Off |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 46 in H x 1.75 in W x 1.85 in D |
| Environmental Conditions | Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.19 |
| Gross Weight UOM Metric | kg |
| Height | 6.0000 in |
| Lamp Type | Fluorescent/Incandescent/Tungsten |
| Length | 11.7500 in |
| Mounting | Wall |
| Power Consumption | 390 @ 120V (U/S & PIR);190 @ 120V (PIR only);480 @ 277V (U/S & PIR);270 @ 277V (PIR only);500 @ 347V (U/S & PIR);350 @ 347V (PIR only) MILWTT |
| Power Rating | 190/270/350/390 mW |
| Response Frequency | 50/60 Hz |
| Size | 46 H x 1.75 W x 1.85 D in |
| Standard | UL Listed;cUL Listed;CSA Certified;CEC Title 24 Compliant;FCC Compliant;NAFTA (CF434) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL/cUL ListedCSA CertifiedCEC Title 24 CompliantFCC ApprovedNAFTA CF434 |
| Sub Brand | Decora |
| Supply Voltage | 120/230/277/347 VAC |
| Temperature Rating | 0 to 40 °C |
| Time Delay | 30 s to 30 min |
| Type | Occupancy Sensor;Single-Pole Switch |
| UNSPSC | 45111808 |
| UPC 11 | 07847750924 |
| UPC 12 | 078477509241 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 2400 ft² |
| Mounting Type | Wall |
| Sensor Type | Multi-Technology/PIR/Ultrasonic |
| Viewing Angle | 180 ° |
| Voltage Rating | 120/230/277/347 VAC |
| Commercial |
| Fast, Simple Installation Fits in a Standard Wall Box and Replaces a Single-Pole Wall-Switch, Neutral and No Neutral Options Available, Convenient Pushbutton Provides Manual-ON/OFF Light Switching at any Time, Segmented Fresnel Lens Provides Optimum Sensi |
| Fast, simple Installation fits in a standard wall box and replaces a single pole wall switch |
| Low profile design eliminates obtrusive "scanning-device" look, elegant decora wallplates complement any interior for sleek aesthetics, uses decora wallplates and coordinates with Leviton's popular line of decora wiring devices |
| Convenient pushbutton provides Manual-ON/OFF light switching at any time |
| Segmented fresnel lens provides optimum sensitivity and performance |
| Designed with an extensive minor motion area where even slight body movements will be detected |
| Vandal resistant PIR lens |
| Manual-ON/Auto-OFF mode for installations where Manual-ON switching is required but Auto-OFF switching is still desired for CEC Title 24 energy savings |
| To comply with CED Title 24, LED indicator light flashes when sensor detects motion to verify detection is active, green flashes for ultrasonic, red flashes for PIR |
| Ambient light recognition Integrated light sensor prevents lights from turning on when the room is adequately illuminated by natural light |
| Self-adaptive technology call backs for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode |
| Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy |
| For slide or film presentations, allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied |
| True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts |
| Green and red LED color |
| The delayed-OFF time is preset at 30 minutes in the auto adapting mode |
| 800 W at 120VAC, 1200 VA at 120 VAC, 2700 VA at 277 VAC load rating, external power pack not required |
| 20 to 90% non-condensing relative humidity |
| 1 hp at 120 VAC power rating |
