Leviton® OSM3D-V1W Occupancy Sensor, 120/277 VAC, High Frequency Microwave Sensor, 3 to 30 ft Coverage, 150/360 deg, Wall Mount
Wall Mount Occupancy Sensors
1283347
MFG #: OSM3D-V1W
Leviton®
90.43000
/ ea
Leviton® Occupancy Sensor, 120/277 VAC, 1000/1200 VA, High Frequency Microwave Sensor, 3 to 30 ft Coverage, 150/360 deg Viewing, 10 sec to 30 min Delay, 50/60 Hz Response, IP20, Wall Mount, -20 to 100 deg C, White, 3.2 in H x 1.73 in W
- Applications
- Features
| Garages, Warehouses, Metal Walls or Fixtures Including Wall Sconces, Wall Packs, Residential an |
| High Frequency |
| Designed to detect movement behind low density fixture materials or behind objects made of plastic or glass |
| Automatic switching based on motion and ambient light level |
| Zero crossing detection circuitry protects the sensor against inrush current when switching |
| LED lighting compatible |

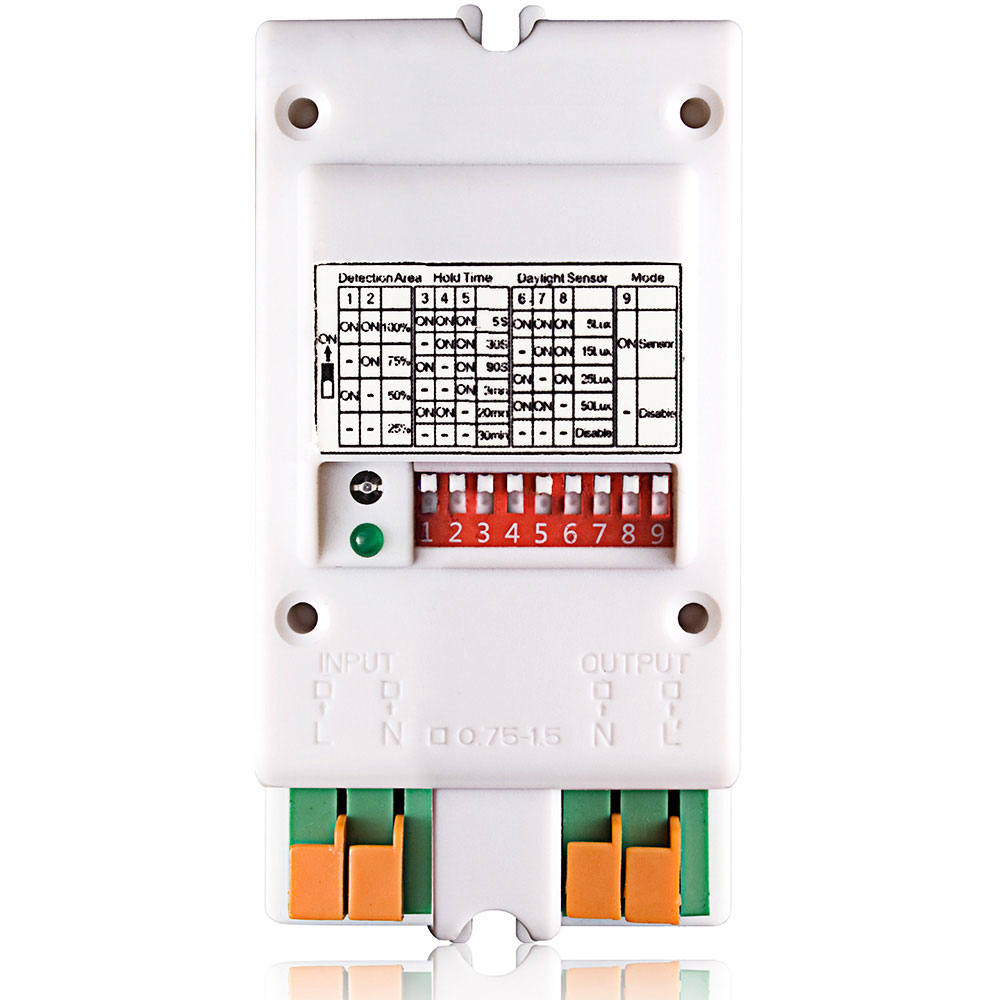

| Detection area, time delay and daylight threshold can be set via sensor DIP switch |
| Hold times range from 10 sec to 30 min |
| 4-pole press in terminal for easy wiring |
| 5.8 GHz high frequency microwave |
| Surface or base mounting, can be hidden from view |
