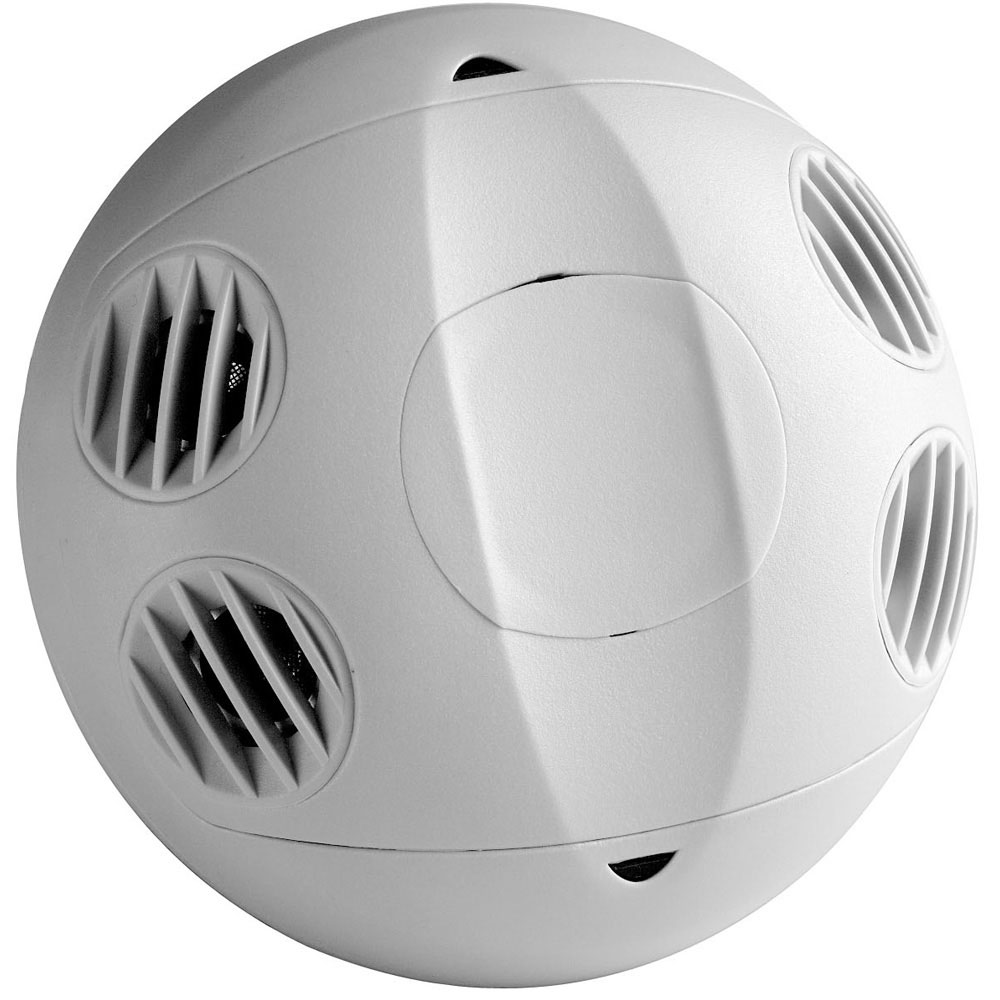

Leviton® OSC20-UAW Low Voltage Ceiling Mount Occupancy Sensors, 24 VAC, Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg
Custom_Product_Images_Illustration
Leviton® OSC20-UAW Low Voltage Ceiling Mount Occupancy Sensors, 24 VAC, Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg
SKU834252
MFGR #OSC20-UAW
Your Cost: $217.55/ea
Leviton's ceiling mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in ultrasonic or infrared. Select models interface with BAS/BMS, HVAC and other systems.
Leviton's ceiling mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in ultrasonic or infrared. Select models interface with BAS/BMS, HVAC and other systems.
Amperage Rating 30 mA Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSC20-UAW Color White Connection Type Wired Control Output Automatic On/Automatic Off Country of Origin US Currency USD Dimensions 4.2 in Dia x 1.373 in D Environmental Conditions Operating Humidity (0 PCT to 95 PCT) EU RoHS Indicator C Frequency Response 32 kHz Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 9.5000 in Height [Metric] 6.6675 cm Lamp Type LED Length 11.7500 in Length [Metric] 11.2725 cm Material Plastic Mounting Ceiling Response Frequency 32 kHz Sensing Distance 2000 ft² Size 4.20 (Dia) x 1.373 D in Standard ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Ultrasonic UNSPSC 41111961 UPC 11 07847750865 UPC 12 078477508657 Width 4.44 in Width [Metric] 11.2725 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 2000 ft² Mounting Type Ceiling Sensor Type Ultrasonic Viewing Angle 360 ° Voltage Rating 24 VDC Commercial 5-Year Limited Warranty, Small Size, Accurate, Consistent Switching Self adjusting: an internal microprocessor automatically analyzes, evaluates and adjusts time delay and U/S settings for maximum energy savings Custom off-white color matched for shaded ceilings Fast, simple installation: easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360 deg rotation and flexibility Maximum reliability, low cost: digital circuitry uses a minimum of components Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity Non-volatile memory: learned and adjusted settings saved in protected memory are not lost during power outages Walk-through: provides increased energy savings by decreasing the time delay to 2.5min when someone momentarily walks through the monitored space Ambient light recognition: a light sensor prevents lights from turning on when the room is adequately lit by natural light Ultrasonic (U/S) components: one or two U/S transducers and one or two narrow bandwidth receivers each 16mm in diameter 0 - 95 percent non-condensing, for indoor use only relative humidity High-impact plastic material
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 30 mA |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSC20-UAW |
| Color | White |
| Connection Type | Wired |
| Control Output | Automatic On/Automatic Off |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.2 in Dia x 1.373 in D |
| Environmental Conditions | Operating Humidity (0 PCT to 95 PCT) |
| EU RoHS Indicator | C |
| Frequency Response | 32 kHz |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 9.5000 in |
| Height [Metric] | 6.6675 cm |
| Lamp Type | LED |
| Length | 11.7500 in |
| Length [Metric] | 11.2725 cm |
| Material | Plastic |
| Mounting | Ceiling |
| Response Frequency | 32 kHz |
| Sensing Distance | 2000 ft² |
| Size | 4.20 (Dia) x 1.373 D in |
| Standard | ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Ultrasonic |
| UNSPSC | 41111961 |
| UPC 11 | 07847750865 |
| UPC 12 | 078477508657 |
| Width | 4.44 in |
| Width [Metric] | 11.2725 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 2000 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Ultrasonic |
| Viewing Angle | 360 ° |
| Voltage Rating | 24 VDC |
| Commercial |
| 5-Year Limited Warranty, Small Size, Accurate, Consistent Switching |
| Self adjusting: an internal microprocessor automatically analyzes, evaluates and adjusts time delay and U/S settings for maximum energy savings |
| Custom off-white color matched for shaded ceilings |
| Fast, simple installation: easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360 deg rotation and flexibility |
| Maximum reliability, low cost: digital circuitry uses a minimum of components |
| Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity |
| Non-volatile memory: learned and adjusted settings saved in protected memory are not lost during power outages |
| Walk-through: provides increased energy savings by decreasing the time delay to 2.5min when someone momentarily walks through the monitored space |
| Ambient light recognition: a light sensor prevents lights from turning on when the room is adequately lit by natural light |
| Ultrasonic (U/S) components: one or two U/S transducers and one or two narrow bandwidth receivers each 16mm in diameter |
| 0 - 95 percent non-condensing, for indoor use only relative humidity |
| High-impact plastic material |
