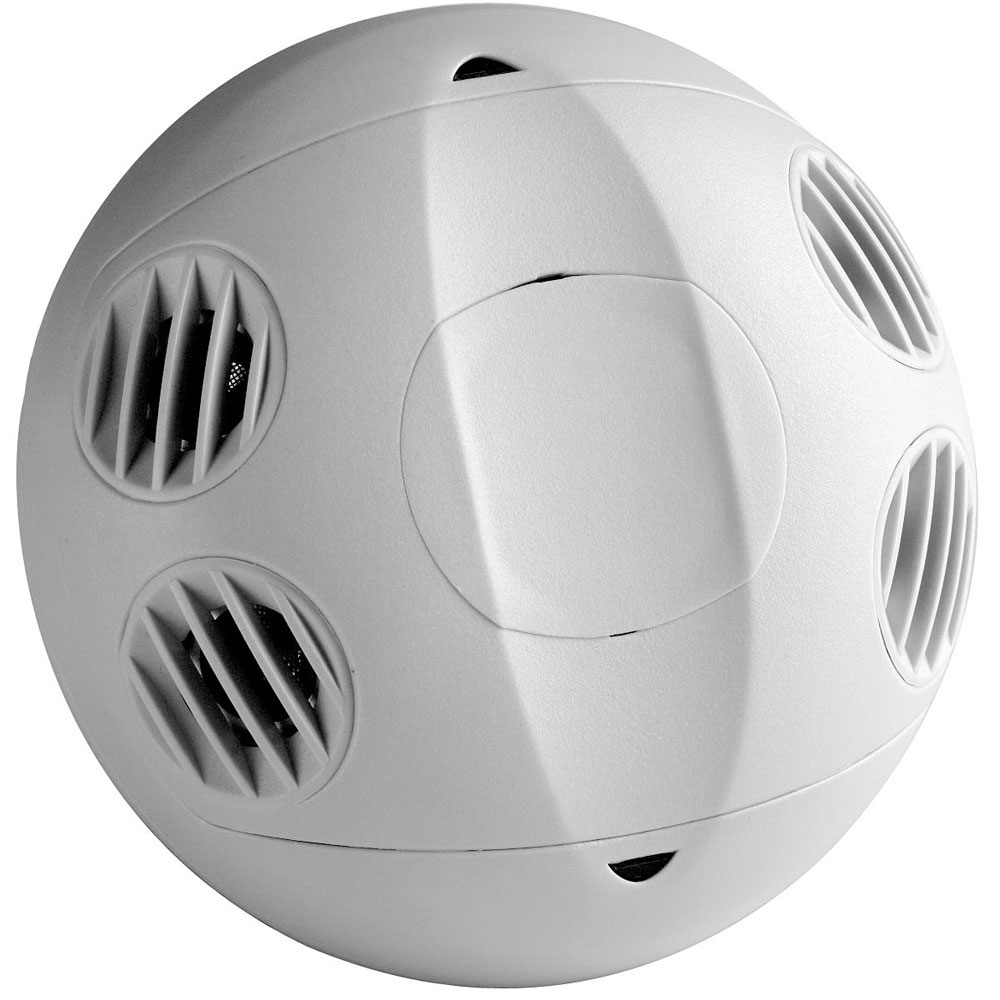

Leviton® OSC10-U0W Low Voltage Ceiling Mount Occupancy Sensors, 24 VAC, Ultrasonic Sensor, 1000 sq-ft Coverage, 360 deg
Custom_Product_Images_Illustration
Leviton® OSC10-U0W Low Voltage Ceiling Mount Occupancy Sensors, 24 VAC, Ultrasonic Sensor, 1000 sq-ft Coverage, 360 deg
SKU213353
MFGR #OSC10-U0W
Your Cost: $161.98/ea
Leviton's ceiling mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in ultrasonic or infrared. Select models interface with BAS/BMS, HVAC and other systems.
Leviton's ceiling mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in ultrasonic or infrared. Select models interface with BAS/BMS, HVAC and other systems.
Amperage Rating 35 mA Application Commercial ARRA Compliant C Brand Leviton® Buy American Compliant C Catalog Number OSC10-U0W Color Off-White Connection Type Wired Control Output Automatic On/Automatic Off Country of Origin CN Coverage 1000 ft² Currency USD Dimensions 4.2 in Dia x 1.34 in D Environmental Conditions Operating Humidity (0 PCT to 95 PCT) EU RoHS Indicator C Gross Weight Per Pack 0.5700 lb Gross Weight per Pack Metric 0.24 Gross Weight UOM Metric kg Height 9.5000 in Height [Metric] 6.6675 cm Lamp Type LED Length 11.7500 in Length [Metric] 11.2725 cm Manufacturer Leviton Manufacturing Co., Inc. Material Plastic Mounting Ceiling Mounting Type Ceiling Response Frequency 40 kHz Sensing Distance 1000 ft² Sensor Type Ultrasonic Size 4.20 (Dia) x 1.34 D in Standard ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 Stock Status NONSTOCK Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Ultrasonic UNSPSC 41111961 UPC 11 07847718056 UPC 12 078477180563 Viewing Angle 360 ° Voltage Rating 24 VDC Width 4.44 in Width [Metric] 11.2725 cm Commercial 5-Year Limited Warranty, Accurate, Consistent Switching Self adjusting: an internal microprocessor automatically analyzes, evaluates and adjusts time delay and U/S settings for maximum energy savings Custom off-white color matched for shaded ceilings Fast, simple installation: easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360 deg rotation and flexibility Maximum reliability, low cost: digital circuitry uses a minimum of components Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity Non-volatile memory: learned and adjusted settings saved in protected memory are not lost during power outages Walk-through: provides increased energy savings by decreasing the time delay to 2.5min when someone momentarily walks through the monitored space Ambient light recognition: a light sensor prevents lights from turning on when the room is adequately lit by natural light Ultrasonic (U/S) components: one or two U/S transducers and one or two narrow bandwidth receivers each 16mm in diameter 0 - 95 percent non-condensing, for indoor use only relative humidity High-impact plastic material
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 35 mA |
| Application | Commercial |
| ARRA Compliant | C |
| Brand | Leviton® |
| Buy American Compliant | C |
| Catalog Number | OSC10-U0W |
| Color | Off-White |
| Connection Type | Wired |
| Control Output | Automatic On/Automatic Off |
| Country of Origin | CN |
| Coverage | 1000 ft² |
| Currency | USD |
| Dimensions | 4.2 in Dia x 1.34 in D |
| Environmental Conditions | Operating Humidity (0 PCT to 95 PCT) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.5700 lb |
| Gross Weight per Pack Metric | 0.24 |
| Gross Weight UOM Metric | kg |
| Height | 9.5000 in |
| Height [Metric] | 6.6675 cm |
| Lamp Type | LED |
| Length | 11.7500 in |
| Length [Metric] | 11.2725 cm |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Material | Plastic |
| Mounting | Ceiling |
| Mounting Type | Ceiling |
| Response Frequency | 40 kHz |
| Sensing Distance | 1000 ft² |
| Sensor Type | Ultrasonic |
| Size | 4.20 (Dia) x 1.34 D in |
| Standard | ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 |
| Stock Status | NONSTOCK |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Ultrasonic |
| UNSPSC | 41111961 |
| UPC 11 | 07847718056 |
| UPC 12 | 078477180563 |
| Viewing Angle | 360 ° |
| Voltage Rating | 24 VDC |
| Width | 4.44 in |
| Width [Metric] | 11.2725 cm |
| Commercial |
| 5-Year Limited Warranty, Accurate, Consistent Switching |
| Self adjusting: an internal microprocessor automatically analyzes, evaluates and adjusts time delay and U/S settings for maximum energy savings |
| Custom off-white color matched for shaded ceilings |
| Fast, simple installation: easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360 deg rotation and flexibility |
| Maximum reliability, low cost: digital circuitry uses a minimum of components |
| Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity |
| Non-volatile memory: learned and adjusted settings saved in protected memory are not lost during power outages |
| Walk-through: provides increased energy savings by decreasing the time delay to 2.5min when someone momentarily walks through the monitored space |
| Ambient light recognition: a light sensor prevents lights from turning on when the room is adequately lit by natural light |
| Ultrasonic (U/S) components: one or two U/S transducers and one or two narrow bandwidth receivers each 16mm in diameter |
| 0 - 95 percent non-condensing, for indoor use only relative humidity |
| High-impact plastic material |
