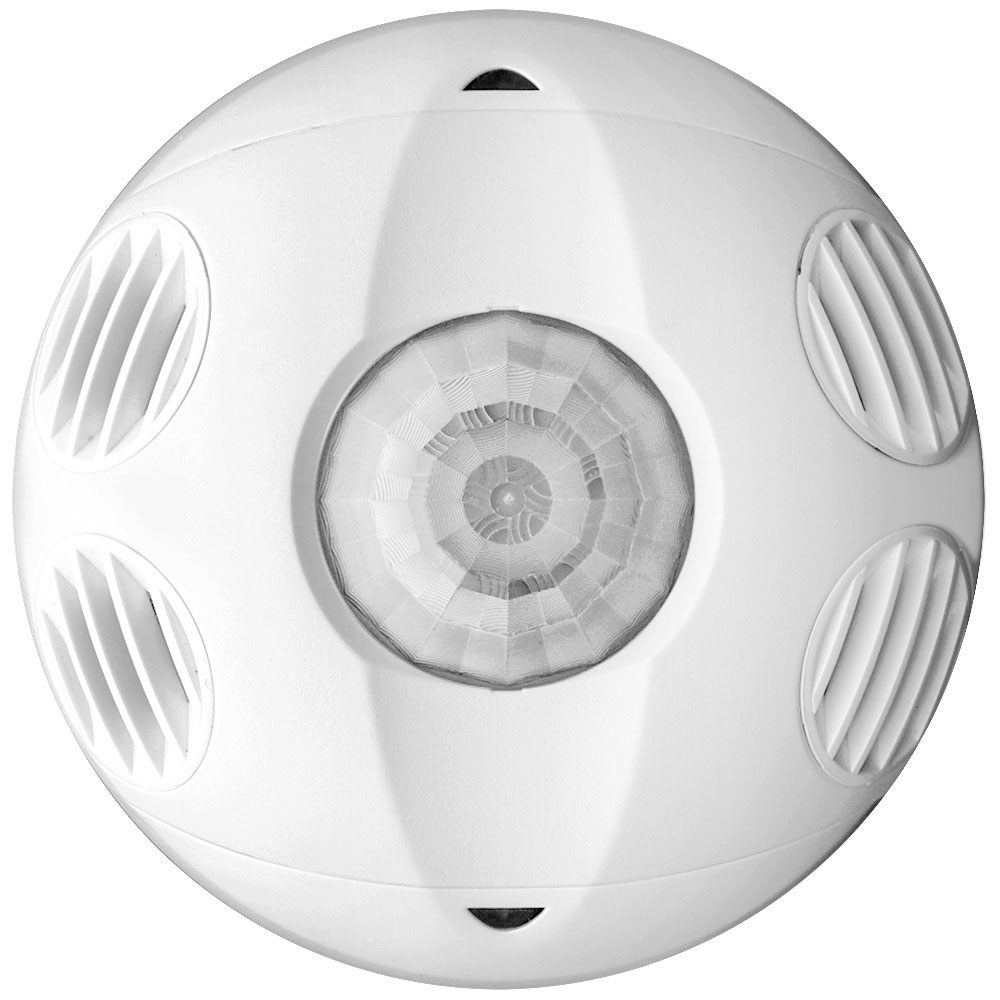

Leviton® OSC10-RMW Low Voltage Ceiling Mount Occupancy Sensors With Isolated Relay, 24 VAC, 1000 sq-ft Coverage
Custom_Product_Images_Illustration
Leviton® OSC10-RMW Low Voltage Ceiling Mount Occupancy Sensors With Isolated Relay, 24 VAC, 1000 sq-ft Coverage
SKU720432
MFGR #OSC10-RMW
Your Cost: $211.71/ea
Leviton's ceiling mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in ultrasonic or infrared. Select models interface with BAS/BMS, HVAC and other systems.
Leviton's ceiling mount occupancy sensors are low voltage occupancy detectors that work in conjunction with various Leviton products. The motion sensors main function is to turn the lights on or maintain the lights on while movement is detected. Available in ultrasonic or infrared. Select models interface with BAS/BMS, HVAC and other systems.
Amperage Rating 30 mA Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number OSC10-RMW Color Global White Connection Type Wired Control Output Automatic On/Automatic Off Country of Origin CN Currency USD Dimensions 4.2 in Dia x 1.571 in D Environmental Conditions Operating Humidity (0 PCT to 95 PCT) EU RoHS Indicator C Gross Weight Per Pack 0.6300 lb Gross Weight per Pack Metric 0.27 Gross Weight UOM Metric kg Height 9.5000 in Height [Metric] 6.6675 cm Lamp Type LED Length 11.7500 in Length [Metric] 11.2725 cm Material Plastic Mounting Ceiling Response Frequency 40 kHz Sensing Distance 1000 ft² Size 4.20 (Dia) x 1.571 D in Standard ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 Temperature Rating 0 to +40 °C Time Delay 30 s to 30 min Type Passive Infrared;Ultrasonic UNSPSC 41111961 UPC 11 07847754350 UPC 12 078477543504 Width 4.44 in Width [Metric] 11.2725 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 1000 ft² Mounting Type Ceiling Sensor Type PIR/Ultrasonic Viewing Angle 360 ° Voltage Rating 24 VDC Commercial 5-Year Limited Warranty, Accurate, Consistent Switching Multi-technology: by using both PIR and U/S signals, the sensor minimizes false triggering for high reliability Isolated relay: supports HVAC or other class 2 low voltage signals Self adjusting: internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time delay, performance is kept at a maximum and user complaints are eliminated Custom white color matched for most common daylight harvesting architecture Additional mid-range lens assembly included for applications with mounting heights between 12 - 20 ft Fast, simple Installation: easy ceiling mount, twistlock sensor attachment for 360 deg rotation and flexibility Small motion Sensitivity: the ultrasonic technology provides excellent small motion sensitivity Non-Volatile memory: learned and adjusted settings saved in protected memory are not lost during power outages Walk-through: provides increased energy savings by decreasing the time delay to 2.5min when someone momentarily walks through the monitored space Ultrasonic (U/S) components: one or two U/S transducers and one or two narrow bandwidth receivers each 16mm in diameter 0 - 95% non-condensing, for indoor use only relative humidity High-impact plastic material 1 A at 30 VDC/VAC load
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 30 mA |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | OSC10-RMW |
| Color | Global White |
| Connection Type | Wired |
| Control Output | Automatic On/Automatic Off |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.2 in Dia x 1.571 in D |
| Environmental Conditions | Operating Humidity (0 PCT to 95 PCT) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6300 lb |
| Gross Weight per Pack Metric | 0.27 |
| Gross Weight UOM Metric | kg |
| Height | 9.5000 in |
| Height [Metric] | 6.6675 cm |
| Lamp Type | LED |
| Length | 11.7500 in |
| Length [Metric] | 11.2725 cm |
| Material | Plastic |
| Mounting | Ceiling |
| Response Frequency | 40 kHz |
| Sensing Distance | 1000 ft² |
| Size | 4.20 (Dia) x 1.571 D in |
| Standard | ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANCE CompliantASHRAE 90.1California Title 24 CompliantcULus 9034FCC ApprovedNOM 057 |
| Temperature Rating | 0 to +40 °C |
| Time Delay | 30 s to 30 min |
| Type | Passive Infrared;Ultrasonic |
| UNSPSC | 41111961 |
| UPC 11 | 07847754350 |
| UPC 12 | 078477543504 |
| Width | 4.44 in |
| Width [Metric] | 11.2725 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 1000 ft² |
| Mounting Type | Ceiling |
| Sensor Type | PIR/Ultrasonic |
| Viewing Angle | 360 ° |
| Voltage Rating | 24 VDC |
| Commercial |
| 5-Year Limited Warranty, Accurate, Consistent Switching |
| Multi-technology: by using both PIR and U/S signals, the sensor minimizes false triggering for high reliability |
| Isolated relay: supports HVAC or other class 2 low voltage signals |
| Self adjusting: internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time delay, performance is kept at a maximum and user complaints are eliminated |
| Custom white color matched for most common daylight harvesting architecture |
| Additional mid-range lens assembly included for applications with mounting heights between 12 - 20 ft |
| Fast, simple Installation: easy ceiling mount, twistlock sensor attachment for 360 deg rotation and flexibility |
| Small motion Sensitivity: the ultrasonic technology provides excellent small motion sensitivity |
| Non-Volatile memory: learned and adjusted settings saved in protected memory are not lost during power outages |
| Walk-through: provides increased energy savings by decreasing the time delay to 2.5min when someone momentarily walks through the monitored space |
| Ultrasonic (U/S) components: one or two U/S transducers and one or two narrow bandwidth receivers each 16mm in diameter |
| 0 - 95% non-condensing, for indoor use only relative humidity |
| High-impact plastic material |
| 1 A at 30 VDC/VAC load |
