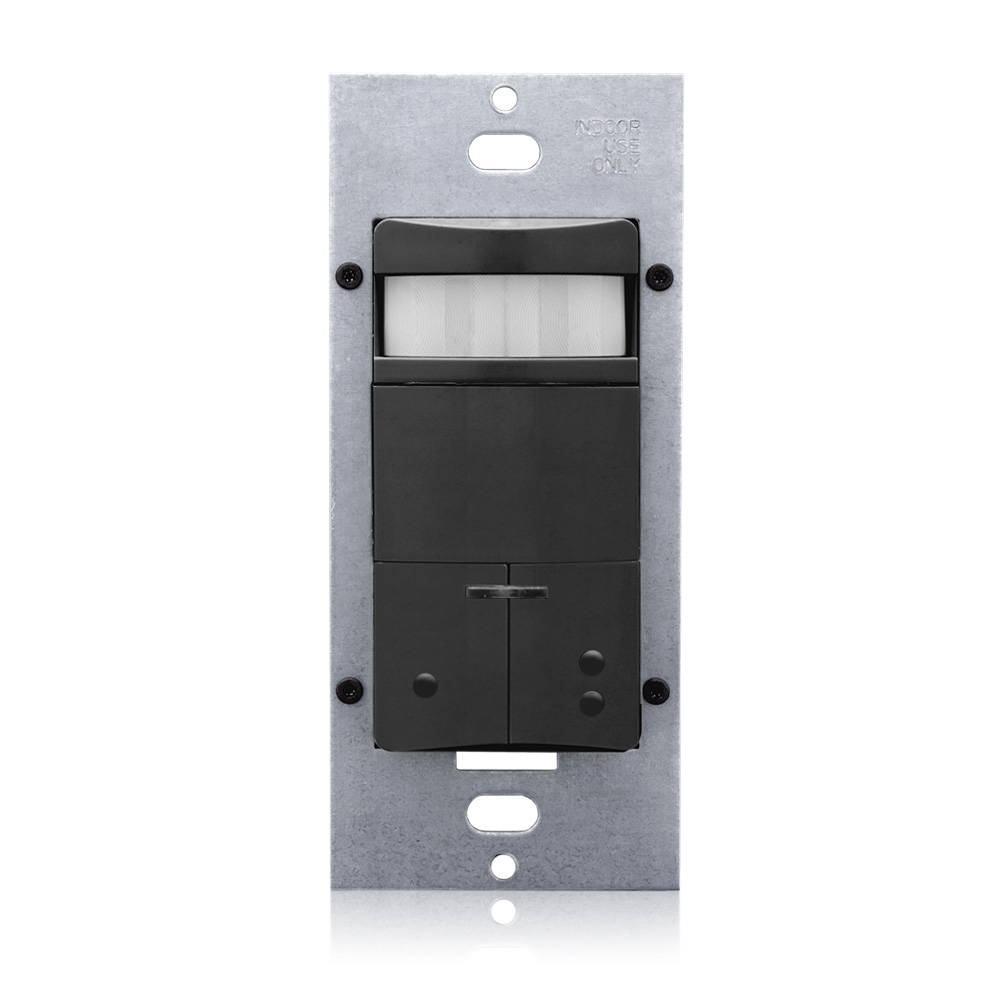

Leviton® ODS0D-INE 1-Pole Self-Adjusting Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor, 2100 sq-ft Coverage
Custom_Product_Images_Illustration
Leviton® ODS0D-INE 1-Pole Self-Adjusting Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor, 2100 sq-ft Coverage
SKU834243
MFGR #ODS0D-INE
$/ea
The ODS0D uses passive infrared (PIR) technology to monitor a room for occupancy through a segmented fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and switches two separate lighting loads ON. The lights will remain ON as long as there is an occupant moving through the sensor zones.
The ODS0D uses passive infrared (PIR) technology to monitor a room for occupancy through a segmented fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and switches two separate lighting loads ON. The lights will remain ON as long as there is an occupant moving through the sensor zones.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number ODS0D-INE Control Output Manual On/Automatic Off Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 3.6000 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Height [Metric] 11.7475 cm Lamp Type Fluorescent/Incandescent Length [Metric] 7.3025 cm Mounting Wall Response Frequency 50/60 Hz Standard cULus Listed;CEC Title 24 Compliant FCC Compliant;NAFTA (CF434) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCEC Title 20/24 CompliantFCC ApprovedNAFTA CF434 Sub Brand Decora Temperature Rating 0 to 50 °C Type Occupancy Sensor;Single-Pole Switch;Dual Relay UNSPSC 45111808 UPC 11 07847748688 UPC 12 078477486887 Width 1.88 in Width [Metric] 4.7625 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Color Black Mounting Type Wall Sensor Type PIR Viewing Angle 180 ° Frequency Rating 50/60 Hz Replaced Catalog Number ODS0D-IAE
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ODS0D-INE |
| Control Output | Manual On/Automatic Off |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 3.6000 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Height [Metric] | 11.7475 cm |
| Lamp Type | Fluorescent/Incandescent |
| Length [Metric] | 7.3025 cm |
| Mounting | Wall |
| Response Frequency | 50/60 Hz |
| Standard | cULus Listed;CEC Title 24 Compliant FCC Compliant;NAFTA (CF434) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus ListedCEC Title 20/24 CompliantFCC ApprovedNAFTA CF434 |
| Sub Brand | Decora |
| Temperature Rating | 0 to 50 °C |
| Type | Occupancy Sensor;Single-Pole Switch;Dual Relay |
| UNSPSC | 45111808 |
| UPC 11 | 07847748688 |
| UPC 12 | 078477486887 |
| Width | 1.88 in |
| Width [Metric] | 4.7625 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Color | Black |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 180 ° |
| Frequency Rating | 50/60 Hz |
| Replaced Catalog Number | ODS0D-IAE |
