Leviton®

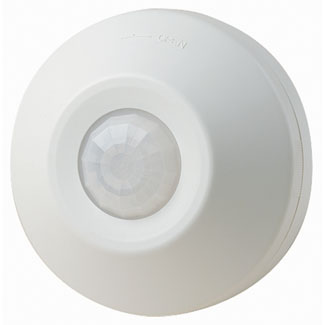

Leviton® ODC0S-I2W Line Voltage Ceiling Mount Occupancy Sensors, 220 VAC, Passive Infrared Sensor, 530 sq-ft Coverage
Custom_Product_Images_Illustration
Leviton®
Leviton® ODC0S-I2W Line Voltage Ceiling Mount Occupancy Sensors, 220 VAC, Passive Infrared Sensor, 530 sq-ft Coverage
SKU328895
MFGR #ODC0S-I2W
Your Cost: $108.06/ea
List: Leviton's self contained passive infrared ceiling occupancy sensor is the cost-effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. Available in 120V, 220V and 277V versions, the ODC0S-I is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. The self contained ceiling sensor does not require an external control unit for power or switching the load on and off.
Leviton's self contained passive infrared ceiling occupancy sensor is the cost-effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. Available in 120V, 220V and 277V versions, the ODC0S-I is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. The self contained ceiling sensor does not require an external control unit for power or switching the load on and off.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number ODC0S-I2W Country of Origin CN Environmental Conditions Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (20 to 90 PCT) EU RoHS Indicator C Frequency Response 50 Hz Gross Weight Per Pack 0.7100 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Height 4.62 in Height [Metric] 11.7475 cm Length 4.50 in Length [Metric] 11.4300 cm Mounting Ceiling Sensing Distance 530 ft² Size 4.3 (Dia) x 2.15 H in Standard UL Listed;CSA Certified;Complies with CEC Title 24, Complies with FCC Regulations Standards UL Listed, CSA Certified, Complies with CEC Title 24, Complies with FCC Regulations, RoHS compliant Temperature Rating 0 to +50 °C Type Passive Infrared UNSPSC 41111961 UPC 11 07847725436 UPC 12 078477254363 Width 3.12 in Width [Metric] 7.9375 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Voltage Rating 220 V Commercial Adjustable Delayed-OFF Time Setting Between 20 Seconds and 15 Minutes Allows Custom Adjustment for Maximum Savings, Segmented Fresnel Lens Contains 79 Segments for Optimum Sensitivity and Detection Performance, 5-Year Limited Warrenty Sensor and switching relay in one unit-reduces labor and need for additional materials 360 deg field-of-view with approximately 530 sq. ft. of coverage when mounted at 8 ft This reduces the number of additional sensors typically required in many spaces Light sensor - an ambient light override option can be set between 2 and 500 foot candles and full brightness to prevent the sensor from switching lights-on when ample natural sunlight is available. hold-off feature Segmented fresnel lens contains 79 segments for optimum sensitivity and detection performance A standard A/C toggle switch may be used to provide manual-off override so that lights may be switched off Red LED indicator light flashes when sensor detects motion, to verify power placement and function of sensor at installation -10 to 185 deg C storage temperature 20 - 90% relative humidity 1000 W load rating incandescent, 500 VA load rating fluorescent High-impact plastic material
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ODC0S-I2W |
| Country of Origin | CN |
| Environmental Conditions | Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (20 to 90 PCT) |
| EU RoHS Indicator | C |
| Frequency Response | 50 Hz |
| Gross Weight Per Pack | 0.7100 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Height | 4.62 in |
| Height [Metric] | 11.7475 cm |
| Length | 4.50 in |
| Length [Metric] | 11.4300 cm |
| Mounting | Ceiling |
| Sensing Distance | 530 ft² |
| Size | 4.3 (Dia) x 2.15 H in |
| Standard | UL Listed;CSA Certified;Complies with CEC Title 24, Complies with FCC Regulations |
| Standards | UL Listed, CSA Certified, Complies with CEC Title 24, Complies with FCC Regulations, RoHS compliant |
| Temperature Rating | 0 to +50 °C |
| Type | Passive Infrared |
| UNSPSC | 41111961 |
| UPC 11 | 07847725436 |
| UPC 12 | 078477254363 |
| Width | 3.12 in |
| Width [Metric] | 7.9375 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Voltage Rating | 220 V |
| Commercial |
| Adjustable Delayed-OFF Time Setting Between 20 Seconds and 15 Minutes Allows Custom Adjustment for Maximum Savings, Segmented Fresnel Lens Contains 79 Segments for Optimum Sensitivity and Detection Performance, 5-Year Limited Warrenty |
| Sensor and switching relay in one unit-reduces labor and need for additional materials |
| 360 deg field-of-view with approximately 530 sq. ft. of coverage when mounted at 8 ft |
| This reduces the number of additional sensors typically required in many spaces |
| Light sensor - an ambient light override option can be set between 2 and 500 foot candles and full brightness to prevent the sensor from switching lights-on when ample natural sunlight is available. hold-off feature |
| Segmented fresnel lens contains 79 segments for optimum sensitivity and detection performance |
| A standard A/C toggle switch may be used to provide manual-off override so that lights may be switched off |
| Red LED indicator light flashes when sensor detects motion, to verify power placement and function of sensor at installation |
| -10 to 185 deg C storage temperature |
| 20 - 90% relative humidity |
| 1000 W load rating incandescent, 500 VA load rating fluorescent |
| High-impact plastic material |
