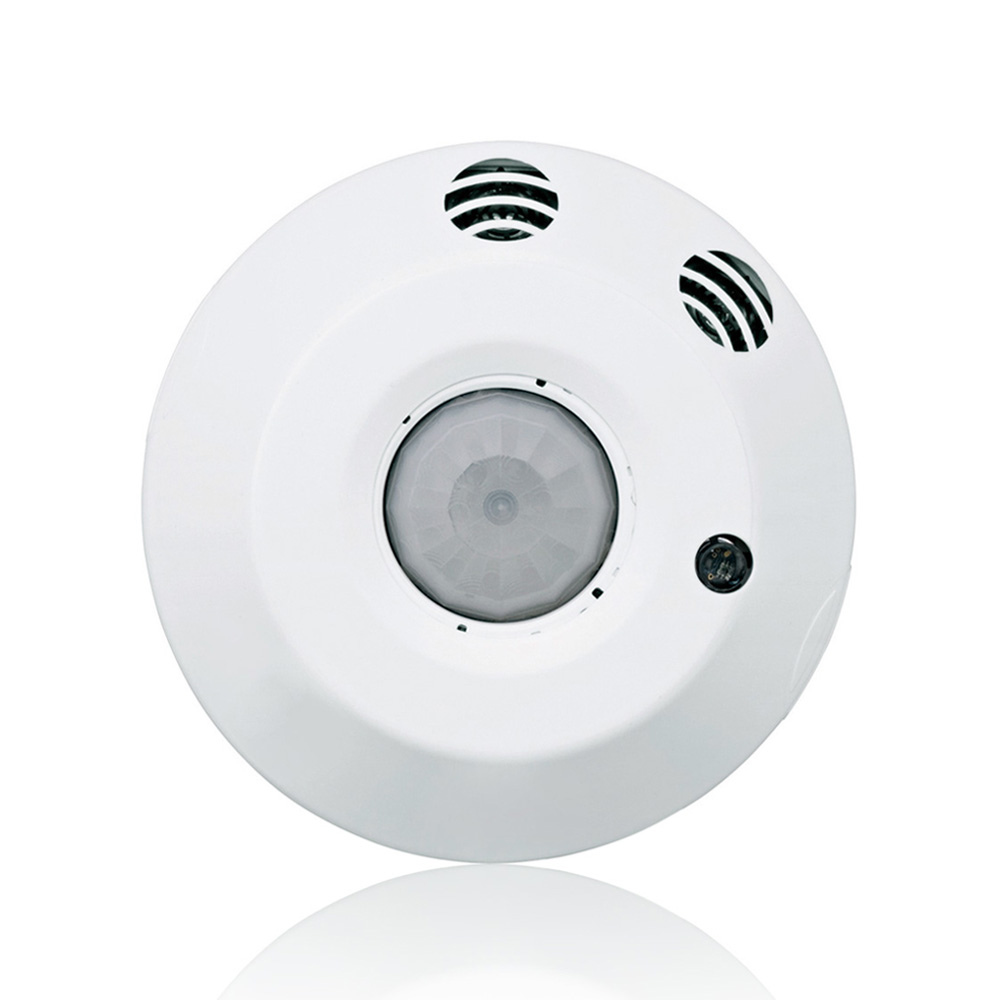

Leviton® O2C05-MDW Provolt™ O2C Dual Relay Line Voltage Occupancy Sensor, 120/230/277 VAC, Passive Infrared/Ultrasonic Sensor
Ceiling Mount Occupancy Sensors
950916
MFG #: O2C05-MDW
Leviton®
242.13000
/ ea
The Leviton Provolt™ dual relay occupancy sensors combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits.
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - Leviton_O2C05_MDW_Instruction_Sheet.pdf(Install Instructions URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 2 URL - Leviton_O2C05_MDW_Datasheet.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - 10962_ID-SPE-v1-O2C05-MDW.pdf(Spec Sheet URL)
- Spec Sheet URL - O2C05-MDW.pdf?products=O2C05-MDW&locale=en(Spec Sheet URL)
- Tech Bulletin URL - Leviton_O2C04_IDW_Technical_Bulletin.pdf(Tech Bulletin URL)
- Video - https://youtube.com/embed/zv5tNFN-q9w(Video)
- Applications
- Features
| Commercial |
| Auto-Adapting |
| Utilizes sensors which emit non-audible sound waves and sense movement, any movement within the sensor's field of view causes a shift in the original emitted frequency |
| The sensor identifies the change as movement and controls light accordingly |
| U/S models are immune to external ultrasonic signals from other sources such as white boards delivering uninterrupted performance |
| Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use |
| Vacancy sensing timeouts delayed OFF timer, exclusive Walk-through feature, time delay and saved settings are protected during power outages and will return to the last known state |
| Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported |
| Presentation mode allows user to turn lights OFF and keep them OFF while the room is occupied |
| Test mode for simplified commissioning |
| Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility |
| Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns |
| Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
| Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays |
| Industry-exclusive "fail-safe" circuitry - in the event of product failure, return-to-closed feature causes the relay to default on which eliminates life safety concerns |
| Industry-exclusive high inrush stability technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
| Robust and reliable mechanically held 10 A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays |
| Visual LED indicators for all states - green blinks during U/S detection and is solid during auto-calibration, yellow blinks during test mode; solid with emergency/BMS input, blue blinks when knob settings are changed and during photocell override |
| -15 to 160 deg C storage temperature, 0 to 90% non-condensing humidity |
| Extended range lens installed |
