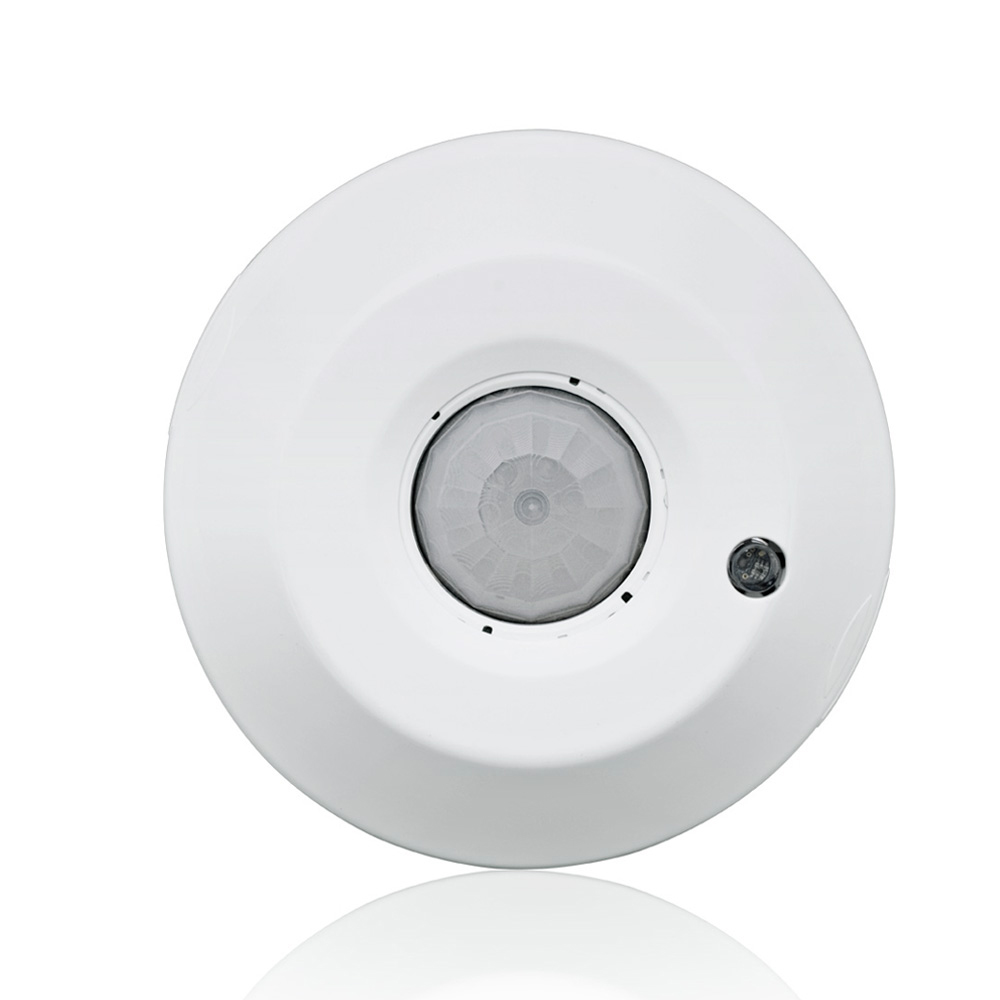

Leviton® O2C04-IDW Line Voltage Ceiling Mount Occupancy Sensors With Integrated Photocell, 120/230/277 VAC, 360 deg
Ceiling Mount Occupancy Sensors
858339
MFG #: O2C04-IDW
Leviton®
196.46000
/ ea
The Leviton O2C dual relay occupancy sensors combine line voltage dual relay occupancy sensors and photocells into a self contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low cost, efficient energy solution for new construction and retrofits. For true daylight harvesting applications, integrated photocells provide consistent daylight design levels by actively switching the connected load(s) ON and off in response to available natural light to maximize energy savings. Vacancy timers continually analyze and adjust to changing conditions using the latest microprocessor based technology to optimize performance. Auto ON/ auto-off automatically turns lights-on and keeps them ON when occupancy is detected and automatically turns lights off when the space is vacant or unoccupied. Wire terminals allow for simple connection to a line voltage circuit and are ideal for existing buildings with limited access to wiring and new construction.
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - Leviton_O2C04_IDW_Installation_Instructions.pdf(Install Instructions URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - Leviton_O2C04_IDW_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet 2 URL - Leviton_O2C04_IDW_Datasheet.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - 10962_ID-SPE-v1-O2C04-IDW.pdf(Spec Sheet URL)
- Spec Sheet URL - O2C04-IDW.pdf?products=O2C04-IDW&locale=en(Spec Sheet URL)
- Tech Bulletin URL - Leviton_O2C04_IDW_Technical_Bulletin.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/jK48BrNhHBw&rel=0(Video)
- Applications
- Features
Commercial |
Self-Adjusting |
Uses industry exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems |
A fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor |
Auto temperature adjusts tech sensitivity for optimal detection/operation |
Auto-adapting time delay and sensitivity are continually adjusted to occupancy pattern of use |
Vacancy sensing timeouts delayed OFF timer, exclusive Walk-through feature |
Industry exclusive self-configuring local manual switch input, momentary or maintained switches are supported |
Presentation mode allows user to turn lights OFF and keep them OFF while the room is occupied |
Test mode for simplified commissioning |
Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility |
Industry exclusive "fail safe" circuitry in the event of product failure, return to closed feature causes the relay to default ON which eliminates life safety concerns |
Industry exclusive HIS (high inrush stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service |
High-Density lens installed |
8 A electronic ballast, 800 W tungsten, 800 VA ballast 1/4 hp motor at 120 VAC 50/60 Hz, 6A/6AX electronic ballast, magnetic ballast, tungsten 1/3 hp motor at 230 VAC 50 Hz, 5A electronic ballast 1200 VA ballast, 1/3 hp motor at 277 VAC 50/60 Hz |
Mid-range included |
Electronic ballast/magnetic ballast load type |
High-impact plastic material |
1/4 hp at 120 VAC, 1/3 hp at 230 VAC, 1/3 hp at 277 VAC power rating |
