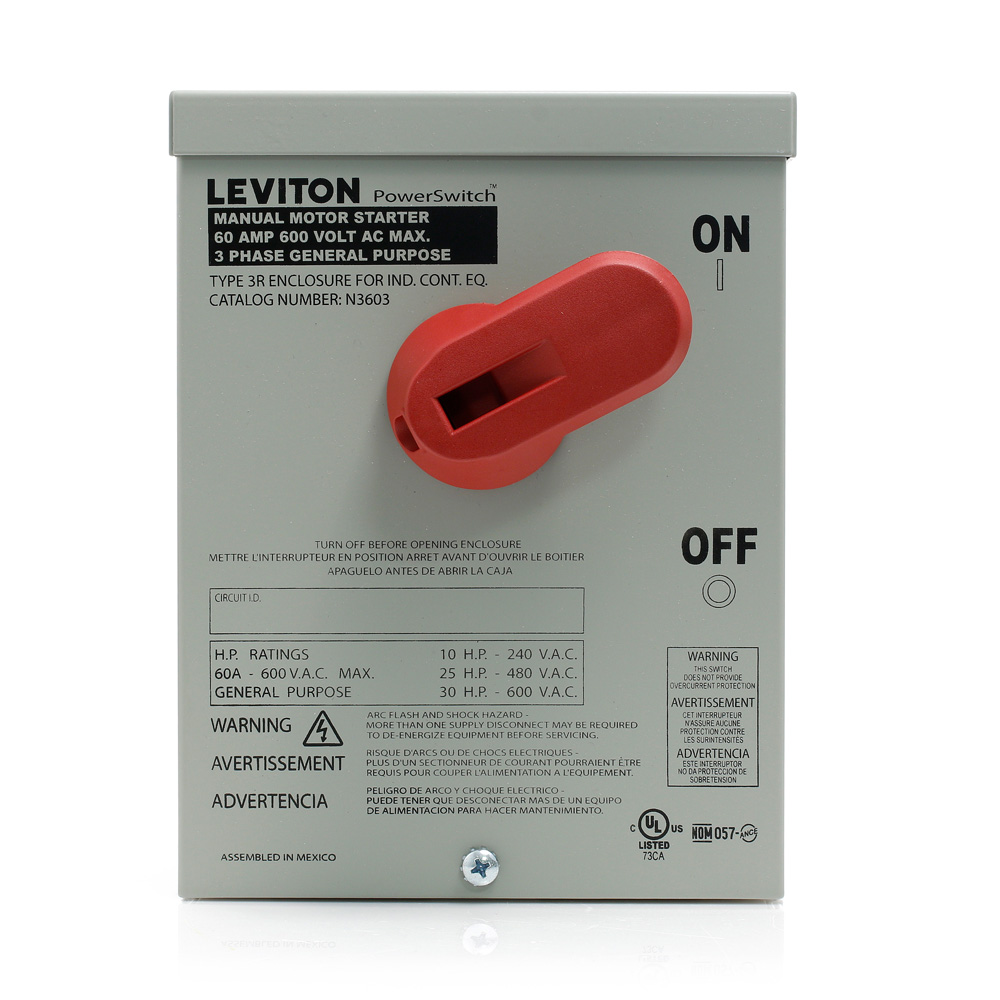

Leviton® N3603 Non-Grounding AC Manual Motor Starting Switch, 600 VAC, 60 A, 30 hp
Toggle Disconnects
460440
MFG #: N3603
Leviton®
268.09000
/ ea
Leviton®'s industrial Grade AC manual motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Owners Manual URL - Powerswitch_N1302_DS_Manual.pdf(Owners Manual URL)
- Spec Sheet 1 URL - Powerswitch_N3603_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=N3603§ion=40132&minisite=10251(Spec Sheet URL)
- Tech Bulletin URL - MSDS.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10962_KAS1C85JQUVIBYFX.gif(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=33230&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial |
| All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing |
| Positive contact design and cam-driven mechanism enhances fast-make/slow-break |
| Silver-alloy contacts for maximum conductivity and service life |
| Multiple termination design accepts back and side wiring, terminal clamps or ring terminals |
| Oversized #10 triple drive terminal screws provide greater torque and resist backing out from vibration |
| Insulating barrier between terminals provide isolation from each phase |
| Nickel plated brass mounting strap for superior corrosion resistance |
| Large toggle provides positive actuation, even with gloved hand |
| AC manual motor starting switch |
| 3-phase |
| Metal black enclosure |
| Zinc plated steel, triple combination terminal screw |
| Suitable as motor disconnect |
| 10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 VAC power ratings |
