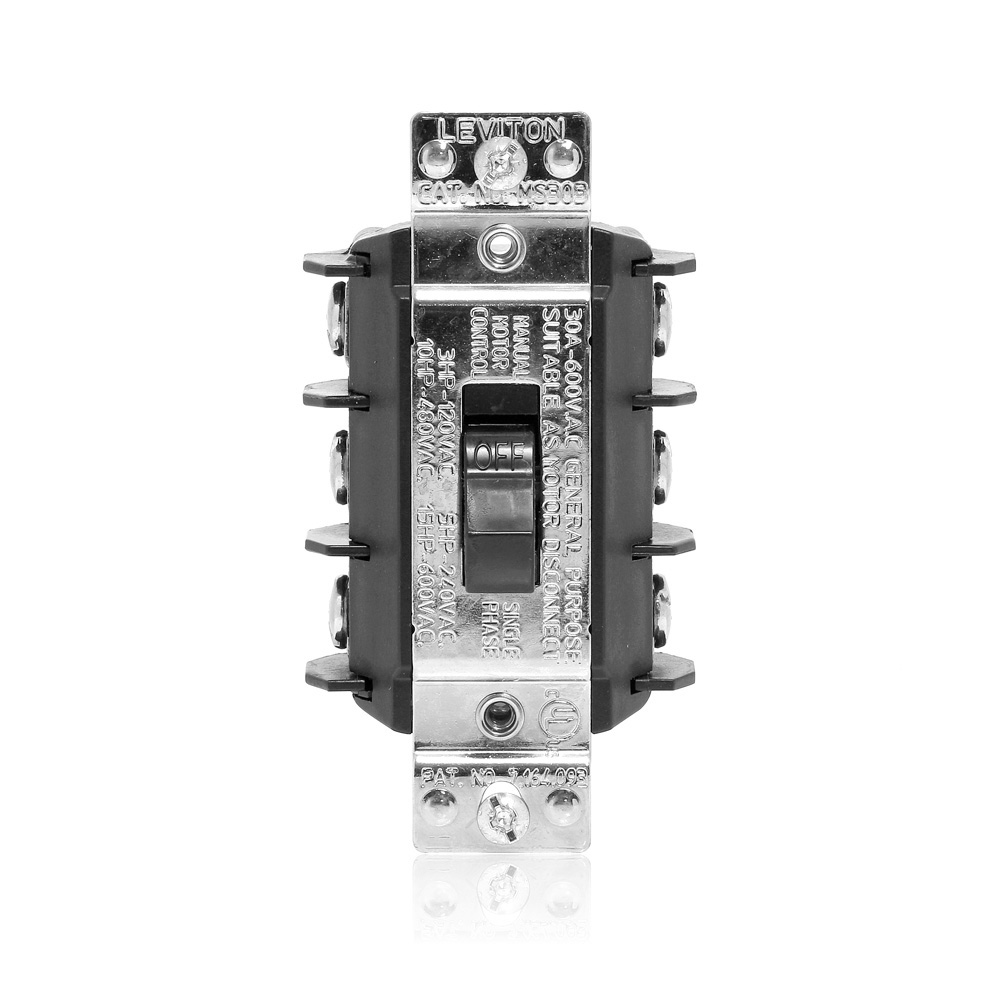

Leviton® MS303-DSS AC Manual Motor Starter Switch, 600 VAC, 30 A, 20 hp, TPST
Custom_Product_Images_Illustration
Leviton® MS303-DSS AC Manual Motor Starter Switch, 600 VAC, 30 A, 20 hp, TPST
SKU571237
MFGR #MS303-DSS
Your Cost: $40.00/ea
List: Levitons Industrial Grade AC Manual Motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Levitons Industrial Grade AC Manual Motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Action TP Actuator Toggle Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number MS303-DSS Color Black Connection Back Wired;Side Wired Contact Rating 30 A at 600 VAC Country of Origin MX Currency USD Depth 2.15 in Dimensions 3.75 in H x 2.03 in W x 2.15 in D Enclosure NEMA WD-1/WD-6 Environmental Conditions Flammability (Rated V-0 per UL94) EU RoHS Indicator C Gross Weight Per Pack 0.3700 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Height 6.6250 in Height [Metric] 10.4775 cm Length 9.0000 in Length [Metric] 5.7150 cm Material Polyester Number Of Poles 3 Operating Cycles 6000 Cycles Operating Temperature -40 to +60 °C Size 3.75 H x 23 W x 2.15 D in Standard NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73cUL per CSA C22.2 No. 111 (File E63969) CertifiedNOM-ANCE CertifiedUL 60947-4-1 Supersedes UL 508UL94 V-0 Flammability Rating Switch Type Toggle Terminal Type Back/Side Wired Screw Type Short Toggle;Three-Pole AC Motor Starter Switch UNSPSC 39122211 UPC 11 07847737418 UPC 12 078477374184 Width 2.31 in Width [Metric] 5.8750 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Contact Configuration TP Power Rating 20 hp Voltage Rating 600 VAC Commercial All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing Positive-contact design and cam-driven mechanism enhances fast-make/slow-break Silver-alloy contacts for maximum conductivity and service life Multiple termination design accepts back and side wiring, terminal clamps or ring terminals Oversized No. 10 triple-drive terminal screws provide greater torque and resist backing out from vibration Insulating barrier between terminals provide isolation from each phase Nickel-plated brass mounting strap for superior corrosion resistance Large toggle provides positive actuation, even with gloved hand Non-grounding Single phase Nickel plated brass 10-32 terminal screw Nickel plated brass strap Thermoplastic polyester toggle, base and face 3 hp at 120 VAC , 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC Back and side wire connection UL 94-V0 Flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | TP |
| Actuator | Toggle |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MS303-DSS |
| Color | Black |
| Connection | Back Wired;Side Wired |
| Contact Rating | 30 A at 600 VAC |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.15 in |
| Dimensions | 3.75 in H x 2.03 in W x 2.15 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | Flammability (Rated V-0 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3700 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Height | 6.6250 in |
| Height [Metric] | 10.4775 cm |
| Length | 9.0000 in |
| Length [Metric] | 5.7150 cm |
| Material | Polyester |
| Number Of Poles | 3 |
| Operating Cycles | 6000 Cycles |
| Operating Temperature | -40 to +60 °C |
| Size | 3.75 H x 23 W x 2.15 D in |
| Standard | NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73cUL per CSA C22.2 No. 111 (File E63969) CertifiedNOM-ANCE CertifiedUL 60947-4-1 Supersedes UL 508UL94 V-0 Flammability Rating |
| Switch Type | Toggle |
| Terminal Type | Back/Side Wired Screw |
| Type | Short Toggle;Three-Pole AC Motor Starter Switch |
| UNSPSC | 39122211 |
| UPC 11 | 07847737418 |
| UPC 12 | 078477374184 |
| Width | 2.31 in |
| Width [Metric] | 5.8750 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Contact Configuration | TP |
| Power Rating | 20 hp |
| Voltage Rating | 600 VAC |
| Commercial |
| All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing |
| Positive-contact design and cam-driven mechanism enhances fast-make/slow-break |
| Silver-alloy contacts for maximum conductivity and service life |
| Multiple termination design accepts back and side wiring, terminal clamps or ring terminals |
| Oversized No. 10 triple-drive terminal screws provide greater torque and resist backing out from vibration |
| Insulating barrier between terminals provide isolation from each phase |
| Nickel-plated brass mounting strap for superior corrosion resistance |
| Large toggle provides positive actuation, even with gloved hand |
| Non-grounding |
| Single phase |
| Nickel plated brass 10-32 terminal screw |
| Nickel plated brass strap |
| Thermoplastic polyester toggle, base and face |
| 3 hp at 120 VAC , 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC |
| Back and side wire connection |
| UL 94-V0 Flammability |
