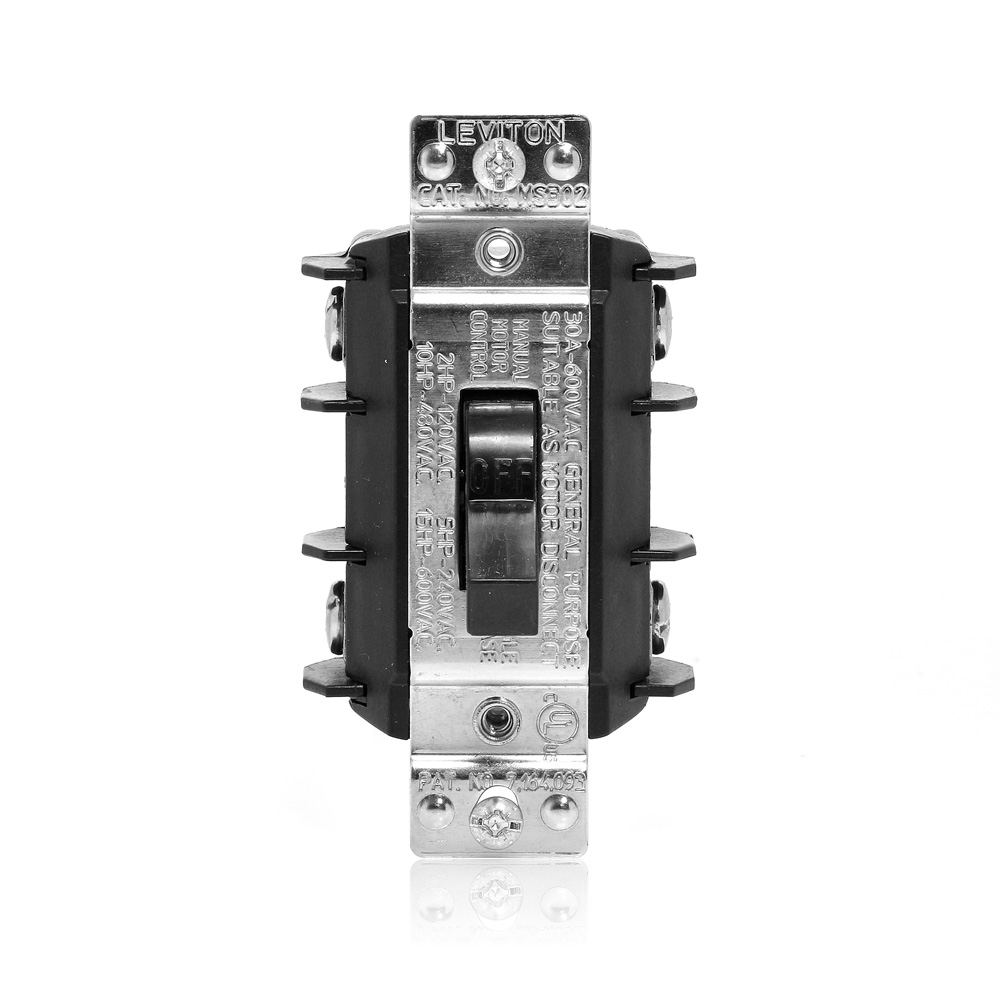

Leviton® MS302-DSB Standard AC Motor Starter Switch, 600 VAC, 30 A, 15 hp
Custom_Product_Images_Illustration
Leviton® MS302-DSB Standard AC Motor Starter Switch, 600 VAC, 30 A, 15 hp
SKU919574
MFGR #MS302-DSB
Your Cost: $59.17/ea
Leviton®'s Industrial Grade AC Manual Motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Leviton®'s Industrial Grade AC Manual Motor Starter Switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Actuator Standard Toggle Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number MS302-DSB Color Black Contact Rating 30 A at 600 VAC Country of Origin MX Currency USD Environmental Conditions -40 to 60 deg C Operating Temperature EU RoHS Indicator C Gross Weight Per Pack 0.3100 lb Gross Weight per Pack Metric 0.13 Gross Weight UOM Metric kg Height 11.5000 in Length 17.8750 in Material Thermoplastic Polyester Number Of Poles 2 Operating Cycles 100 Replaced Catalog Number MS302-DS Standard NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057UL 508 File No. E63969cUL per CSA C22.2 No. 111 File No. E63969 Terminal Type Back/Side Wired Type Standard Toggle; Double-Pole AC Motor Starter Switch UNSPSC 39122211 UPC 11 07847754957 UPC 12 078477549575 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Power Rating 15 hp Voltage Rating 600 VAC Commercial
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Substitute Products
| Actuator | Standard Toggle |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MS302-DSB |
| Color | Black |
| Contact Rating | 30 A at 600 VAC |
| Country of Origin | MX |
| Currency | USD |
| Environmental Conditions | -40 to 60 deg C Operating Temperature |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3100 lb |
| Gross Weight per Pack Metric | 0.13 |
| Gross Weight UOM Metric | kg |
| Height | 11.5000 in |
| Length | 17.8750 in |
| Material | Thermoplastic Polyester |
| Number Of Poles | 2 |
| Operating Cycles | 100 |
| Replaced Catalog Number | MS302-DS |
| Standard | NEMA (WD-1 & WD-6);ANSI (C-73);NOM Certified (057);UL508 (File E63969);cUL per CSA C22.2 No. 111 (File E63969) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057UL 508 File No. E63969cUL per CSA C22.2 No. 111 File No. E63969 |
| Terminal Type | Back/Side Wired |
| Type | Standard Toggle; Double-Pole AC Motor Starter Switch |
| UNSPSC | 39122211 |
| UPC 11 | 07847754957 |
| UPC 12 | 078477549575 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Power Rating | 15 hp |
| Voltage Rating | 600 VAC |
| Commercial |
