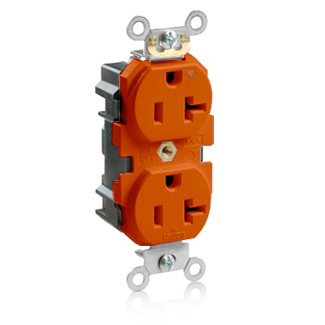

Leviton® Lev-Lok® MT563-IG Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
Custom_Product_Images_Illustration
Leviton® Lev-Lok® MT563-IG Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
SKU942924
MFGR #MT563-IG
$/ea
The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number MT563-IG Color Family Orange Connection Modular Terminal Country of Origin UKN Currency USD Depth 1.56 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.55 in W x 1.56 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 8.5700 lb Gross Weight per Pack Metric 0.13 Gross Weight UOM Metric kg Height 10.0000 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 13.0000 in Length [Metric] 4.6050 cm Material Thermoplastic Mounting Wallbox NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.55 W x 1.56 D in Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498 File No. E13399UL94 V-2 Flammability Rating Sub Brand Lev-Lok Temperature Rating -40 to +60 °C Terminal Type Modular Type Duplex Outlet;Straight Blade UNSPSC 39121406 UPC 11 07847750160 UPC 12 078477501603 Width 1.55 in Width [Metric] 4.7625 cm Wire Size 12 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Orange Number of Wires 3 Voltage Rating 125 V Commercial Wallbox mounting Isolated grounding Tamper resistant 1-phase 2000 V (min) dielectric strength UL 94 V-2 flammability rating Industrial grade Galvanized steel strap Modular 12 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MT563-IG |
| Color Family | Orange |
| Connection | Modular Terminal |
| Country of Origin | UKN |
| Currency | USD |
| Depth | 1.56 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.55 in W x 1.56 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 8.5700 lb |
| Gross Weight per Pack Metric | 0.13 |
| Gross Weight UOM Metric | kg |
| Height | 10.0000 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 13.0000 in |
| Length [Metric] | 4.6050 cm |
| Material | Thermoplastic |
| Mounting | Wallbox |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.55 W x 1.56 D in |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Sub Brand | Lev-Lok |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Modular |
| Type | Duplex Outlet;Straight Blade |
| UNSPSC | 39121406 |
| UPC 11 | 07847750160 |
| UPC 12 | 078477501603 |
| Width | 1.55 in |
| Width [Metric] | 4.7625 cm |
| Wire Size | 12 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Orange |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Wallbox mounting |
| Isolated grounding |
| Tamper resistant |
| 1-phase |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Industrial grade |
| Galvanized steel strap |
| Modular |
| 12 AWG |
