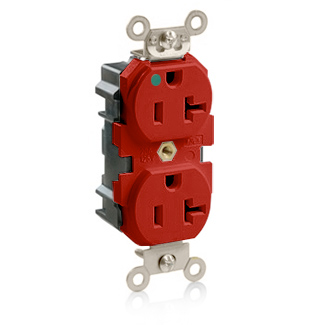

Leviton® Lev-Lok® M8300-R Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Straight Blade Receptacles
435618
MFG #: M8300-R
Leviton®
38.77000
/ ea
The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor ins need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
- Brochure URL - ibcGetAttachment.jsp?cItemId=93522&label=IBE&appName=IBE(Brochure URL)
- Catalog URL - IDW_DOCUMENT_1520551153783.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-M8300-R.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=M8300-R&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_SPVQOAC7D0RJ3UT1.jpg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Ve1u-Od7xR8(Video)
- Applications
- Features
Commercial |
Constructed with impact resistant thermoplastic nylon cover and body |
Four corner latches securely fasten the receptacles face to the body |
Large triple wipe, brass "T" line contacts for superior contact and conductivity |
12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules |
Grounding clip permanently secured to strap for easy, simple and secure installation |
Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment |
Wiring module locks and latches to the receptacle body providing double the connection security |
Receptacle to be installed only with Leviton® MSTWL series wiring modules |
MSTWL wiring module shipped separately with protective cover and factory installed circuit ID label |
Nickel plated brass ground clips |
Solid brass locking pins, bushing |
Triple combination head, steel mounting screws |
Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
Max 30C after 250 cycles OL at 200 percent rated current |
Duplex |
