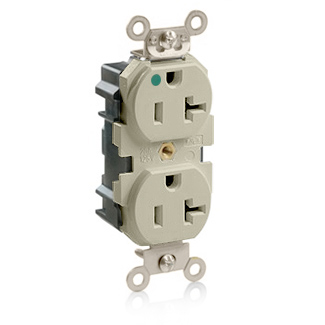

Leviton® Lev-Lok® M8300-I Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Leviton® Lev-Lok® M8300-I Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU422089
MFGR #M8300-I
Your Cost: $42.56/ea
The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor ins need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor ins need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number M8300-I Connection Modular Terminal Country of Origin MX Currency USD Depth 1.22 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.53 in W x 1.22 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 9.2500 in Height [Metric] 10.6375 cm Horsepower 1 hp Length 10.7500 in Length [Metric] 4.2875 cm Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.53 W x 1.22 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);cULus Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057cULus ListedUL94 V-2 Flammability Rating Sub Brand Lev-Lok Temperature Rating -40 to +60 °C Terminal Type Modular Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847736382 UPC 12 078477363829 Width 1.62 in Width [Metric] 4.1275 cm Wire Size 12 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 125 V Commercial Constructed with impact resistant thermoplastic nylon cover and body Four corner latches securely fasten the receptacles face to the body Large triple wipe, brass "T" line contacts for superior contact and conductivity 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules Grounding clip permanently secured to strap for easy, simple and secure installation Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment Wiring module locks and latches to the receptacle body providing double the connection security Receptacle to be installed only with Leviton® MSTWL series wiring modules MSTWL wiring module shipped separately with protective cover and factory installed circuit ID label MSTWL wiring module shipped separately with protective cover and factory-installed circuit ID label Self grounding 0.04 in thick solid brass line contacts Single piece nickel plated brass with integral ground contact mounting strap Nickel plated brass ground clips Solid brass locking pins, bushing Triple combination head, steel mounting screws Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current Duplex
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | M8300-I |
| Connection | Modular Terminal |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.22 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.53 in W x 1.22 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 9.2500 in |
| Height [Metric] | 10.6375 cm |
| Horsepower | 1 hp |
| Length | 10.7500 in |
| Length [Metric] | 4.2875 cm |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.53 W x 1.22 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);cULus Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057cULus ListedUL94 V-2 Flammability Rating |
| Sub Brand | Lev-Lok |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Modular |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847736382 |
| UPC 12 | 078477363829 |
| Width | 1.62 in |
| Width [Metric] | 4.1275 cm |
| Wire Size | 12 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Constructed with impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten the receptacles face to the body |
| Large triple wipe, brass "T" line contacts for superior contact and conductivity |
| 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules |
| Grounding clip permanently secured to strap for easy, simple and secure installation |
| Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment |
| Wiring module locks and latches to the receptacle body providing double the connection security |
| Receptacle to be installed only with Leviton® MSTWL series wiring modules |
| MSTWL wiring module shipped separately with protective cover and factory installed circuit ID label |
| MSTWL wiring module shipped separately with protective cover and factory-installed circuit ID label |
| Self grounding |
| 0.04 in thick solid brass line contacts |
| Single piece nickel plated brass with integral ground contact mounting strap |
| Nickel plated brass ground clips |
| Solid brass locking pins, bushing |
| Triple combination head, steel mounting screws |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| Duplex |
