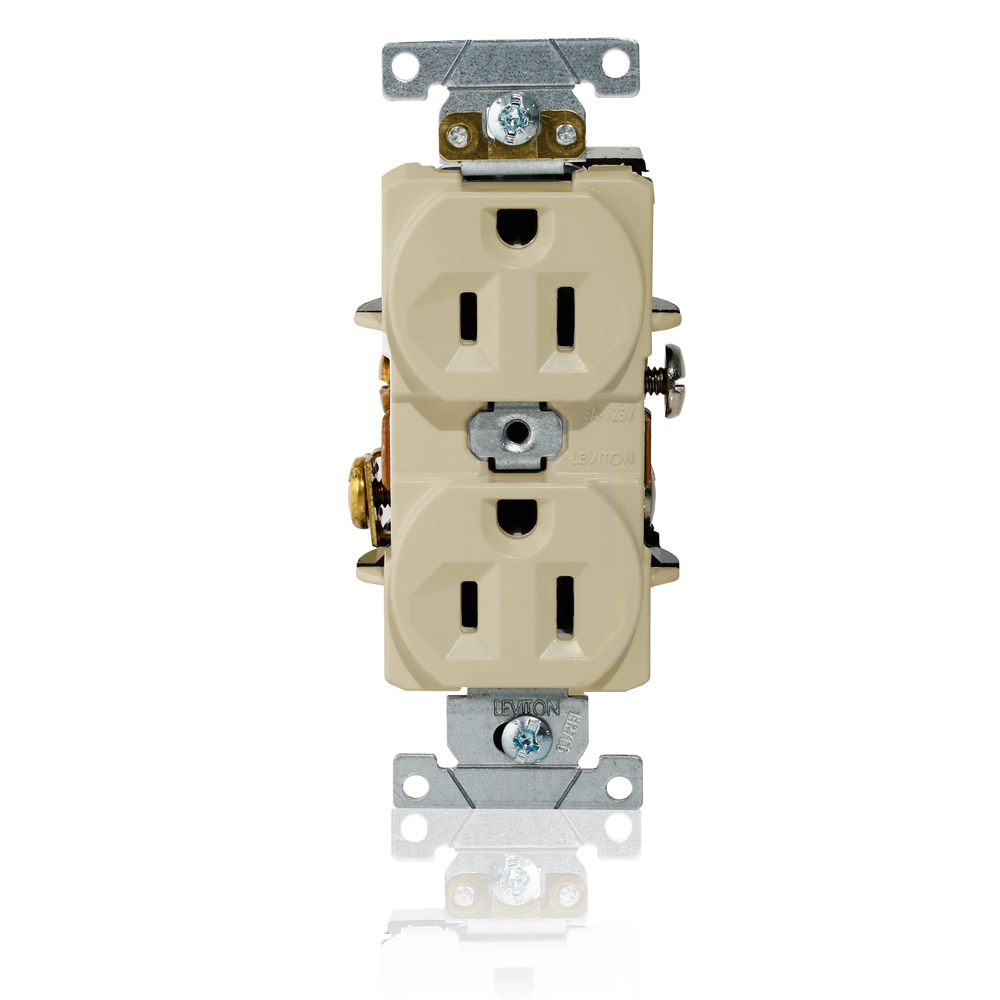

Leviton® L5262-I L5262 Duplex Heavy Duty Indented Face Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Leviton® L5262-I L5262 Duplex Heavy Duty Indented Face Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
SKU1285061
MFGR #L5262-I
Your Cost: $21.57/ea
List: Leviton® Straight Blade Receptacle, Duplex Heavy Duty Indented Face Self-Grounding Standard, Series: L5262, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Ivory, 4.06 in H x 1.71 in W x 1.13 in D Dimensions
Leviton® Straight Blade Receptacle, Duplex Heavy Duty Indented Face Self-Grounding Standard, Series: L5262, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, PBT Polyester Blend, Ivory, 4.06 in H x 1.71 in W x 1.13 in D Dimensions
Application Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie ARRA Compliant C Buy American Compliant C Catalog Number L5262-I Country of Origin MX Currency USD Dimensions 4.06 in H x 1.71 in W x 1.13 in D EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Hazard Class N Height 8.5000 in Horsepower 1/2 Length 12.7500 in Material PBT Polyester Blend NEMA Rating NEMA 5-15R Number Of Poles 2 Series L5262 Standard UL 498 Temperature Rating -40 to 75 Terminal Type Back/Side Wired Type Duplex Heavy Duty Indented Face Self-Grounding Standard UNSPSC 39121406 UPC 11 07847789767 UPC 12 078477897676 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Ivory Number of Wires 3 Voltage Rating 125 V Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie Idented Face Brass self-grounding clip is permanently staked on for secure and reliable performance Wide receptacle face shelf provides exceptional support to the wallplate or box cover Body and face made of impact-resistant advanced engineering polymer for extreme durability Universal strap design provides ample support for electrical box installations and includes multiple break-off 1-piece equipment ground system provides more reliable continuity to ground can be ba Oversized brass terminal screw heads provide superior clamping force and electrical conductivity External wiring clamps allow for back or side wiring and provide visual verification of termina Molded in ribs prevent terminal screws from making contact with wall box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | L5262-I |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.06 in H x 1.71 in W x 1.13 in D |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 8.5000 in |
| Horsepower | 1/2 |
| Length | 12.7500 in |
| Material | PBT Polyester Blend |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Series | L5262 |
| Standard | UL 498 |
| Temperature Rating | -40 to 75 |
| Terminal Type | Back/Side Wired |
| Type | Duplex Heavy Duty Indented Face Self-Grounding Standard |
| UNSPSC | 39121406 |
| UPC 11 | 07847789767 |
| UPC 12 | 078477897676 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial, Commercial Buildings, Municipal Buildings, Transportation and Educational Facilitie |
| Idented Face |
| Brass self-grounding clip is permanently staked on for secure and reliable performance |
| Wide receptacle face shelf provides exceptional support to the wallplate or box cover |
| Body and face made of impact-resistant advanced engineering polymer for extreme durability |
| Universal strap design provides ample support for electrical box installations and includes multiple break-off |
| 1-piece equipment ground system provides more reliable continuity to ground can be ba |
| Oversized brass terminal screw heads provide superior clamping force and electrical conductivity |
| External wiring clamps allow for back or side wiring and provide visual verification of termina |
| Molded in ribs prevent terminal screws from making contact with wall box |
