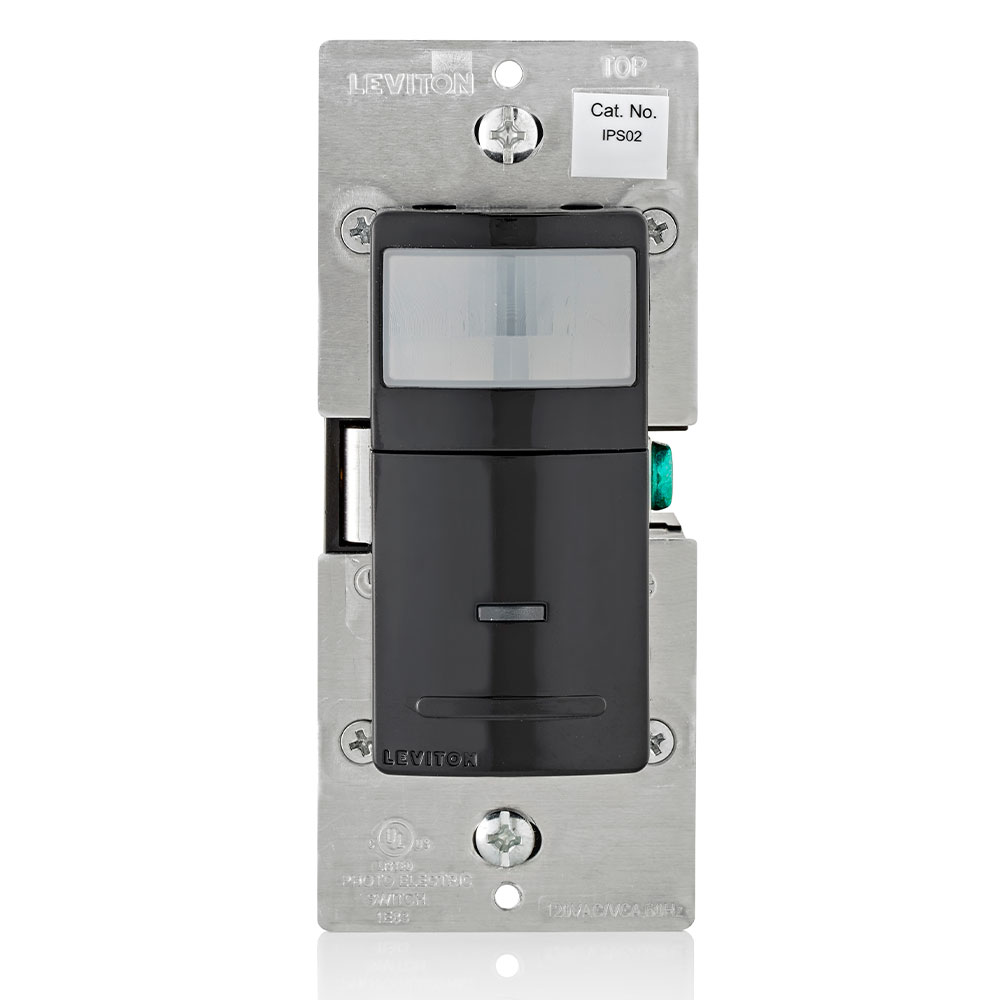

Leviton® Decora® IPS02-1LE 1-Pole Auto ON Occupancy Sensor, 120 VAC, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, Wall Mount
Leviton® Decora® IPS02-1LE 1-Pole Auto ON Occupancy Sensor, 120 VAC, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, Wall Mount
SKU1285536
MFGR #IPS02-1LE
Your Cost: $31.46/ea
List: Leviton® Decora® Occupancy Sensor, 1-Pole Auto ON, 120 VAC, 2.5 A, 150 W, 300 W, 1/6 hp, 200 VA Power, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, 30 s, 5 m, 15 m, 30 m Time Delay, LED/CFL/ELV/MLV/Incandescent/Halogen Lamp, 60 Hz Response, Back and Side Wired Connection, Wall Mounting, 0 to 40 deg C, Black
Leviton® Decora® Occupancy Sensor, 1-Pole Auto ON, 120 VAC, 2.5 A, 150 W, 300 W, 1/6 hp, 200 VA Power, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, 30 s, 5 m, 15 m, 30 m Time Delay, LED/CFL/ELV/MLV/Incandescent/Halogen Lamp, 60 Hz Response, Back and Side Wired Connection, Wall Mounting, 0 to 40 deg C, Black
Amperage Rating 2.5 Application For variety of residential settings, bathrooms, garages, hallways, basements, utility/laundry r ARRA Compliant C Buy American Compliant C Catalog Number IPS02-1LE Color Black Connection Type Side and Back Wired Country of Origin CN Currency USD Dimensions 4.13 in H x 1.75 in W EU RoHS Indicator C Gross Weight Per Pack 0.3500 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Hazard Class N Lamp Type LED/CFL/ELV/MLV/Incandescent/Halogen Mounting Wall Box Power Rating 150 W, 300 W, 1/6 hp, 200 VA Replaced Catalog Number DOS02-1LW Response Frequency 60 Standard UL, FCC Sub Brand Decora Supply Voltage 120 VAC Temperature Rating 0 to 40 Time Delay 30 s, 5 m, 15 m, 30 m Type Motion Sensor Switch UNSPSC 45111808 UPC 11 07847791694 UPC 12 078477916940 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 900 Mounting Type Wall Sensor Type PIR Viewing Angle 180 Voltage Rating 120 For variety of residential settings, bathrooms, garages, hallways, basements, utility/laundry r 180 degree sensor, single pole Universal light control - switches incandescent, CFL, LED, electronic low voltage and magnetic low voltage loads using relay technology Automatic ON/automatic OFF operation for seamless energy management Low profile design eliminates an obtrusive "scanning device" look, elegant styling compliments an 180 deg field of view provides approximately 900 sq-ft of coverage suitable for bathrooms, basements, garages, Convenient push button provides manual OFF light switching at any time Segmented lens provides optimum sensitivity and performance, it is designed with an extensive "minor motion" area where even slight body movements will be d Four optional manual adjustments for delayed OFF time settings maximize energy savings - 30 s ( LED Indicator light flashes when sensor detects motion to verify detection is active Unit can be used for 120 VAC lighting, compatible with both electronic and magnetic ballasts or 150 W LED/CFL, 300 W incandescent/halogen, 1/6 hp, 200 VA fluorescent ballast, 2.5 A resistive
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 2.5 |
| Application | For variety of residential settings, bathrooms, garages, hallways, basements, utility/laundry r |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IPS02-1LE |
| Color | Black |
| Connection Type | Side and Back Wired |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.13 in H x 1.75 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3500 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Lamp Type | LED/CFL/ELV/MLV/Incandescent/Halogen |
| Mounting | Wall Box |
| Power Rating | 150 W, 300 W, 1/6 hp, 200 VA |
| Replaced Catalog Number | DOS02-1LW |
| Response Frequency | 60 |
| Standard | UL, FCC |
| Sub Brand | Decora |
| Supply Voltage | 120 VAC |
| Temperature Rating | 0 to 40 |
| Time Delay | 30 s, 5 m, 15 m, 30 m |
| Type | Motion Sensor Switch |
| UNSPSC | 45111808 |
| UPC 11 | 07847791694 |
| UPC 12 | 078477916940 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 900 |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 180 |
| Voltage Rating | 120 |
| For variety of residential settings, bathrooms, garages, hallways, basements, utility/laundry r |
| 180 degree sensor, single pole |
| Universal light control - switches incandescent, CFL, LED, electronic low voltage and magnetic low voltage loads using relay technology |
| Automatic ON/automatic OFF operation for seamless energy management |
| Low profile design eliminates an obtrusive "scanning device" look, elegant styling compliments an |
| 180 deg field of view provides approximately 900 sq-ft of coverage suitable for bathrooms, basements, garages, |
| Convenient push button provides manual OFF light switching at any time |
| Segmented lens provides optimum sensitivity and performance, it is designed with an extensive "minor motion" area where even slight body movements will be d |
| Four optional manual adjustments for delayed OFF time settings maximize energy savings - 30 s ( |
| LED Indicator light flashes when sensor detects motion to verify detection is active |
| Unit can be used for 120 VAC lighting, compatible with both electronic and magnetic ballasts or |
| 150 W LED/CFL, 300 W incandescent/halogen, 1/6 hp, 200 VA fluorescent ballast, 2.5 A resistive |
