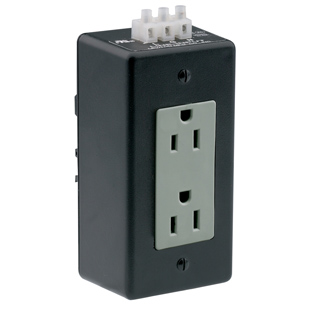

Leviton® Decora® 16252-DIN DIN Rail Duplex Heavy Duty Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Leviton® Decora® 16252-DIN DIN Rail Duplex Heavy Duty Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
SKU1214538
MFGR #16252-DIN
$/ea
Leviton® Decora® Straight Blade Receptacle, DIN Rail Duplex Heavy Duty Grounding, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 75 deg C, Terminal Block Terminal, Thermoplastic, Gray, 5.63 in H x 2.54 in W x 2.73 in D
Leviton® Decora® Straight Blade Receptacle, DIN Rail Duplex Heavy Duty Grounding, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 75 deg C, Terminal Block Terminal, Thermoplastic, Gray, 5.63 in H x 2.54 in W x 2.73 in D
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 16252-DIN Connection Terminal Block Country of Origin MX Currency USD Dimensions 5.63 in H x 2.54 in W x 2.73 in D EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 6.2000 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Height 9.5000 in Height [Metric] 6.3500 cm Horsepower 1/2 Length 11.7500 in Length [Metric] 15.2400 cm Material Thermoplastic NEMA Rating NEMA 5-15R Number Of Poles 2 Standard CSA Certified;UL Listed Sub Brand Decora Temperature Rating -40 to 75 Terminal Type Terminal Block Type DIN Rail Duplex Heavy Duty Grounding UNSPSC 3.912161E+7 UPC 11 07847712234 UPC 12 078477122341 Width 3.50 in Width [Metric] 8.8900 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Gray Number of Wires 3 Voltage Rating 125 V Commercial Shallow design for maximum wiring room in wallbox Back and side terminal wiring options for ease of installation Heavy gauge zinc plated steel locked-in wrap around strap Heavy duty triple wipe brass contacts for long service life Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 16252-DIN |
| Connection | Terminal Block |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5.63 in H x 2.54 in W x 2.73 in D |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 6.2000 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Height | 9.5000 in |
| Height [Metric] | 6.3500 cm |
| Horsepower | 1/2 |
| Length | 11.7500 in |
| Length [Metric] | 15.2400 cm |
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Standard | CSA Certified;UL Listed |
| Sub Brand | Decora |
| Temperature Rating | -40 to 75 |
| Terminal Type | Terminal Block |
| Type | DIN Rail Duplex Heavy Duty Grounding |
| UNSPSC | 3.912161E+7 |
| UPC 11 | 07847712234 |
| UPC 12 | 078477122341 |
| Width | 3.50 in |
| Width [Metric] | 8.8900 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Shallow design for maximum wiring room in wallbox |
| Back and side terminal wiring options for ease of installation |
| Heavy gauge zinc plated steel locked-in wrap around strap |
| Heavy duty triple wipe brass contacts for long service life |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
