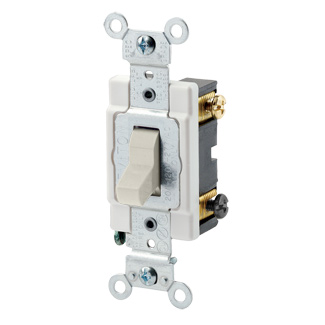

Leviton® CSB4-20T 4-Way Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
Toggle Switches
912006
MFG #: CSB4-20T
Leviton®
12.57000
/ ea
- Catalog URL - Leviton_1257_R_Catalog.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Owners Manual URL - Leviton_1204_2L_Manual.pdf(Owners Manual URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-CSB4-20T.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=CSB4-20T§ion=41455&minisite=10251(Spec Sheet URL)
- Tech Drawing URL(Tech Drawing URL)
- Tech Drawing URL - 10962_EC1VIX7GFKD892WL.jpg(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation |
| Heavy gauge, rust resistant steel mounting strap |
| Accepts no 14 to 12 AWG copper or copper clad wire |
| Convenient break-OFF plaster ears for best alignment |
| Large switch contacts for maximum conductivity |
| 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating |
| Steel strap |
| Polycarbonate toggle, PBT base, thermoplastic body, nylon cover |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Box mounting |
| Back and side wire connection |
| UL 94-V2 Flammability |
