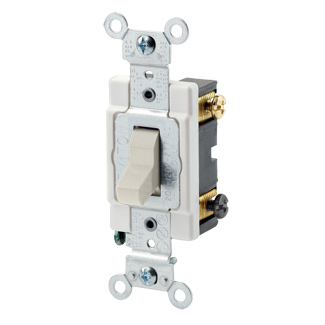

Leviton® CSB3-20T 3-Way Toggle Switch, 120/277 VAC, 20 A, 1/2 hp
Toggle Switches
458753
MFG #: CSB3-20T
Leviton®
5.34000
/ ea
Levitons Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
- Catalog URL - Leviton_1257_R_Catalog.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-Product_Spec_or_Info_Sheet_CSB3-20T.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Tech Drawing URL(Tech Drawing URL)
- Tech Drawing URL - 10962_GPMOD9J1EWIX37ZT.jpg(Tech Drawing URL)
- Video - https://youtube.com/embed/0Ph-acGDxhU(Video)
- Applications
- Features
| Commercial |
| Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation |
| Heavy gauge, rust resistant steel mounting strap |
| Accepts no 14 to 12 AWG copper or copper clad wire |
| Convenient break-OFF plaster ears for best alignment |
| Large switch contacts for maximum conductivity |
| 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating |
| Steel strap |
| Polycarbonate toggle, PBT base, thermoplastic body, nylon cover |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Box mounting |
| Back and side wire connection |
| UL 94-V2 Flammability |
