Leviton®

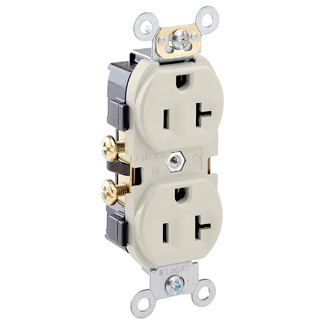

Leviton® CR20-T Duplex Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Custom_Product_Images_Illustration
Leviton®
Leviton® CR20-T Duplex Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
SKU268425
MFGR #CR20-T
Your Cost: $1.96/ea
List: Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor ins choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor ins choice for use in hotels, schools, hospitals and commercial office buildings.
Amperage Rating 20 A Application Commercial ARRA Compliant C Brand Leviton® Buy American Compliant C Catalog Number CR20-T Color Light Almond Connection Side Wired Country of Origin US Currency USD Depth 19 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.56 in W x 19 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2300 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 9.2500 in Horsepower 1 hp Length 12.2500 in Manufacturer Leviton Manufacturing Co., Inc. Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Number of Wires 3 Phase 1 Size 46 H x 1.56 W x 19 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-2 Flammability Rating Stock Status NORMALLY STOCKED Temperature Rating -40 to +60 °C Terminal Type Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847727303 UPC 12 078477273036 Voltage Rating 125 V Width 1.56 in Wire Size 14-10 AWG Commercial Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box Self grounding Brass 0.031 thick line contacts Steel 8-32 terminal screws Steel 8-32 grounding screw Zinc plated steel strap Brass ground clips Thermoplastic face Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current narrow body 14 - 10 AWG wire size
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 20 A |
| Application | Commercial |
| ARRA Compliant | C |
| Brand | Leviton® |
| Buy American Compliant | C |
| Catalog Number | CR20-T |
| Color | Light Almond |
| Connection | Side Wired |
| Country of Origin | US |
| Currency | USD |
| Depth | 19 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.56 in W x 19 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2300 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 9.2500 in |
| Horsepower | 1 hp |
| Length | 12.2500 in |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Size | 46 H x 1.56 W x 19 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Stock Status | NORMALLY STOCKED |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847727303 |
| UPC 12 | 078477273036 |
| Voltage Rating | 125 V |
| Width | 1.56 in |
| Wire Size | 14-10 AWG |
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
| Self grounding |
| Brass 0.031 thick line contacts |
| Steel 8-32 terminal screws |
| Steel 8-32 grounding screw |
| Zinc plated steel strap |
| Brass ground clips |
| Thermoplastic face |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| narrow body |
| 14 - 10 AWG wire size |
