Leviton®

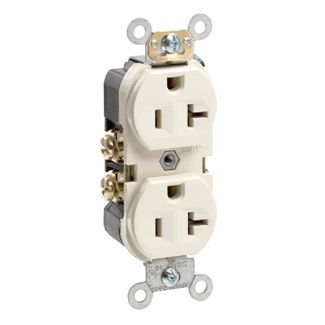

Leviton® BR20-T Duplex Heavy Duty Narrow Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Custom_Product_Images_Illustration
Leviton®
Leviton® BR20-T Duplex Heavy Duty Narrow Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
SKU306135
MFGR #BR20-T
Your Cost: $3.05/ea
List: Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number BR20-T Connection Back and Side Wired Country of Origin US Currency USD Depth 19 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.56 in W x 19 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Height 8.3130 in Horsepower 1 hp Length 12.4380 in Material Nylon Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.56 W x 19 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847737035 UPC 12 078477370353 Width 1.56 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Light Almond Number of Wires 3 Voltage Rating 125 V Commercial Manufactured to withstand the demands of commercial and institutional applications Heavy duty brass power contacts for maximum conductivity and plug retention Shallow design for maximum wiring room in box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BR20-T |
| Connection | Back and Side Wired |
| Country of Origin | US |
| Currency | USD |
| Depth | 19 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.56 in W x 19 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Height | 8.3130 in |
| Horsepower | 1 hp |
| Length | 12.4380 in |
| Material | Nylon |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.56 W x 19 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847737035 |
| UPC 12 | 078477370353 |
| Width | 1.56 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Light Almond |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Manufactured to withstand the demands of commercial and institutional applications |
| Heavy duty brass power contacts for maximum conductivity and plug retention |
| Shallow design for maximum wiring room in box |
