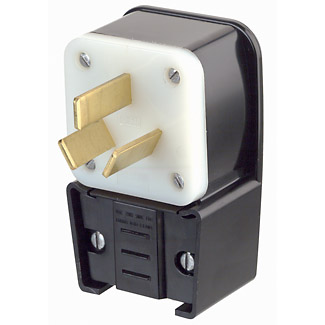

Leviton® 9450-P Angled Straight Blade Power Plug, 125/250 VAC, 50 A, 3 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton® 9450-P Angled Straight Blade Power Plug, 125/250 VAC, 50 A, 3 Poles, 3 Wires, Black
SKU8395
MFGR #9450-P
Your Cost: $90.37/ea
List: Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number 9450-P Cord Diameter 5/8 to 1-3/8 in Country of Origin MX Currency USD Depth 1.89 in Dimensions 4.37 in H x 2.76 in W x 1.89 in D Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) EU RoHS Indicator C Grade Industrial Gross Weight Per Pack 0.6000 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Height 8.8750 in Height [Metric] 7.6200 cm Horsepower 3 hp Length 10.8750 in Length [Metric] 12.3825 cm Material Super Tough Nylon (Body) Mounting Cable NEMA Rating 10-50P Number Of Poles 3 Size 4.37 H x 2.76 W x 1.89 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057NEMA WD1/WD6CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to 60 °C Type Power Plug UNSPSC 39121402 UPC 11 07847780994 UPC 12 078477809945 Width 3.50 in Width [Metric] 8.8900 cm Wire Size 10-4 AWG (Terminal Accommodation);.625-1.375 IN (Cord Grip Range) Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 50 A Color Black Number of Wires 3 Voltage Rating 125/250 V Industrial Rugged cord clamp for secure cable grip accommodates cord diameters from .625" to 1.375" and does not tear conductor jacket Made of tough, heavy-duty nylon for long service life Devices feature heavy-sectioned dead-front right-angle Pressure-clamp terminal design Terminals accept up to #4AWG stranded conductors Four way positioning front module Solid brass blades for maximum conductivity Flammability Rated V-2 per UL94 Non grounding Cable mounting Zinc plated steel screw assembly Solid brass blades Super tough nylon 10 - 4 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 9450-P |
| Cord Diameter | 5/8 to 1-3/8 in |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.89 in |
| Dimensions | 4.37 in H x 2.76 in W x 1.89 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) |
| EU RoHS Indicator | C |
| Grade | Industrial |
| Gross Weight Per Pack | 0.6000 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Height | 8.8750 in |
| Height [Metric] | 7.6200 cm |
| Horsepower | 3 hp |
| Length | 10.8750 in |
| Length [Metric] | 12.3825 cm |
| Material | Super Tough Nylon (Body) |
| Mounting | Cable |
| NEMA Rating | 10-50P |
| Number Of Poles | 3 |
| Size | 4.37 H x 2.76 W x 1.89 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73NOM 057NEMA WD1/WD6CSA C22.2 No. 42 File No. 152105UL 498 File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to 60 °C |
| Type | Power Plug |
| UNSPSC | 39121402 |
| UPC 11 | 07847780994 |
| UPC 12 | 078477809945 |
| Width | 3.50 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 10-4 AWG (Terminal Accommodation);.625-1.375 IN (Cord Grip Range) |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 50 A |
| Color | Black |
| Number of Wires | 3 |
| Voltage Rating | 125/250 V |
| Industrial |
| Rugged cord clamp for secure cable grip accommodates cord diameters from .625" to 1.375" and does not tear conductor jacket |
| Made of tough, heavy-duty nylon for long service life |
| Devices feature heavy-sectioned dead-front right-angle |
| Pressure-clamp terminal design |
| Terminals accept up to #4AWG stranded conductors |
| Four way positioning front module |
| Solid brass blades for maximum conductivity |
| Flammability Rated V-2 per UL94 |
| Non grounding |
| Cable mounting |
| Zinc plated steel screw assembly |
| Solid brass blades |
| Super tough nylon |
| 10 - 4 AWG |
