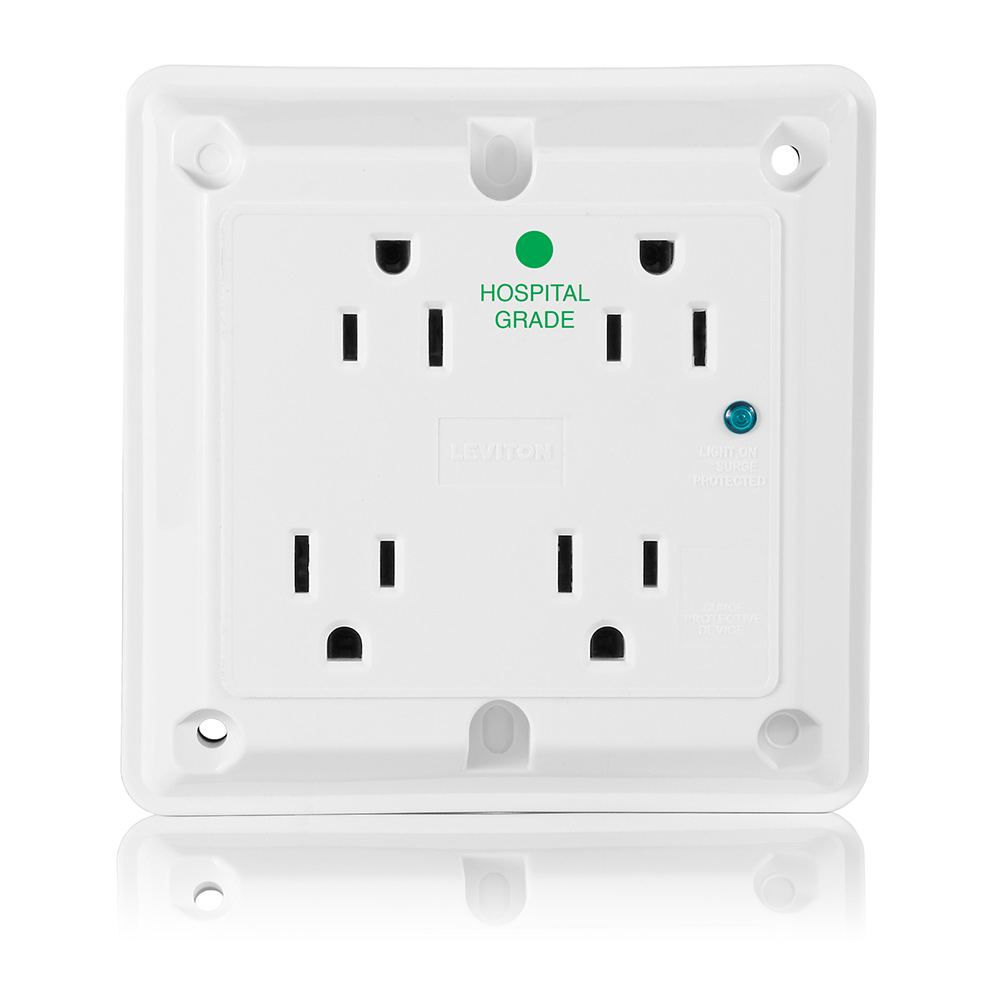

Leviton® 8480-W Type SPD3 4-in-1 Extra Heavy Duty Ground Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Straight Blade Receptacles
923425
MFG #: 8480-W
Leviton®
78.86000
/ ea
Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
- Application GDE URL - Leviton_21254_IGI_Application_Guide.pdf(Application GDE URL)
- Brochure URL - 10962_5VBKUWY4L1A9CZQD.pdf(Brochure URL)
- Brochure URL - ibcGetAttachment.jsp?cItemId=104231&label=IBE&appName=IBE(Brochure URL)
- Catalog URL - IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf(Catalog URL)
- http://www.leviton.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10962_3XEWY0M5H8CS6QFP.pdf(Spec Sheet URL)
- Spec Sheet URL - ibcGetAttachment.jsp?cItemId=99387&label=IBE&appName=IBE(Spec Sheet URL)
- Tech Drawing URL - 10962_9NE4QPA2XKH0TYMI.jpg(Tech Drawing URL)
- Tech Drawing URL - ibcGetAttachment.jsp?cItemId=35443&label=IBE&appName=IBE(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts |
| Indicator light provides visual indication that equipment is being protected |
| Single, duplex and 4-in-1 versions |
| EMI/RFI noise filtering |
| Wide variety of color options aid in identifying different types of equipment or applications |
| Back and side wired design with durable metal mounting strap |
| Point of use protection for up to 18000 A of surge current total |
| Withstands 2000 VAC per UL498 dielectric voltage, full rated current rating |
| Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise |
| V-2 per UL94 flammability rated |
| Nylon face and body material |
| Brass-plated steel terminal screws, grounding screw, ground clips |
| Brass triple-wipe line contacts |
| Zinc plated steel yoke and clamp nuts |
| Delrin® acetal shutter mechanism |
| Brass-hot, green-ground, silver-neutral terminal ID |
| 14 to 10 AWG terminal accommodation |
| Ratings are permanently marked on device product ID |
| 14 to 16 in-lb torque range |
| 150 Vrms MCOV |
