Leviton®

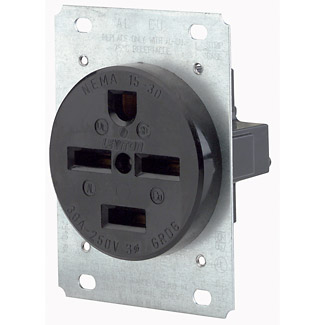

Leviton® 8430 Extra Heavy Duty Flush Mount Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Black
Leviton®
Leviton® 8430 Extra Heavy Duty Flush Mount Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Black
SKU273172
MFGR #8430
Your Cost: $80.01/ea
List: Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor ins choice for use in factories, schools, hospitals and commercial office buildings.
Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor ins choice for use in factories, schools, hospitals and commercial office buildings.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8430 Connection Side Wired in Country of Origin MX Currency USD Depth 2.10 in Dielectric Strength 2000 (Min.) V Environmental Conditions Flammability (Rated V-2 per UL94) V EU RoHS Indicator C Gross Weight Per Pack 0.4400 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Height 6.1250 in Height [Metric] 9.8425 cm Length 12.1250 in Length [Metric] 7.3025 cm Material Thermoplastic Mounting Box NEMA Rating 15-30R Number Of Poles 3 Phase 3 phase Size 3.75 H x 2.50 W x 2.10 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399, File E13393) Standards NEMA WD-6, ANSI C-73 Approved, UL 498 E13399 Listed, CSA C22.2 No 42 152105 Certified, NOM 057 Approved Temperature Rating -40 to +60 °C Type Power Receptacle UNSPSC 39121406 UPC 11 07847784330 UPC 12 078477843307 Width 2.28 in Width [Metric] 5.7937 cm Wire Size 14-6 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 30 A Color Black Number of Wires 4 Voltage Rating 250 V Commercial Heavy-gauge, double wipe copper alloy contacts Easy-to-wire terminals accept up to #4 AWG conductors Terminals marked for easy identification and fast wiring Flush-mount devices fit single or two-gang outlet boxes Surface mount devices are commercial grade and have concentric knockouts for 3/4 in and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable Flush mounting Max 30C after 50 cycles OL at 150 percent rated current 3-phase Fits any wallplate with 2.465 in diameter center hole
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8430 |
| Connection | Side Wired in |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.10 in |
| Dielectric Strength | 2000 (Min.) V |
| Environmental Conditions | Flammability (Rated V-2 per UL94) V |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.4400 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Height | 6.1250 in |
| Height [Metric] | 9.8425 cm |
| Length | 12.1250 in |
| Length [Metric] | 7.3025 cm |
| Material | Thermoplastic |
| Mounting | Box |
| NEMA Rating | 15-30R |
| Number Of Poles | 3 |
| Phase | 3 phase |
| Size | 3.75 H x 2.50 W x 2.10 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399, File E13393) |
| Standards | NEMA WD-6, ANSI C-73 Approved, UL 498 E13399 Listed, CSA C22.2 No 42 152105 Certified, NOM 057 Approved |
| Temperature Rating | -40 to +60 °C |
| Type | Power Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847784330 |
| UPC 12 | 078477843307 |
| Width | 2.28 in |
| Width [Metric] | 5.7937 cm |
| Wire Size | 14-6 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 30 A |
| Color | Black |
| Number of Wires | 4 |
| Voltage Rating | 250 V |
| Commercial |
| Heavy-gauge, double wipe copper alloy contacts |
| Easy-to-wire terminals accept up to #4 AWG conductors |
| Terminals marked for easy identification and fast wiring |
| Flush-mount devices fit single or two-gang outlet boxes |
| Surface mount devices are commercial grade and have concentric knockouts for 3/4 in and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable |
| Flush mounting |
| Max 30C after 50 cycles OL at 150 percent rated current |
| 3-phase |
| Fits any wallplate with 2.465 in diameter center hole |
