Leviton®

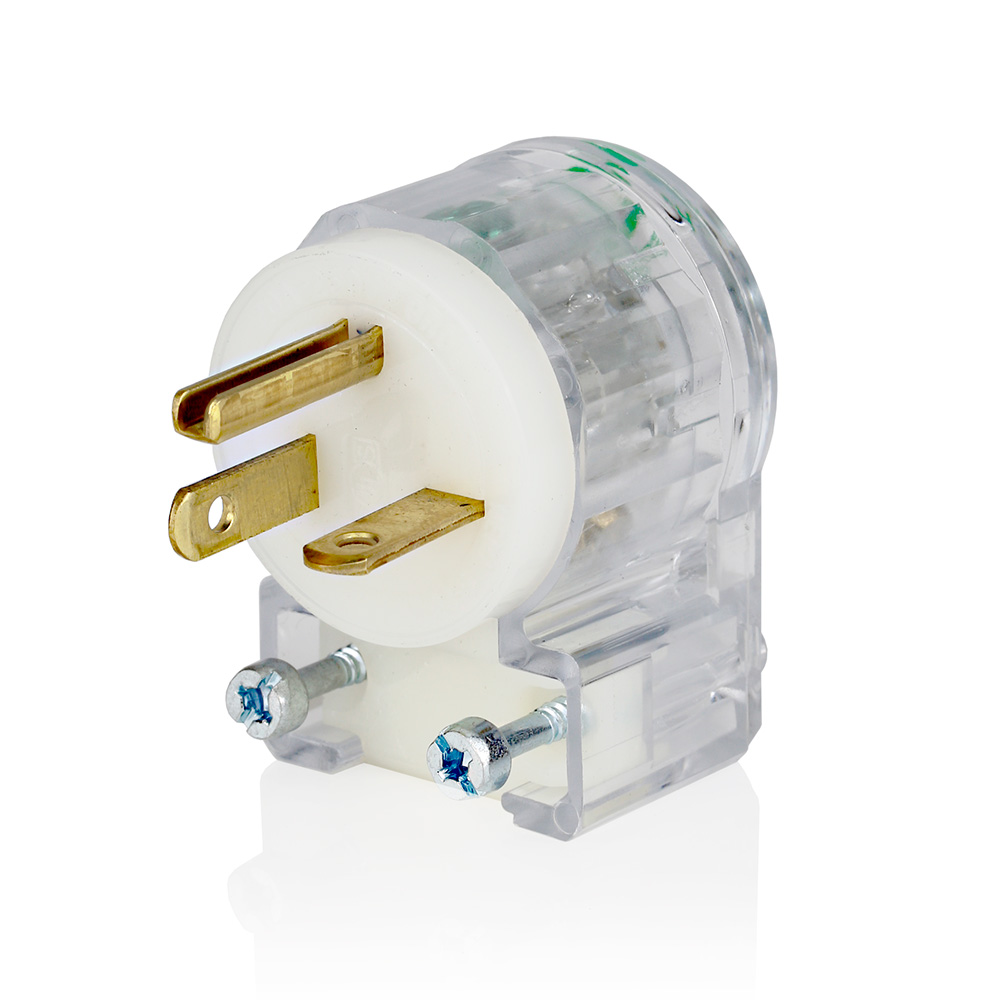

Leviton® 8415-CAT Angled Straight Blade Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Custom_Product_Images_Illustration
Leviton®
Leviton® 8415-CAT Angled Straight Blade Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
SKU569046
MFGR #8415-CAT
Your Cost: $33.52/ea
List: Leviton's Black & White line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.
Leviton's Black & White line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.
Application Hospitals ARRA Compliant C Buy American Compliant C Catalog Number 8415-CAT Cord Diameter 0.25 to 0.685 in Country of Origin UKN Currency USD Depth 1.30 in Dimensions 29 in H x 1.53 in W x 1.3 in D Environmental Conditions Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 12.2500 in Height [Metric] 3.9878 cm Length 14.7500 in Length [Metric] 12.7000 cm Material Super Tough Nylon (Body) Mounting Cable NEMA Rating 6-20P Number Of Poles 2 Size 29 H x 1.53 W x 1.30 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73NOM 057NEMA WD-1/WD-6CSA C22.2 No. 42 File No. LR406UL 498 File No. E13399Federal Specification WC596UL94 V-2 Flammability Rating Sub Brand Black & White Temperature Rating -40 to 60 °C Type STRAIGHT BLADE PLUG UNSPSC 39121402 UPC 11 07847795483 UPC 12 078477954836 Width 6.00 in Width [Metric] 15.2400 cm Wire Size 18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range) Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Black/White Number of Wires 3 Voltage Rating 250 V Hospitals Unmatched quality and performance confirmed by rigorous UL 498 testing Clearly identified by green dot Rugged construction resists impact, sunlight, chemicals and rough use All contacts are solid 1-piece brass for better conductivity Triple wipe, heavy duty power contacts set in deep pockets to resist damage Captive, color coded brass 8 AWG terminal screws Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed Power indication devices equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years Zinc plated steel assembly screws and solid brass blade and contacts 18 to 10 AWG terminal accommodation Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws Super tough nylon body Nylon cord clamp, wire module, clamp insert Solid brass blades Super tough nylon 18 - 10 AWG
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hospitals |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8415-CAT |
| Cord Diameter | 0.25 to 0.685 in |
| Country of Origin | UKN |
| Currency | USD |
| Depth | 1.30 in |
| Dimensions | 29 in H x 1.53 in W x 1.3 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C) |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 12.2500 in |
| Height [Metric] | 3.9878 cm |
| Length | 14.7500 in |
| Length [Metric] | 12.7000 cm |
| Material | Super Tough Nylon (Body) |
| Mounting | Cable |
| NEMA Rating | 6-20P |
| Number Of Poles | 2 |
| Size | 29 H x 1.53 W x 1.30 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C-73NOM 057NEMA WD-1/WD-6CSA C22.2 No. 42 File No. LR406UL 498 File No. E13399Federal Specification WC596UL94 V-2 Flammability Rating |
| Sub Brand | Black & White |
| Temperature Rating | -40 to 60 °C |
| Type | STRAIGHT BLADE PLUG |
| UNSPSC | 39121402 |
| UPC 11 | 07847795483 |
| UPC 12 | 078477954836 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Wire Size | 18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range) |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Black/White |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Hospitals |
| Unmatched quality and performance confirmed by rigorous UL 498 testing |
| Clearly identified by green dot |
| Rugged construction resists impact, sunlight, chemicals and rough use |
| All contacts are solid 1-piece brass for better conductivity |
| Triple wipe, heavy duty power contacts set in deep pockets to resist damage |
| Captive, color coded brass 8 AWG terminal screws |
| Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed |
| Power indication devices equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years |
| Zinc plated steel assembly screws and solid brass blade and contacts |
| 18 to 10 AWG terminal accommodation |
| Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws |
| Super tough nylon body |
| Nylon cord clamp, wire module, clamp insert |
| Solid brass blades |
| Super tough nylon |
| 18 - 10 AWG |
