Leviton®

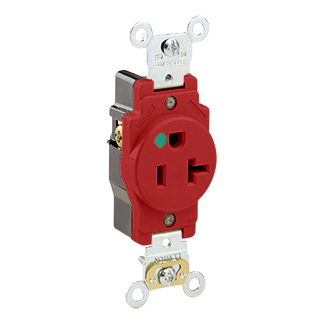

Leviton® 8310-R Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Leviton®
Leviton® 8310-R Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU72410
MFGR #8310-R
$/ea
Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8310-R Connection Back Wired;Side Wired Country of Origin UKN Currency USD Depth 16 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.31 in W x 16 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 9.2500 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Height 9.0000 in Horsepower 1 hp Length 12.0000 in Material Thermoplastic Mounting Box NEMA Rating 5-20R Number Of Poles 2 Size 46 H x 1.31 W x 16 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498HG (File E13399);RoHS Non-Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Single Receptacle UNSPSC 39121406 UPC 11 07847713324 UPC 12 078477133248 Width 1.31 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Red Number of Wires 3 Voltage Rating 125 V Commercial Impact-resistant thermoplastic nylon cover and body Smooth face does not collect dirt Four corner latches securely fasten face Extra heavy duty triple wipe, brass "T" contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Break-off tabs for easy two-circuit conversion Self grounding Phosphor bronze line contacts Plated steel grounding screw Plated brass terminal screw Nylon face, zinc-plated steel strap Brass ground clips, zinc-plated steel clamp nuts Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current Single 14 to 10 AWG wire size, 14 to 16 in pounds torque range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8310-R |
| Connection | Back Wired;Side Wired |
| Country of Origin | UKN |
| Currency | USD |
| Depth | 16 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.31 in W x 16 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 9.2500 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Height | 9.0000 in |
| Horsepower | 1 hp |
| Length | 12.0000 in |
| Material | Thermoplastic |
| Mounting | Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Size | 46 H x 1.31 W x 16 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498HG (File E13399);RoHS Non-Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Single Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847713324 |
| UPC 12 | 078477133248 |
| Width | 1.31 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Red |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Impact-resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Extra heavy duty triple wipe, brass "T" contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Break-off tabs for easy two-circuit conversion |
| Self grounding |
| Phosphor bronze line contacts |
| Plated steel grounding screw |
| Plated brass terminal screw |
| Nylon face, zinc-plated steel strap |
| Brass ground clips, zinc-plated steel clamp nuts |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| Single |
| 14 to 10 AWG wire size, 14 to 16 in pounds torque range |
