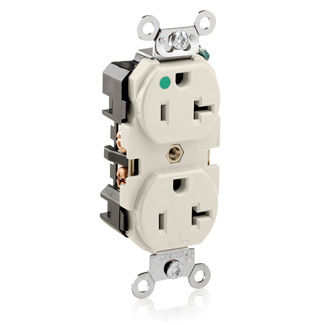

Leviton® 8300-T 1-Phase Extra Heavy Duty Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Custom_Product_Images_Illustration
Leviton® 8300-T 1-Phase Extra Heavy Duty Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
SKU458755
MFGR #8300-T
Your Cost: $6.35/ea
List: Leviton®, 8300-T, Duplex Receptacle, 1-Phase Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Light Almond, 46 in H x 1.53 in W x 1.11 in D Dimensions
Leviton®, 8300-T, Duplex Receptacle, 1-Phase Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Light Almond, 46 in H x 1.53 in W x 1.11 in D Dimensions
Application Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number 8300-T Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.53 in W x 1.11 in D Enclosure NEMA WD-1/WD-6 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 12.1400 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 8.7500 in Height [Metric] 10.4775 cm Horsepower 1 Length 12.2500 in Length [Metric] 4.7625 cm Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.53 W x 1.11 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847732162 UPC 12 078477321621 Width 1.38 in Width [Metric] 3.4925 cm Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Light Almond Number of Wires 3 Voltage Rating 125 V Commercial Applications Impact-resistant thermoplastic nylon cover and body Smooth face does not collect dirt Four corner latches securely fasten face Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Back and Side wire ground termination brass strap version Back and Side wiring options Break-off tabs for easy two-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator Nickel plate
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-T |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.53 in W x 1.11 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 12.1400 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 |
| Length | 12.2500 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.53 W x 1.11 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847732162 |
| UPC 12 | 078477321621 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Light Almond |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial Applications |
| Impact-resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Back and Side wire ground termination brass strap version |
| Back and Side wiring options |
| Break-off tabs for easy two-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator |
| Nickel plate |
