Leviton®

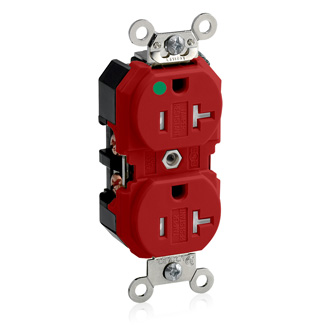

Leviton® 8300-SGR Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Leviton®
Leviton® 8300-SGR Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU72201
MFGR #8300-SGR
Your Cost: $20.08/ea
List: Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Application Hospital ARRA Compliant C Buy American Compliant C Catalog Number 8300-SGR Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.23 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.51 in W x 1.23 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Extra Heavy Duty/Hospital Gross Weight Per Pack 0.2600 lb Gross Weight per Pack Metric 0.12 Gross Weight UOM Metric kg Height 8.7500 in Horsepower 1 hp Length 12.2500 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.51 W x 1.23 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847705721 UPC 12 078477057216 Width 1.51 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Red Number of Wires 3 Voltage Rating 125 V Hospital Impact resistant thermoplastic nylon cover and body Four corner latches securely fasten face Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Back and side wire ground termination brass strap version Back and side wiring options Break-OFF tabs allow easy 2-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator Nylon face, nickel-plated brass strap Nickel plated brass ground clips, clamp nuts, yoke Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current Duplex, tamper-resistant 14 to 10 AWG wire size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hospital |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-SGR |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.23 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.51 in W x 1.23 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Extra Heavy Duty/Hospital |
| Gross Weight Per Pack | 0.2600 lb |
| Gross Weight per Pack Metric | 0.12 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Horsepower | 1 hp |
| Length | 12.2500 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.51 W x 1.23 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847705721 |
| UPC 12 | 078477057216 |
| Width | 1.51 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Red |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Hospital |
| Impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten face |
| Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Back and side wire ground termination brass strap version |
| Back and side wiring options |
| Break-OFF tabs allow easy 2-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator |
| Nylon face, nickel-plated brass strap |
| Nickel plated brass ground clips, clamp nuts, yoke |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| Duplex, tamper-resistant |
| 14 to 10 AWG wire size |
