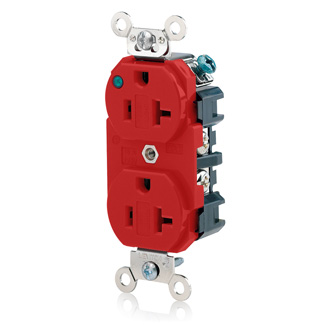

Leviton® 8300-PLR Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Custom_Product_Images_Illustration
Leviton® 8300-PLR Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU72325
MFGR #8300-PLR
Your Cost: $29.62/ea
List: Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8300-PLR Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.53 in W x 1.11 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 9.3750 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 12.0000 in Length [Metric] 4.7625 cm Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.53 W x 1.11 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847710908 UPC 12 078477109083 Width 1.38 in Width [Metric] 3.4925 cm Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Red Number of Wires 3 Voltage Rating 125 V Commercial Impact resistant thermoplastic nylon cover and body Four corner latches securely fasten face Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Back and side wire ground termination brass strap version Back and side wiring options Break-OFF tabs allow easy 2-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator Nylon face, nickel-plated brass strap Nickel plated brass ground clips, zinc-plated steel clamp nuts, nickel-plated brass yoke Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current Duplex, Power Indication 14 to 10 AWG wire size, 14 to 16 in pounds torque range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-PLR |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.53 in W x 1.11 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 9.3750 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 12.0000 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.53 W x 1.11 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847710908 |
| UPC 12 | 078477109083 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Red |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten face |
| Extra heavy duty triple-wipe, brass "T" contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Back and side wire ground termination brass strap version |
| Back and side wiring options |
| Break-OFF tabs allow easy 2-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Power Indication™ provides permanent "green dot" lens with 100000 hr LED status indicator |
| Nylon face, nickel-plated brass strap |
| Nickel plated brass ground clips, zinc-plated steel clamp nuts, nickel-plated brass yoke |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| Duplex, Power Indication |
| 14 to 10 AWG wire size, 14 to 16 in pounds torque range |
