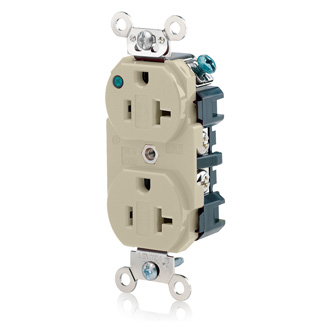

Leviton® 8300-PLI Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Leviton®
Leviton® 8300-PLI Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU72324
MFGR #8300-PLI
Your Cost: $29.62/ea
List: Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Leviton offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8300-PLI Connection Back and Side Wired in Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) V Environmental Conditions Flammability (Rated V-2 per UL94) V EU RoHS Indicator C Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 9.3750 in Height [Metric] 10.4775 cm Length 12.0000 in Length [Metric] 4.7625 cm Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Phase Size 46 H x 1.53 W x 1.11 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Standards NEMA WD-6, ANSI C-73, UL 498HG E13399 Listed, UL Federal Specification WC-596 E13399, CSA C22.2 No 42 152105, NOM 057 Approved Temperature Rating -40 to +60 °C Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847710907 UPC 12 078477109076 Width 1.38 in Width [Metric] 3.4925 cm Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 125 V Commercial Impact-resistant thermoplastic nylon cover and body Smooth face does not collect dirt Four corner latches securely fasten face Extra heavy duty triple wipe, brass "T" contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Break-off tabs for easy two-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back-wiring clamps for superior contact Power Indication provides permanent "green dot" lens with 100,000 hour LED status indicator Wire lead receptacles for fast and easy installation Self grounding Nickel plated brass triple wipe 0.031/0.040 thick line contacts Nickel plated brass 8-32 grounding screw Nickel plated brass 10-32 terminal screw Nylon face, nickel-plated brass strap Nickel plated brass ground clips, zinc-plated steel clamp nuts, nickel-plated brass yoke Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current Duplex, Power Indication 14 to 10 AWG wire size, 14 to 16 in pounds torque range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-PLI |
| Connection | Back and Side Wired in |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) V |
| Environmental Conditions | Flammability (Rated V-2 per UL94) V |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 9.3750 in |
| Height [Metric] | 10.4775 cm |
| Length | 12.0000 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 Phase |
| Size | 46 H x 1.53 W x 1.11 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Standards | NEMA WD-6, ANSI C-73, UL 498HG E13399 Listed, UL Federal Specification WC-596 E13399, CSA C22.2 No 42 152105, NOM 057 Approved |
| Temperature Rating | -40 to +60 °C |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847710907 |
| UPC 12 | 078477109076 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Impact-resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Extra heavy duty triple wipe, brass "T" contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Break-off tabs for easy two-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back-wiring clamps for superior contact |
| Power Indication provides permanent "green dot" lens with 100,000 hour LED status indicator |
| Wire lead receptacles for fast and easy installation |
| Self grounding |
| Nickel plated brass triple wipe 0.031/0.040 thick line contacts |
| Nickel plated brass 8-32 grounding screw |
| Nickel plated brass 10-32 terminal screw |
| Nylon face, nickel-plated brass strap |
| Nickel plated brass ground clips, zinc-plated steel clamp nuts, nickel-plated brass yoke |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| Duplex, Power Indication |
| 14 to 10 AWG wire size, 14 to 16 in pounds torque range |
