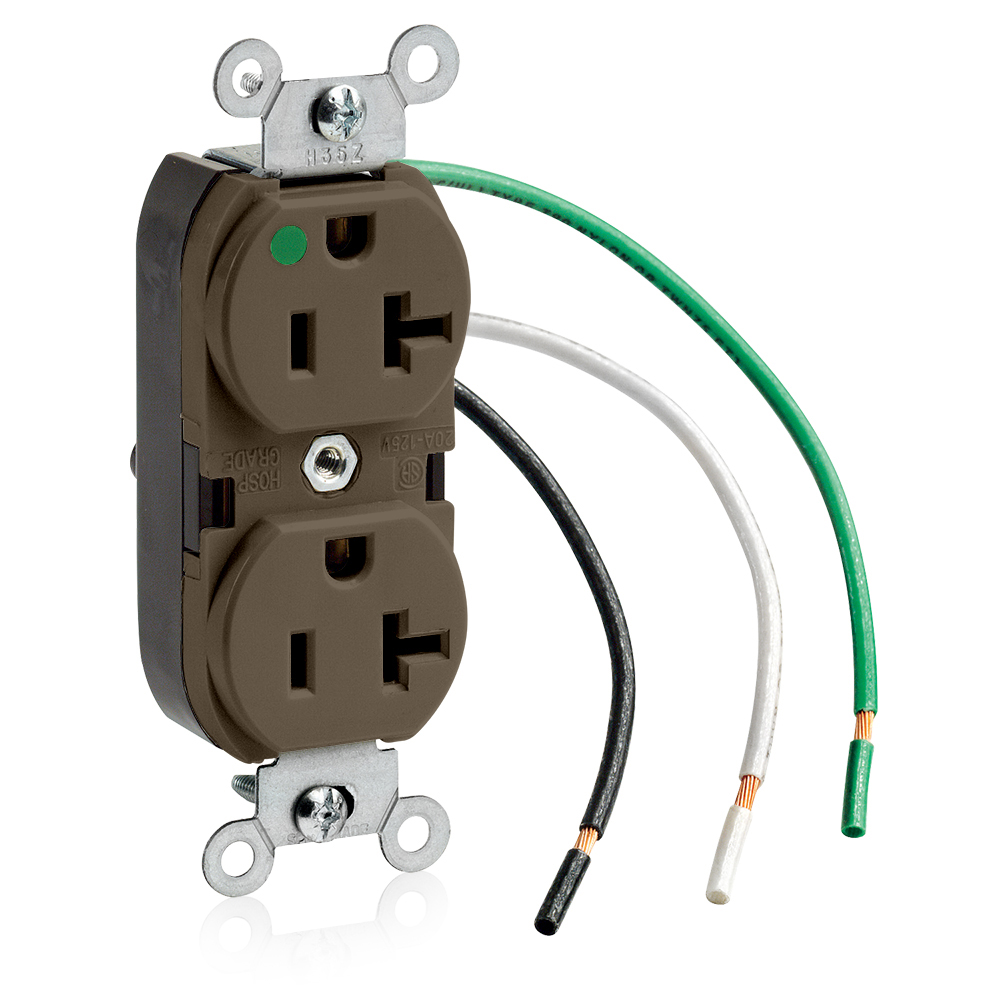

Leviton® 8300-L 1-Phase Duplex Heavy Duty Grounding Slim Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton® 8300-L 1-Phase Duplex Heavy Duty Grounding Slim Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU1129068
MFGR #8300-L
Your Cost: $33.23/ea
Leviton®, 8300-L, 1-Phase Duplex Heavy Duty Grounding Slim Straight Blade Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Lead Wire Terminal, Thermoplastic, Brown, 4.06 in H x 1.53 in W x 1.11 in D Dimensions
Leviton®, 8300-L, 1-Phase Duplex Heavy Duty Grounding Slim Straight Blade Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Lead Wire Terminal, Thermoplastic, Brown, 4.06 in H x 1.53 in W x 1.11 in D Dimensions
Application Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number 8300-L Connection Wire Lead Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Gross Weight Per Pack 21.8000 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 10.0000 in Length 20.0000 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399) Temperature Rating -40 to +60 DEG C Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847728403 UPC 12 078477284032 Width 1.53 in Wire Size 14-10 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 AMP Number of Wires 3 Voltage Rating 125 Commercial Applications Impact resistant thermoplastic nylon cover and body Four corner latches securely fasten face Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Back and side wire ground termination brass strap version Back and side wiring options Break-OFF tabs allow easy 2-circuit conversion Apron barrier to prevent accidental contact between terminal screw heads and metal box Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity Wire lead receptacles for fast and easy installation Smooth face
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-L |
| Connection | Wire Lead |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 21.8000 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 10.0000 in |
| Length | 20.0000 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399) |
| Temperature Rating | -40 to +60 DEG C |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847728403 |
| UPC 12 | 078477284032 |
| Width | 1.53 in |
| Wire Size | 14-10 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 AMP |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Commercial Applications |
| Impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten face |
| Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Back and side wire ground termination brass strap version |
| Back and side wiring options |
| Break-OFF tabs allow easy 2-circuit conversion |
| Apron barrier to prevent accidental contact between terminal screw heads and metal box |
| Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity |
| Wire lead receptacles for fast and easy installation |
| Smooth face |
