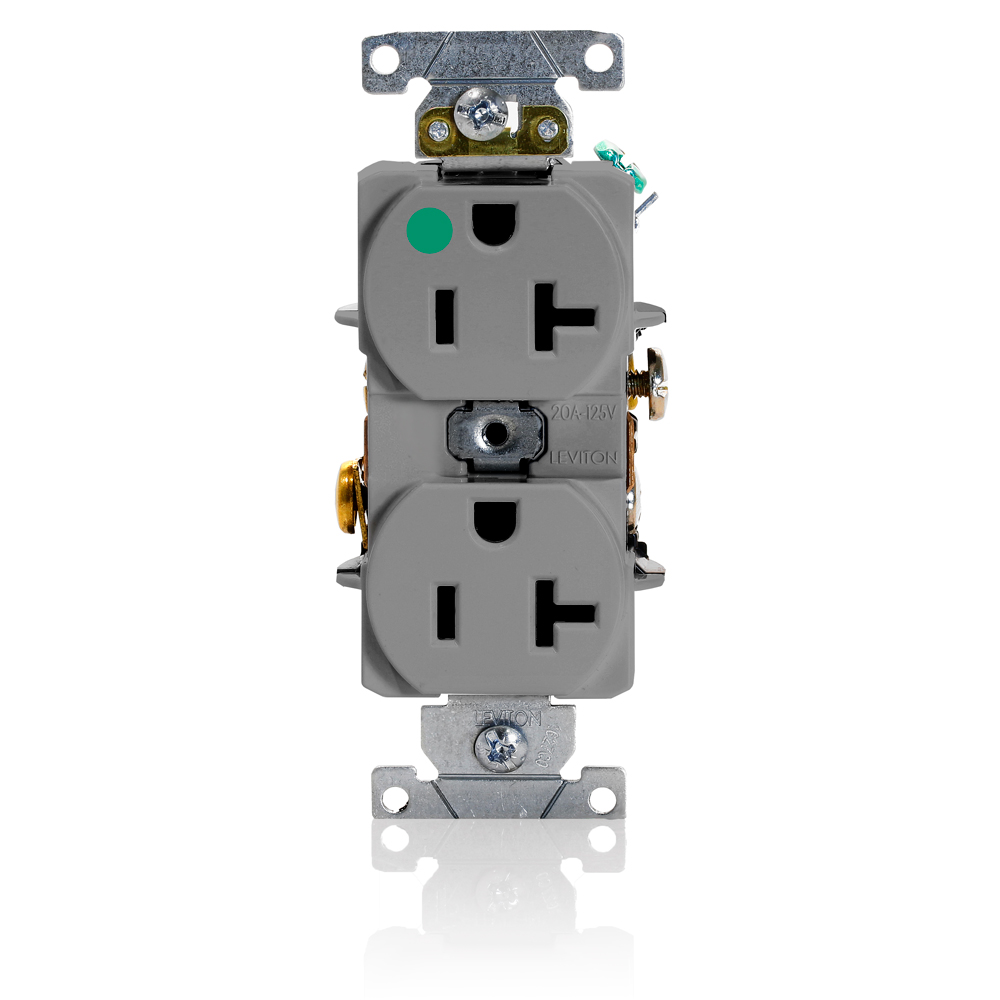

Leviton® 8300-HGY Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Custom_Product_Images_Illustration
Leviton® 8300-HGY Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
SKU73097
MFGR #8300-HGY
Your Cost: $6.46/ea
List: Leviton® offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Leviton® offers a large selection of 15 and 20 Amp devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8300-HGY Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.18 in Dielectric Strength 2000 (Min.) V Dimensions 4.06 in H x 1.51 in W x 1.18 in D Enclosure NEMA WD-1/WD-6 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.5000 in Horsepower 1 hp Length 12.7500 in Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.51 W x 1.18 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI (C-73)CSA C22.2 No. 42 File No. 152105NOM CertifiedUL 498HG File No. E13399UL Federal Specification W-C-596 E13399UL94 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847781892 UPC 12 078477818923 Width 1.51 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Gray Number of Wires 3 Voltage Rating 125 V Commercial Impact resistant thermoplastic nylon cover and body Smooth face does not collect dirt Four corner latches securely fasten face Extra heavy duty triple wipe, brass "T" contacts for superior contact and conductivity High performance brass #10-32 terminal screws to reduce conductor oxidation Break-off tabs for easy two-circuit conversion Self grounding Phosphor bronze line contacts Brass grounding screw Brass terminal screw Nylon face, galvanized steel with riveted ground contacts strap Brass ground clips, zinc-plated steel clamp nuts Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability Max 30C after 250 cycles OL at 200 percent rated current Duplex, slim design 14 to 10 AWG wire size, 14 to 16 in pounds torque range
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300-HGY |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.18 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 4.06 in H x 1.51 in W x 1.18 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.5000 in |
| Horsepower | 1 hp |
| Length | 12.7500 in |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.51 W x 1.18 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI (C-73)CSA C22.2 No. 42 File No. 152105NOM CertifiedUL 498HG File No. E13399UL Federal Specification W-C-596 E13399UL94 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847781892 |
| UPC 12 | 078477818923 |
| Width | 1.51 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Gray |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Impact resistant thermoplastic nylon cover and body |
| Smooth face does not collect dirt |
| Four corner latches securely fasten face |
| Extra heavy duty triple wipe, brass "T" contacts for superior contact and conductivity |
| High performance brass #10-32 terminal screws to reduce conductor oxidation |
| Break-off tabs for easy two-circuit conversion |
| Self grounding |
| Phosphor bronze line contacts |
| Brass grounding screw |
| Brass terminal screw |
| Nylon face, galvanized steel with riveted ground contacts strap |
| Brass ground clips, zinc-plated steel clamp nuts |
| Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability |
| Max 30C after 250 cycles OL at 200 percent rated current |
| Duplex, slim design |
| 14 to 10 AWG wire size, 14 to 16 in pounds torque range |
