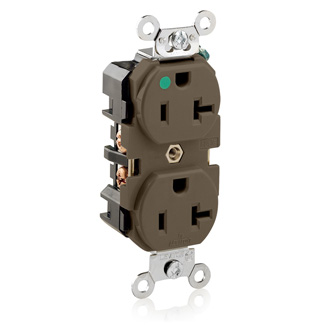

Leviton® 8300 Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton® 8300 Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU8447
MFGR #8300
Your Cost: $6.11/ea
List: All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8300 Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.11 in Dielectric Strength 2000 (Min.) V Dimensions 46 in H x 1.53 in W x 1.11 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 8.7500 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 12.2500 in Length [Metric] 4.7625 cm Material Thermoplastic Mounting Wall Box NEMA Rating 5-20R Number Of Poles 2 Phase 1 Size 46 H x 1.53 W x 1.11 D in Standard NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399);CSA Certified;UL Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL ListedCSA CertifiedUL94 V-2 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847781861 UPC 12 078477818619 Width 1.38 in Width [Metric] 3.4925 cm Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Brown Number of Wires 3 Voltage Rating 125 V Commercial Wallbox mounting Withstands 2000 VAC per UL498 dielectric voltage Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise Single phase, full rated current limiting V-2 per UL94 flammability rated Nylon face and body material Nickel-plated brass ground clips Plated brass grounding screw 0.04 thick nickel-plated brass triple-wipe line contacts Nickel-plated brass strap material Nickel-plated brass 10 to 32 terminal screws, yoke Markings are permanently marked on device product ID 14 to 10 AWG terminal accommodation Brass-hot, green-ground, silver-neutral terminal 14 to 16 in-lb torque rating 8 hole feed-thru termination
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8300 |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.11 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 46 in H x 1.53 in W x 1.11 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 8.7500 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 12.2500 in |
| Length [Metric] | 4.7625 cm |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.53 W x 1.11 D in |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399);CSA Certified;UL Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73NOM 057CSA C22.2 No. 42 File No. 152105UL Federal Specification W-C-596 File No. E13399UL 498HG File No. E13399UL ListedCSA CertifiedUL94 V-2 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847781861 |
| UPC 12 | 078477818619 |
| Width | 1.38 in |
| Width [Metric] | 3.4925 cm |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Wallbox mounting |
| Withstands 2000 VAC per UL498 dielectric voltage |
| Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise |
| Single phase, full rated current limiting |
| V-2 per UL94 flammability rated |
| Nylon face and body material |
| Nickel-plated brass ground clips |
| Plated brass grounding screw |
| 0.04 thick nickel-plated brass triple-wipe line contacts |
| Nickel-plated brass strap material |
| Nickel-plated brass 10 to 32 terminal screws, yoke |
| Markings are permanently marked on device product ID |
| 14 to 10 AWG terminal accommodation |
| Brass-hot, green-ground, silver-neutral terminal |
| 14 to 16 in-lb torque rating |
| 8 hole feed-thru termination |
