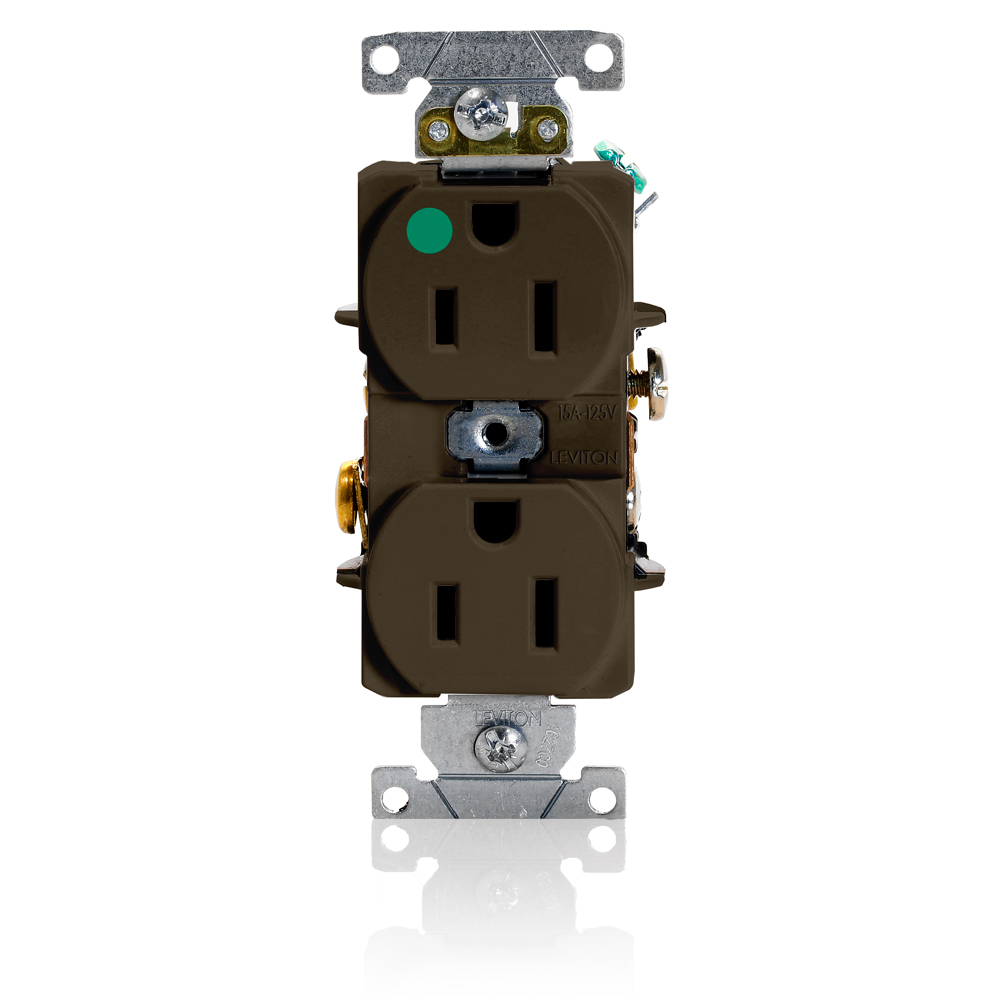

Leviton® 8200-H Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Custom_Product_Images_Illustration
Leviton® 8200-H Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU8451
MFGR #8200-H
$/ea
All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number 8200-H Color Family Brown Connection Back and Side Wired Country of Origin MX Currency USD Depth 1.18 in Dielectric Strength 2000 (Min.) V Dimensions 4.06 in H x 1.51 in W x 1.18 in D Enclosure NEMA WD-1/WD-6 Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 11.0000 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 8.0000 in Horsepower 1/2 hp Length 13.0000 in Material Thermoplastic Mounting Wallbox NEMA Rating 5-15R Number Of Poles 2 Phase 1 Size 46 H x 1.51 W x 1.18 D in Standard ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI (C-73)CSA C22.2 No. 42 File No. 152105NOM CertifiedUL Federal Specification WC-596 File No. E13399UL 498 File No. E13399UL94 Flammability Rating Temperature Rating -40 to +60 °C Terminal Type Back/Side Wired Type Straight Blade;Duplex Outlet UNSPSC 39121406 UPC 11 07847781884 UPC 12 078477818848 Width 1.51 in Wire Size 14-10 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color Brown Number of Wires 3 Voltage Rating 125 V Commercial Impact resistant thermoplastic nylon cover and body Self-grounding 1-phase Heavy duty 2000 V (min) dielectric strength UL 94 V-2 flammability rating Hospital grade Nickel plated brass strap 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 8200-H |
| Color Family | Brown |
| Connection | Back and Side Wired |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.18 in |
| Dielectric Strength | 2000 (Min.) V |
| Dimensions | 4.06 in H x 1.51 in W x 1.18 in D |
| Enclosure | NEMA WD-1/WD-6 |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 11.0000 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 8.0000 in |
| Horsepower | 1/2 hp |
| Length | 13.0000 in |
| Material | Thermoplastic |
| Mounting | Wallbox |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Size | 46 H x 1.51 W x 1.18 D in |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);RoHS Compliant;UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI (C-73)CSA C22.2 No. 42 File No. 152105NOM CertifiedUL Federal Specification WC-596 File No. E13399UL 498 File No. E13399UL94 Flammability Rating |
| Temperature Rating | -40 to +60 °C |
| Terminal Type | Back/Side Wired |
| Type | Straight Blade;Duplex Outlet |
| UNSPSC | 39121406 |
| UPC 11 | 07847781884 |
| UPC 12 | 078477818848 |
| Width | 1.51 in |
| Wire Size | 14-10 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | Brown |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Commercial |
| Impact resistant thermoplastic nylon cover and body |
| Self-grounding |
| 1-phase |
| Heavy duty |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Hospital grade |
| Nickel plated brass strap |
| 14 - 10 AWG |
