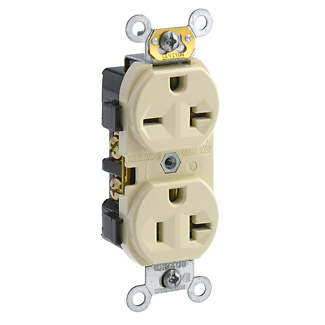

Leviton® 5842-I Straight Blade Duplex Receptacle, 125/250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Straight Blade Receptacles
72533
MFG #: 5842-I
Leviton®
21.39000
/ ea
Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- http://www.leviton.com(Seller Home Page URL)
- Install Instructions URL - ID-INS-5842-I.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - ID-SPE-v1-5842-I.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - ProductDetail.jsp?partnumber=5842-I§ion=42416&minisite=10251(Spec Sheet URL)
- Tech Drawing URL - 10962_0SYXT13G9LM4OVCU.jpg(Tech Drawing URL)
- Applications
- Features
| Commercial |
| Wallbox mounting |
| Self-grounding |
| 1-phase |
| Heavy duty |
| Narrow body |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Zinc plated steel strap |
| 1 hp at 125 V, 2 hp at 250 V |
| 14 - 10 AWG |
