Leviton®

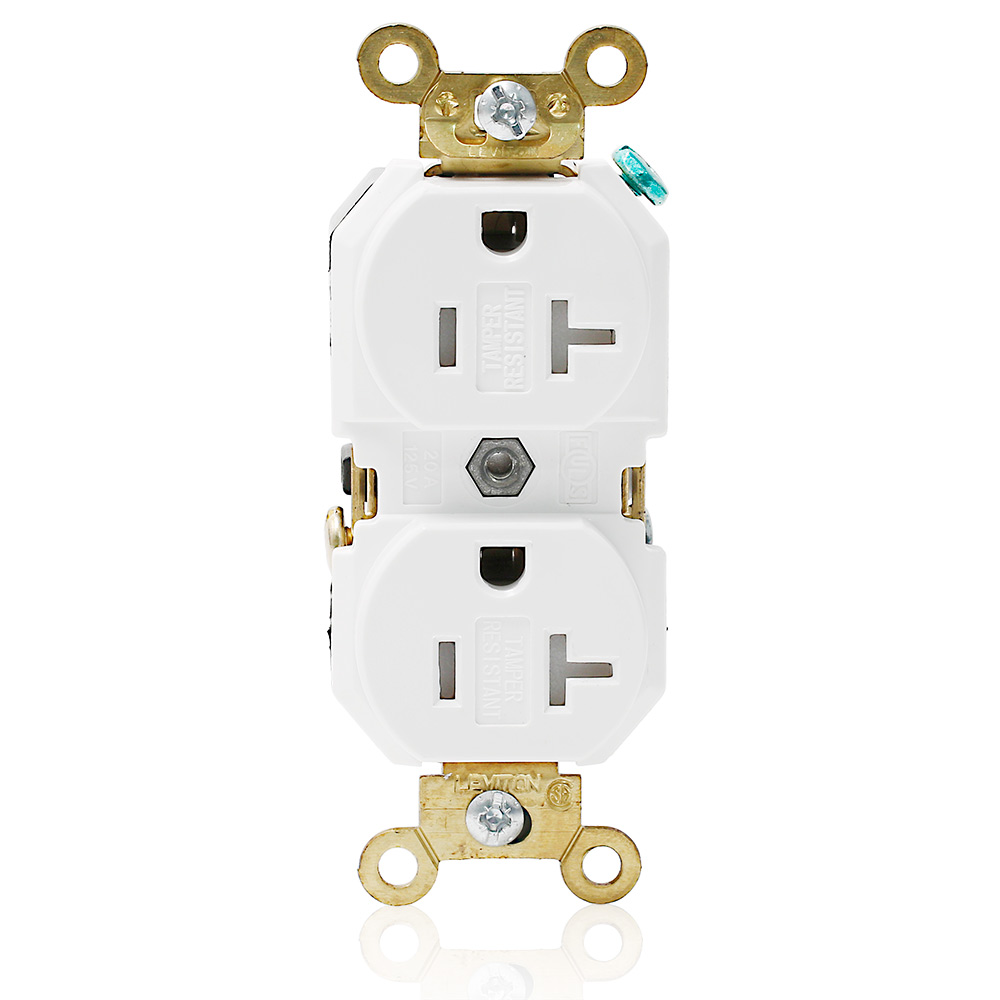

Leviton® 5362-SGW Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® 5362-SGW Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU841381
MFGR #5362-SGW
Your Cost: $27.97/ea
List: Leviton® line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Leviton® line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Application Hospital ARRA Compliant C Buy American Compliant C Catalog Number 5362-SGW Country of Origin MX Currency USD Dimensions 4.06 in H x 1.53 in W x 1.27 in D EU RoHS Indicator C Grade Hospital Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 9.3750 in Height [Metric] 10.4775 cm Horsepower 1 hp Length 12.0000 in Material Nylon NEMA Rating NEMA 5-20R Number Of Poles 2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73CSA C22.2 No. 42Federal Specification W-C 596UL 498 Temperature Rating -40 to 75 °C Terminal Type Back/Side Wired Type Duplex Receptacle UNSPSC 39121406 UPC 11 07847786872 UPC 12 078477868720 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 125 VAC Hospital Tamper-Resistant Self-grounding Tamper resistant 1-phase 2000 V (min) dielectric strength UL 94 V-2 flammability rating Brass strap Heavy duty Back and side 8 hole feed-thru wired
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Hospital |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 5362-SGW |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.06 in H x 1.53 in W x 1.27 in D |
| EU RoHS Indicator | C |
| Grade | Hospital |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 9.3750 in |
| Height [Metric] | 10.4775 cm |
| Horsepower | 1 hp |
| Length | 12.0000 in |
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA WD1/WD6ANSI C73CSA C22.2 No. 42Federal Specification W-C 596UL 498 |
| Temperature Rating | -40 to 75 °C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Receptacle |
| UNSPSC | 39121406 |
| UPC 11 | 07847786872 |
| UPC 12 | 078477868720 |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Hospital |
| Tamper-Resistant |
| Self-grounding |
| Tamper resistant |
| 1-phase |
| 2000 V (min) dielectric strength |
| UL 94 V-2 flammability rating |
| Brass strap |
| Heavy duty |
| Back and side 8 hole feed-thru wired |
